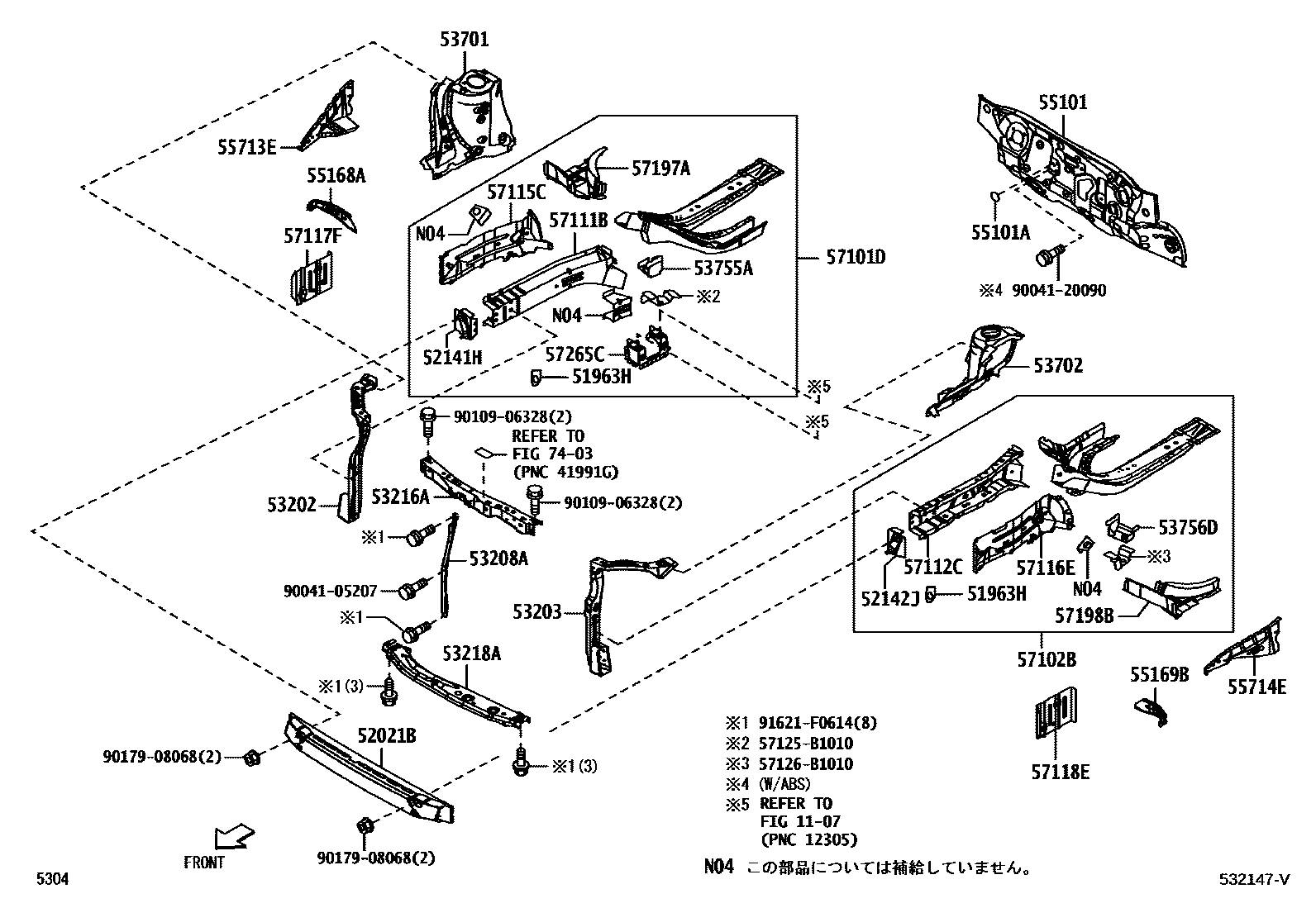

FRONT FENDER APRON & DASH PANEL
1107
51963HHOOK, TRANSPORT W/REINFORCEMENT
52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53756DBRACKET, BRAKE ACTUATOR MOUNTING
55101APLUG, HOLE, NO.1(FOR DASH PANEL)
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55713EPANEL, COWL TOP SIDE, RH
55714EPANEL, COWL TOP SIDE, LH
57111BMEMBER, FRONT SIDE, RH
57112CMEMBER, FRONT SIDE, LH
57115CPLATE, FRONT SIDE MEMBER, OUTER, RH
57116EPLATE, FRONT SIDE MEMBER, OUTER, LH
57117FPLATE, FRONT SIDE MEMBER, NO.2 RH
57118EPLATE, FRONT SIDE MEMBER, NO.2, LH
sub57118-B1050
57197ABOX, TORQUE, FRONT RH
57198BBOX, TORQUE, FRONT, LH
57265CBRACKET, ENGINE MOUNTING, RH
7403
57125B1010BRACKET, FRONT SIDE MEMBER, RH
main57125-B1010
57126B1010BRACKET, FRONT SIDE MEMBER, LH
main57126-B1010
9004105207
main90041-05207
9004120090
main90041-20090
9010906328
main90109-06328
9017908068
main90179-08068
91621F0614
main91621-F0614
39 parts on this diagram · 1 diagram in section
