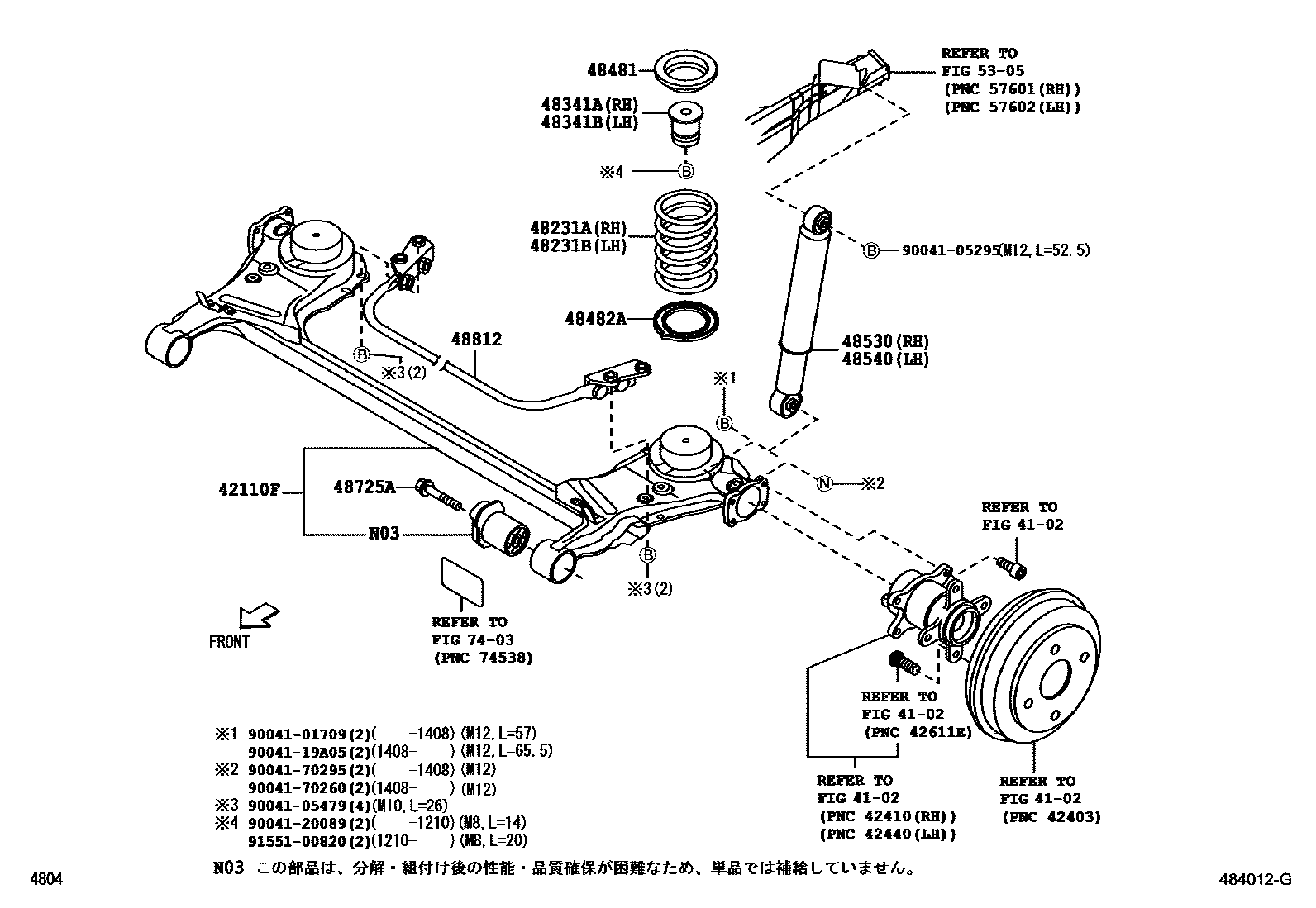

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

4102

42110FBEAM ASSY, REAR AXLE

main48710-B1050iQNC20,21200601-200809

48231ASPRING, COIL, REAR RH

main48231-B1040iQNC20,21200601-200809

main48231-B1060iQNC25200601-201409

48231BSPRING, COIL, REAR LH

main48231-B1040iQNC20,21200601-200809

main48231-B1060iQNC25200601-201409

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-B1010iQNC20,21200601-200809

main48341-B1020iQNC25200601-201409

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-B1010iQNC20,21200601-200809

main48341-B1020iQNC25200601-201409

48481SEAT, REAR SPRING, UPPER

main48481-B2010iQNC20,21200601-201409

48482ASEAT, REAR SPRING, LOWER

main48482-B1010iQNC20,21200601-200903

sub48482-B1040

main48482-B1040iQNC20,21200904

sub48482-B1041

main48482-B2020iQNC25200601-201409

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-B1050iQNC20,21200601-200710

sub48531-B1051

main48531-B1051iQNC20,21200711-200811

sub48531-B1052

main48531-B1052iQNC20,21200812-200902

sub48531-B1053

main48531-B1053iQNC20,21200903-201406

sub48531-B1054

main48531-B1054iQNC20,21201407-201409

main48531-B1064iQNC20,21201409-201510

sub48531-B1065

main48531-B1065iQNC20,21201511

main48531-B1070iQNC25200601-200710

sub48531-B1071

main48531-B1071iQNC25200711-200811

sub48531-B1072

main48531-B1072iQNC25200812-200902

sub48531-B1073

main48531-B1073iQNC25200903-201406

sub48531-B1074

main48531-B1074iQNC25201407-201409

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-B1050iQNC20,21200601-200710

sub48531-B1051

main48531-B1051iQNC20,21200711-200811

sub48531-B1052

main48531-B1052iQNC20,21200812-200902

sub48531-B1053

main48531-B1053iQNC20,21200903-201406

sub48531-B1054

main48531-B1054iQNC20,21201407-201409

main48531-B1064iQNC20,21201409-201510

sub48531-B1065

main48531-B1065iQNC20,21201511

main48531-B1070iQNC25200601-200710

sub48531-B1071

main48531-B1071iQNC25200711-200811

sub48531-B1072

main48531-B1072iQNC25200812-200902

sub48531-B1073

main48531-B1073iQNC25200903-201406

sub48531-B1074

main48531-B1074iQNC25201407-201409

48725ABOLT(FOR LOWER CONTROL ARM)

main48718-B2010iQNC20,21200601-200809

48812BAR, STABILIZER, REAR

main48083-B1020iQNC20,21200601-200809

main48812-B1030iQNC25200601-201409

5305

7403

9004101709

main90041-01709

9004105295

main90041-05295

9004105479

main90041-05479

9004119A05

main90041-19A05

9004120089

main90041-20089

9004170260

main90041-70260

9004170295

main90041-70295

9155100820

main91551-00820

22 parts on this diagram · 2 diagrams in section
