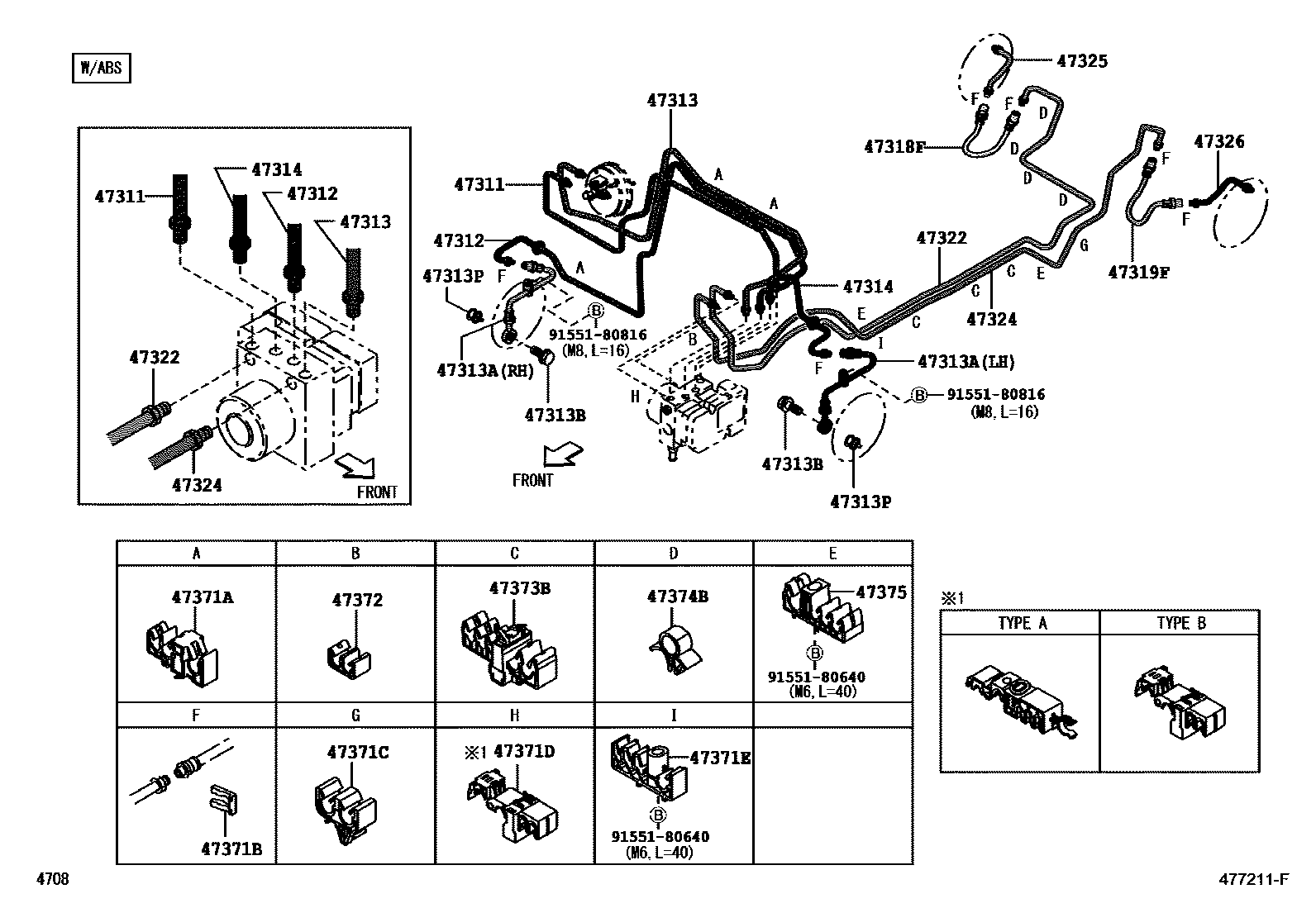

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47322TUBE, REAR BRAKE, NO.2
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371ECLAMP, BRAKE TUBE, NO.9
9155180640
main91551-80640
9155180816
main91551-80816
24 parts on this diagram · 2 diagrams in section
