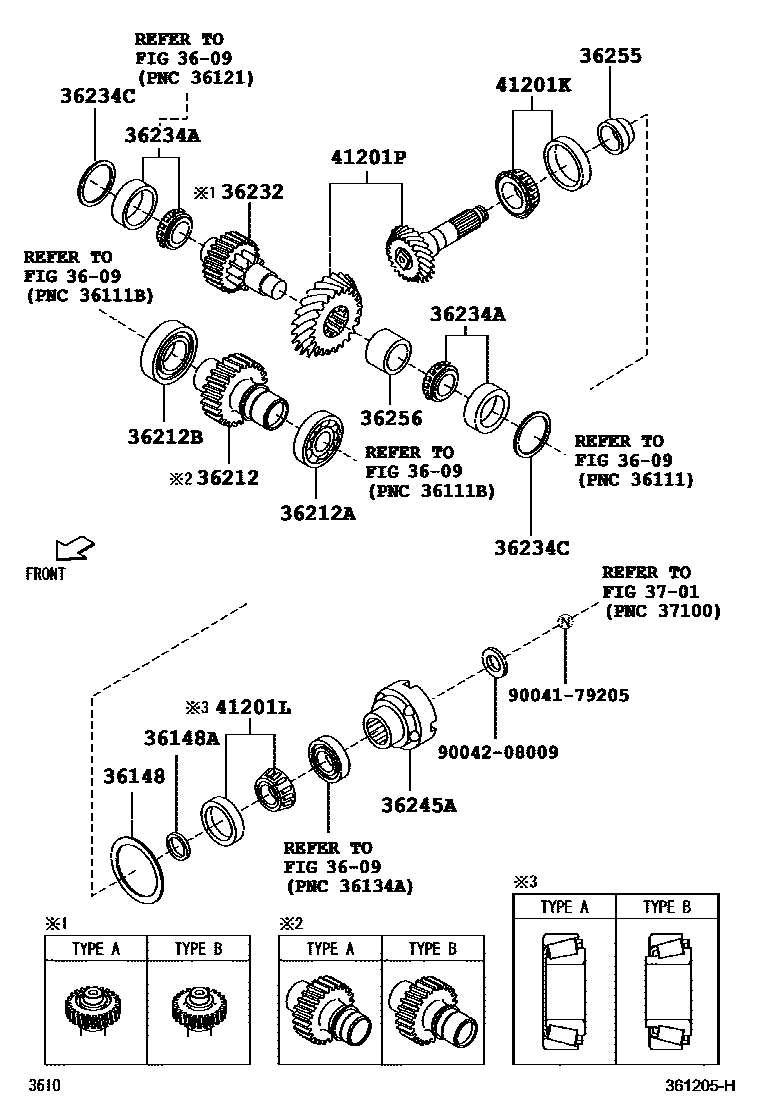

TRANSFER GEAR
3609
36148SHIM, PINION BEARING CAGE
36148ASHIM, TRANSFER PINION BEARING CAGE
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234CSPACER (FOR TRANSFER OUTPUT FRONT SHAFT)
36245AFLANGE, TRANSFER OUTPUT SHAFT
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
3701
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
9004179205
main90041-79205
9004208009
main90042-08009
18 parts on this diagram · 1 diagram in section
