VACUUM PIPING

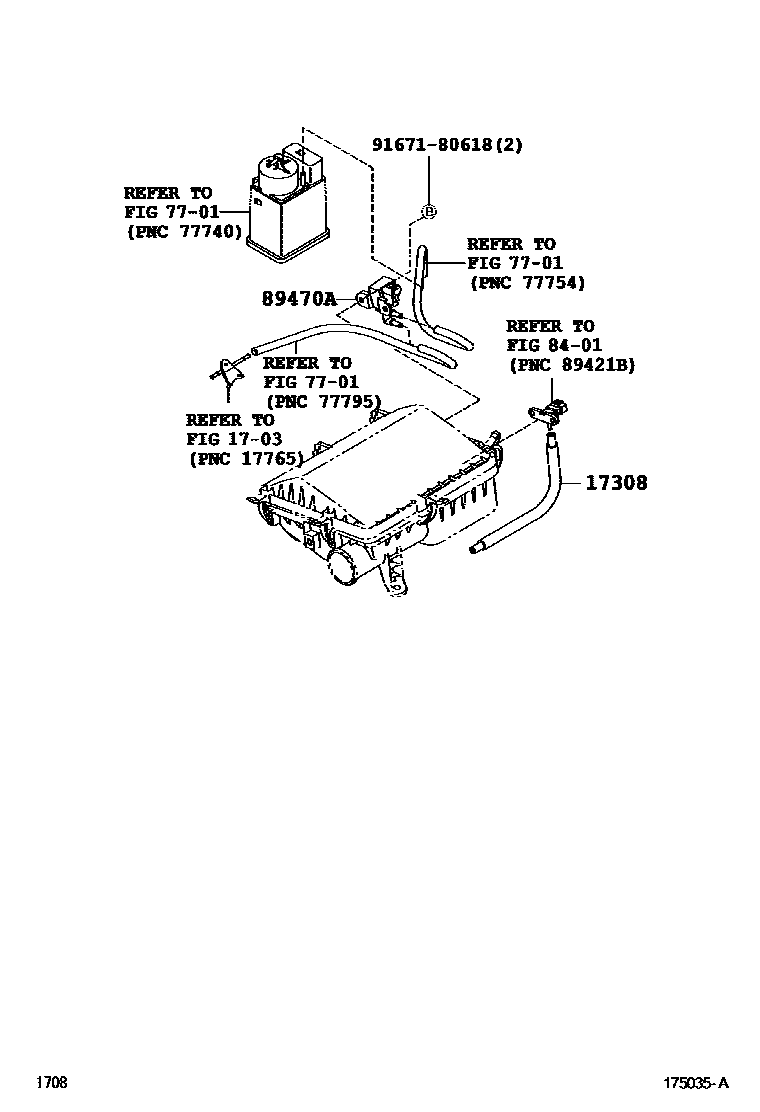

Parts diagram

1703

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-B1010i200601-201409

7701

8401

89470AVALVE ASSY, VACUUM SWITCHING W/BRACKET

main89470-B1020i200601-201409

9167180618

main91671-80618

6 parts on this diagram · 1 diagram in section
