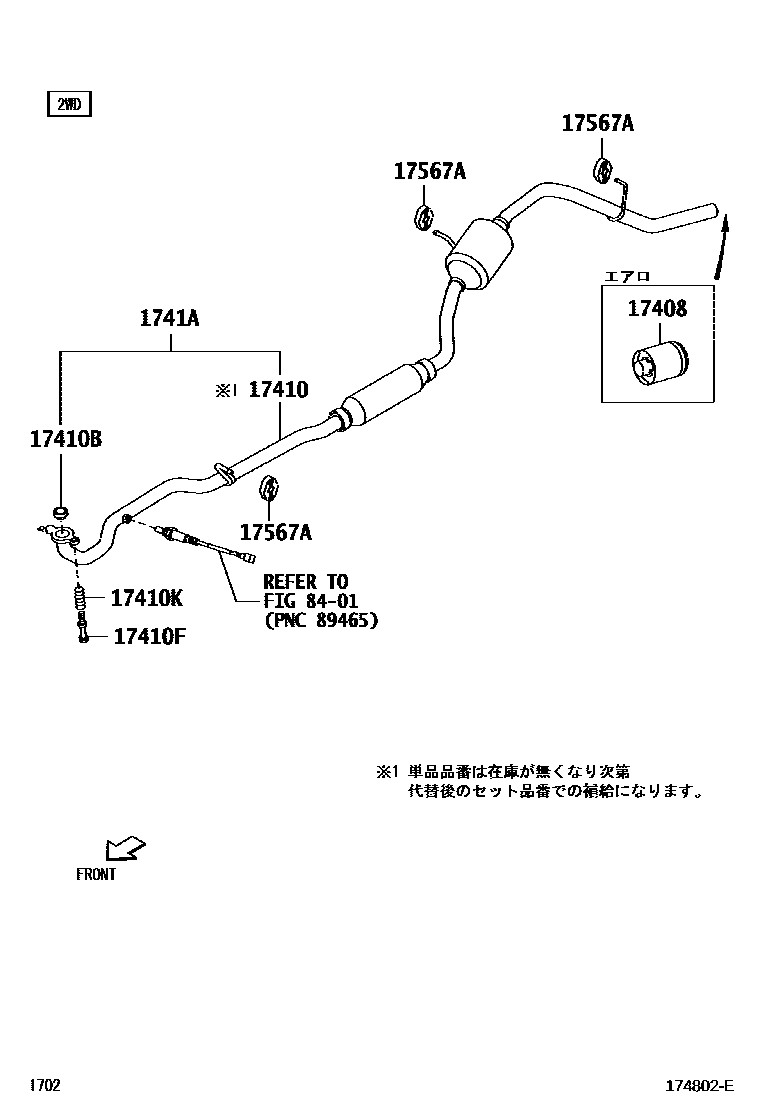

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-B1020

17410PIPE ASSY, EXHAUST, FRONT

main17410-B1110i3SZVE..QNC21200601-201002

sub17410-B1111

main17410-B1111i3SZVE..QNC21201003-201607

sub17410-B9700

main17410-B1130iK3VE..QNC20200601-201002

sub17410-B1131

main17410-B1131iK3VE..QNC20201003-201607

sub17410-B9710

main17410-B1150iK3VE..QNC25200601-201002

sub17410-B1151

main17410-B1151iK3VE..QNC25201003-201409

sub17410-B9720

17410BGASKET, EXHAUST PIPE

main17451-B1030iK3VE,3SZVE..QNC2#200601-200904

sub17451-B1031

main17451-B1031iK3VE..QNC25200905-201409

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main17569-97201iK3VE..QNC25200601-201409

17410KSPRING, EXHAUST PIPE

main17152-97201iK3VE,3SZVE..QNC20,21200609-201409

main17152-B1010iK3VE,3SZVE..QNC2#200601-200608

1741APIPE SET, EXHAUST

main17410-B9700i3SZVE..QNC21200601-201607

main17410-B9710iK3VE..QNC20200601-201607

main17410-B9720iK3VE..QNC25200601-201409

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-87210iK3VE,3SZVE..QNC2#200601-200809

sub17567-B1010

main17567-B2010iK3VE..QNC25200809-201602

main17567-B2020iK3VE,3SZVE..QNC20,21201603

8401

8 parts on this diagram · 4 diagrams in section
