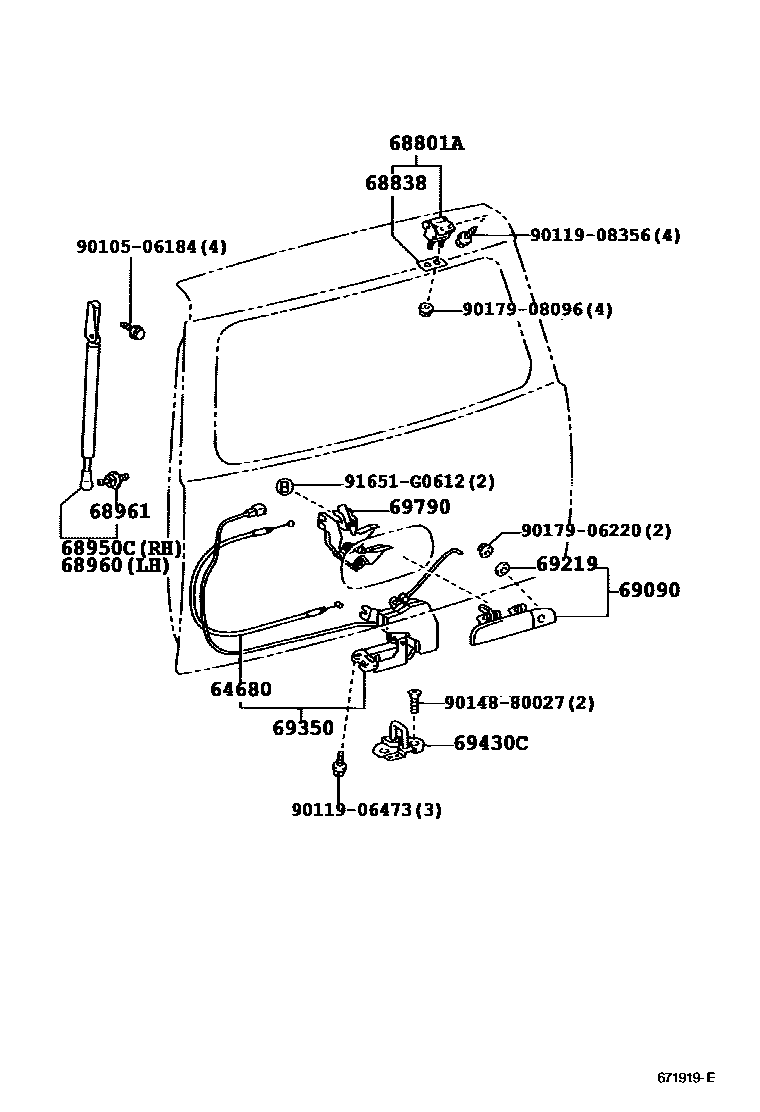

BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68838PAD, BACK DOOR HINGE, NO.1
�������P�D�U
�������P�D�U
�������Q�D�O
�������Q�D�O
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69090HANDLE ASSY, BACK DOOR, OUTSIDE
���������������� *(C),*(D),WHITE PEARL,064
���
�����������*(E)
69219SEAL, BACK DOOR OUTSIDE HANDLE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69790CONTROL ASSY, BACK DOOR LOCK
9010506184
9011906473
9011908356
9014880027
9017906220
9017908096
91651G0612
19 parts on this diagram · 3 diagrams in section
