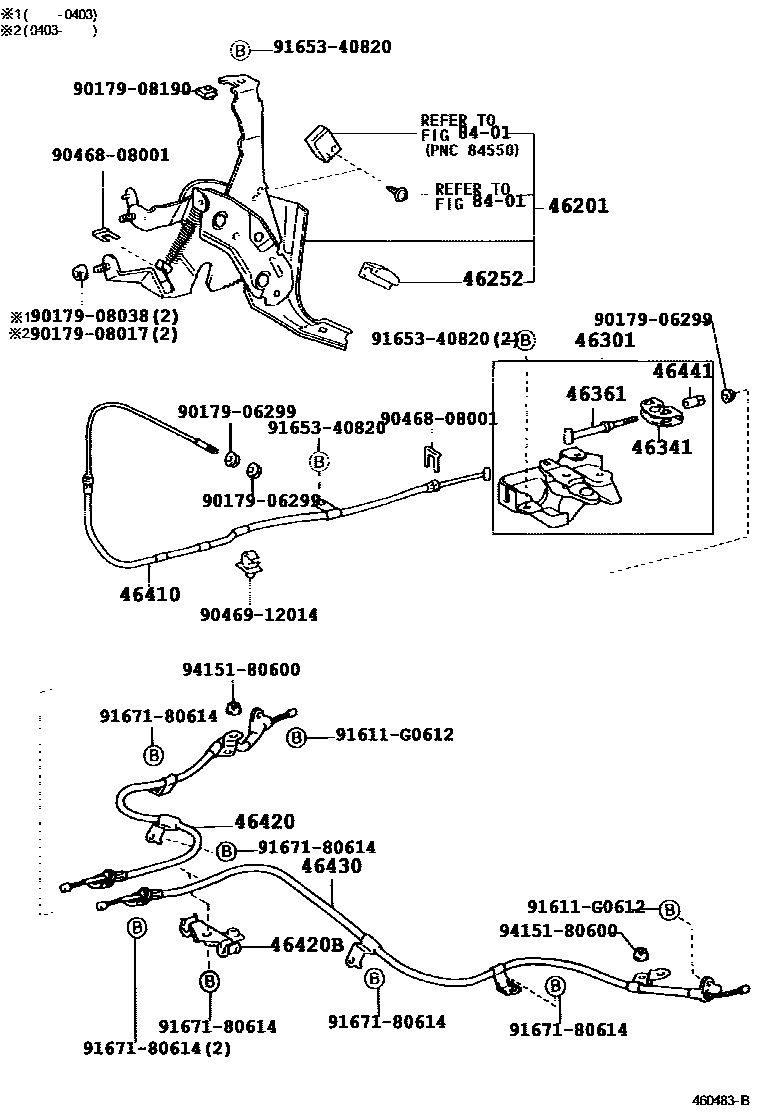

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52020iNCP3#200001-200208

46252PAD, PARKING PEDAL

main46252-52010iNCP3#200001-200208

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-52010iNCP3#200001-200208

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP3#200001-200208

46361ROD, PARKING BRAKE PULL

main46361-52020iNCP3#200001-200208

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52010iNCP3#200001-200208

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52040iNCP30,31,34200001-200208

main46420-52060iNCP35200208-200302

main46420-52061iNCP35200302-200512

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46451-52010iNCP3#200205-200208

main90949-01B84iNCP3#200001-200205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52040iNCP30,31,34200001-200208

main46430-52060iNCP35200208-200302

main46430-52061iNCP35200302-200512

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP3#200208-200512

8401

9017906299

main90179-06299

9017908017

main90179-08017

9017908038

main90179-08038

9017908190

main90179-08190

9046808001

main90468-08001

9046912014

main90469-12014

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

21 parts on this diagram · 3 diagrams in section
