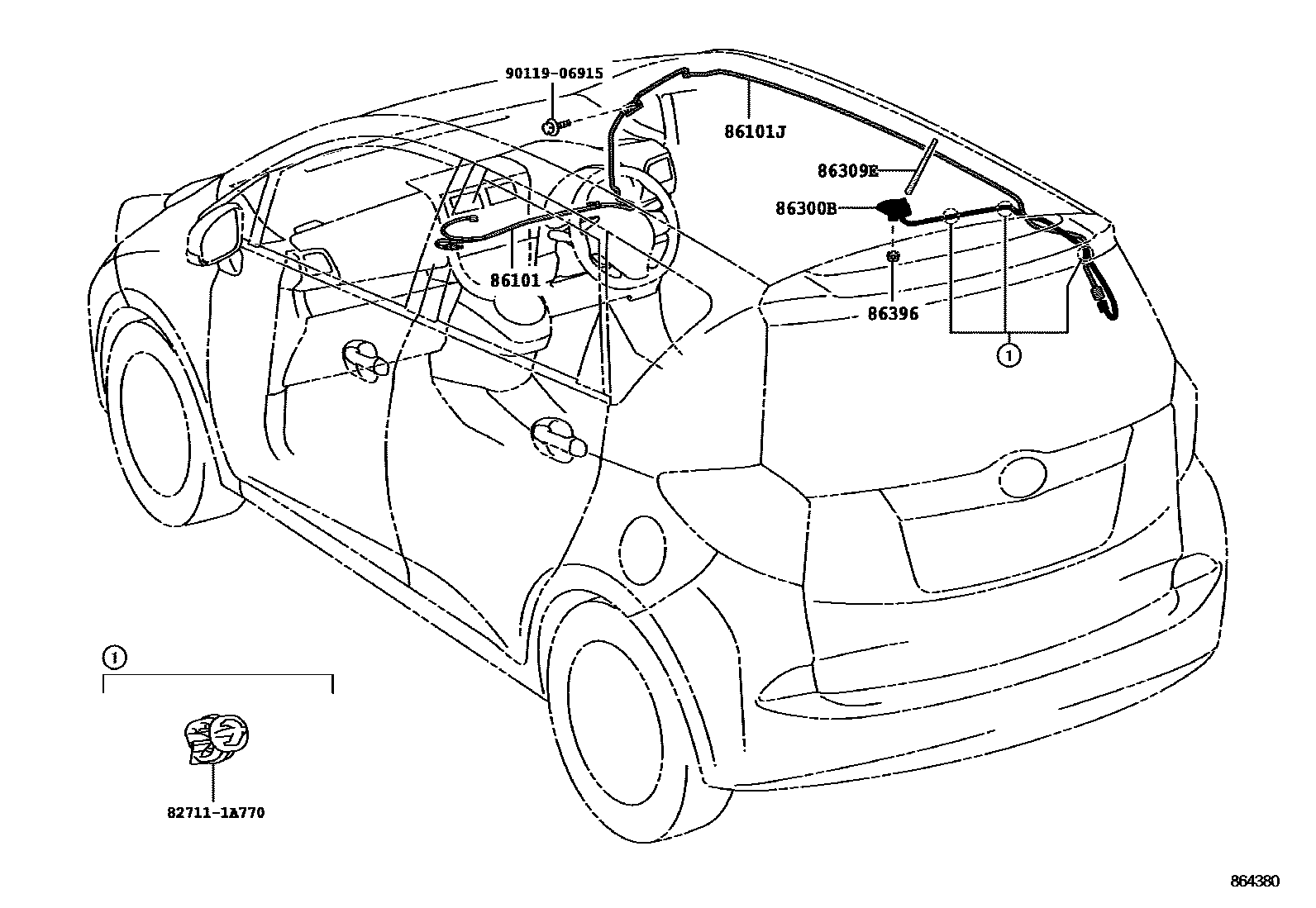

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-52780iNCP12#,NSP12#201011-201405

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52730iNCP12#,NSP12#201011-201607

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52440iNCP120,125,NSP120201011-201208

main86300-52460iNCP122,NSP122201011-201208

main86300-52620iNCP120,125,NSP120201208-201405

main86300-52630iNCP122,NSP122201208-201405

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42070iNCP12#,NSP12#201011-201208

main86309-47060iNCP12#,NSP12#201208-201405

86396NUT, ANTENNA

main86396-47010iNCP12#,NSP12#201011-201405

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

7 parts on this diagram · 2 diagrams in section
