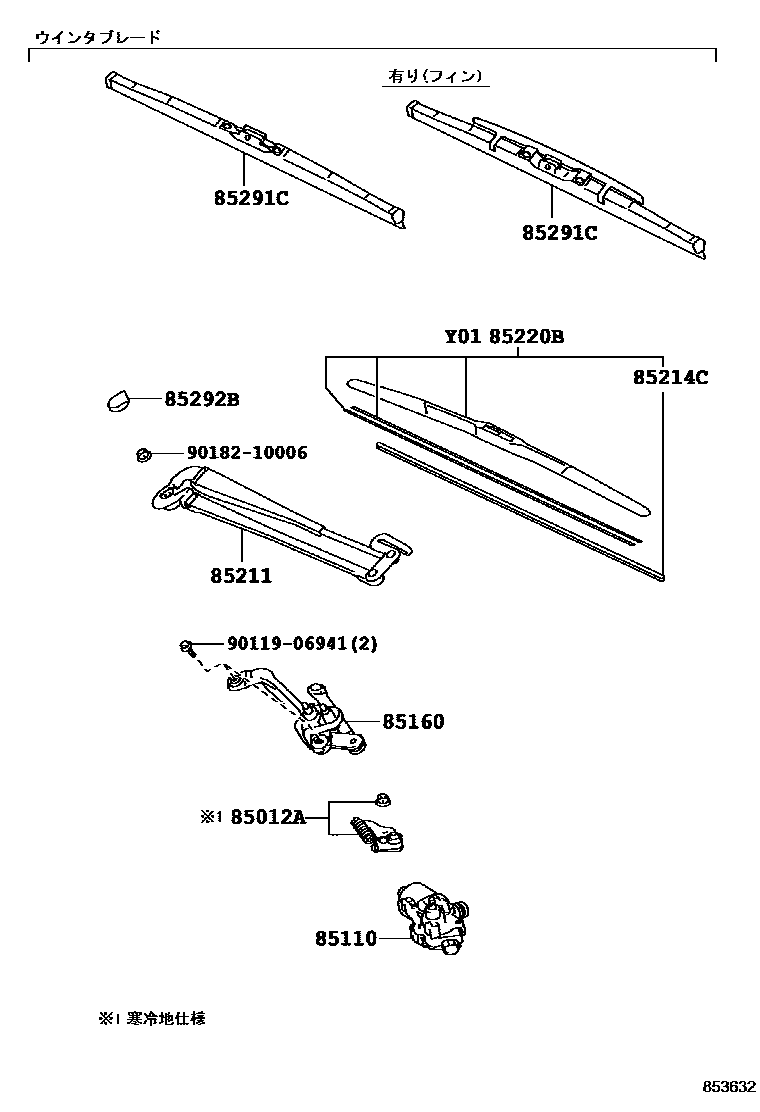

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iNCP12#,NSP12#201011-201405

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52570iNCP12#,NSP12#201011-201405

sub85110-52770

main85110-52640iNCP12#,NSP12#201011-201405

sub85110-52800

main85110-52770iNCP12#,NSP12#201405

main85110-52800iNCP12#,NSP12#201405

85160LINK ASSY, WINDSHIELD WIPER

main85150-52480iNCP12#,NSP12#201011-201111

main85150-52570iNCP12#,NSP12#201011-201111

main85150-52660iNCP12#,NSP12#201111-201405

main85150-52690iNCP12#,NSP12#201111-201405

85211ARM, FRONT WIPER

main85211-52360iNCP12#,NSP12#201011-201111

sub85211-52500

main85211-52480iNCP12#,NSP12#201111-201112

sub85211-52481

main85211-52481iNCP12#,NSP12#201112-201405

85214CRUBBER, WIPER BLADE, CENTER

main85214-28080iNCP12#,NSP12#201011-201112

main85214-52070iNCP12#,NSP12#201112-201405

sub85214-28080

85220BBLADE, FRONT WIPER

main85212-52190iNCP12#,NSP12#201011-201104

sub85212-52240

main85212-52240iNCP12#,NSP12#201104-201111

main85212-52270iNCP12#,NSP12#201112-201203

sub85212-52271

main85212-52271iNCP12#,NSP12#201204-201405

85291CBLADE, FRONT WIPER, WINTER, CENTER

main85291-28131iNCP12#,NSP12#201011-201405

main85291-52090iNCP12#,NSP12#201011-201405

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iNCP12#,NSP12#201011-201405

9011906941

main90119-06941

9018210006

main90182-10006

10 parts on this diagram · 1 diagram in section
