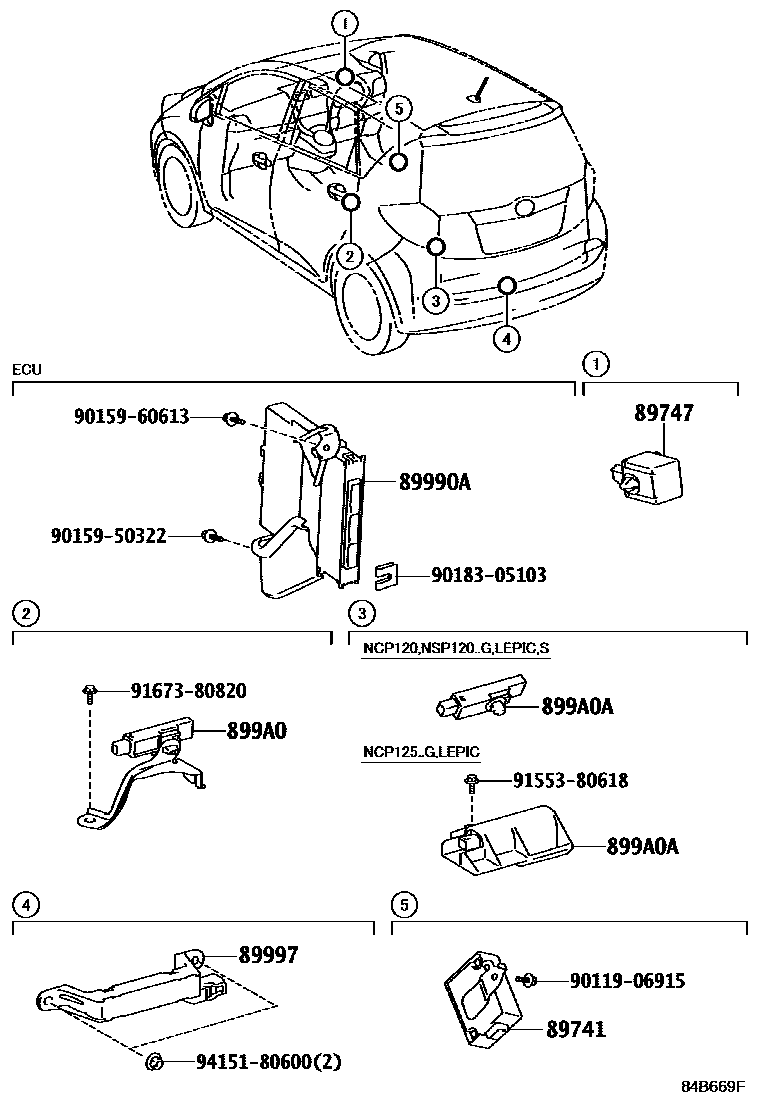

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-52160iNCP120,125,NSP120..G,S201011-201405

main89741-52450iNCP122;NCP120,125,NSP12#..LEPIC,X201011-201405

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNCP120,125,NSP120..G,S201011-201405

89990ACOMPUTER ASSY, SMART KEY

main89990-52170iNCP120,125,NSP120..G,S201011-201102

sub89990-52171

main89990-52171iNCP120,125,NSP120..G,S201103-201401

sub89990-52172

main89990-52172iNCP120,125,NSP120..LEPIC201401-201405

main89990-52172iNCP120,125,NSP120..G,S201405

89997ANTENNA, ELECTRICAL KEY

main89997-30070iNCP120,125,NSP120..G,S201011-201405

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-52010iNCP120,125,NSP120..G,S201011-201405

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iNCP120,NSP120..G,S201011-201405

main899A0-52040iNCP125..G201011-201405

9011906915

main90119-06915

9015950322

main90159-50322

9015960613

main90159-60613

9018305103

main90183-05103

9155380618

main91553-80618

9167380820

main91673-80820

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
