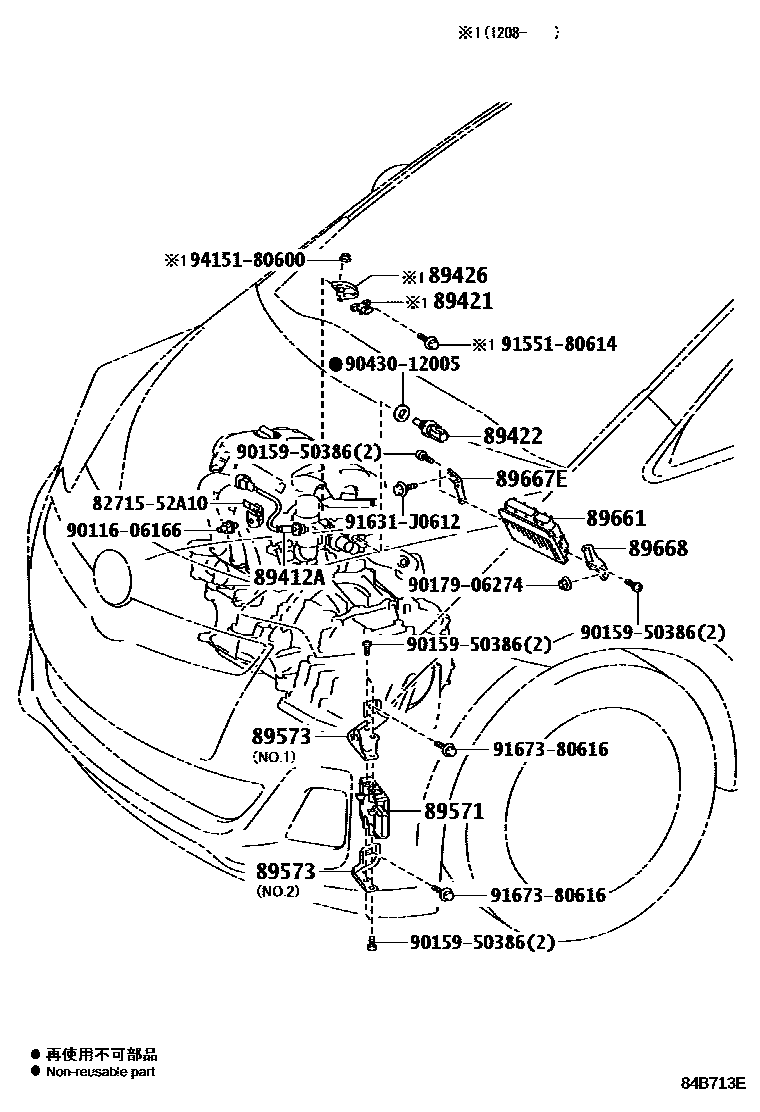

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNCP120,122201011-201405

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNCP120..LEPIC201011-201405

main89421-47010iNSP12#201405-201607

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNCP12#,NSP12#201011-201405

89426BRACKET, VACUUM SENSOR

main89426-12260iNCP120,122201208-201405

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iNCP120,122201011-201405

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-52030iNCP120,122201011-201405

main89573-52040iNCP125201011-201405

89661COMPUTER, ENGINE CONTROL

main89661-52P00iNSP12#201011-201405

main89661-52P10iNCP120,122201011-201208

main89661-52P20iNCP125201011-201405

main89661-52Y80iNCP120,122201208-201210

main89661-52Y81iNCP120,122201211-201405

main89661-5C500iNSP12#201405-201607

sub89661-5C501

main89661-5C520iNCP125201405-201607

main89661-5C540iNCP120,122201405-201607

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52340iNCP12#,NSP12#201011-201607

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNCP12#,NSP12#201011-201607

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10

9011606166

main90116-06166

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

9155180614

main91551-80614

91631J0612

main91631-J0612

9167380616

main91673-80616

9415180600

main94151-80600

18 parts on this diagram · 3 diagrams in section
