HEADLAMP

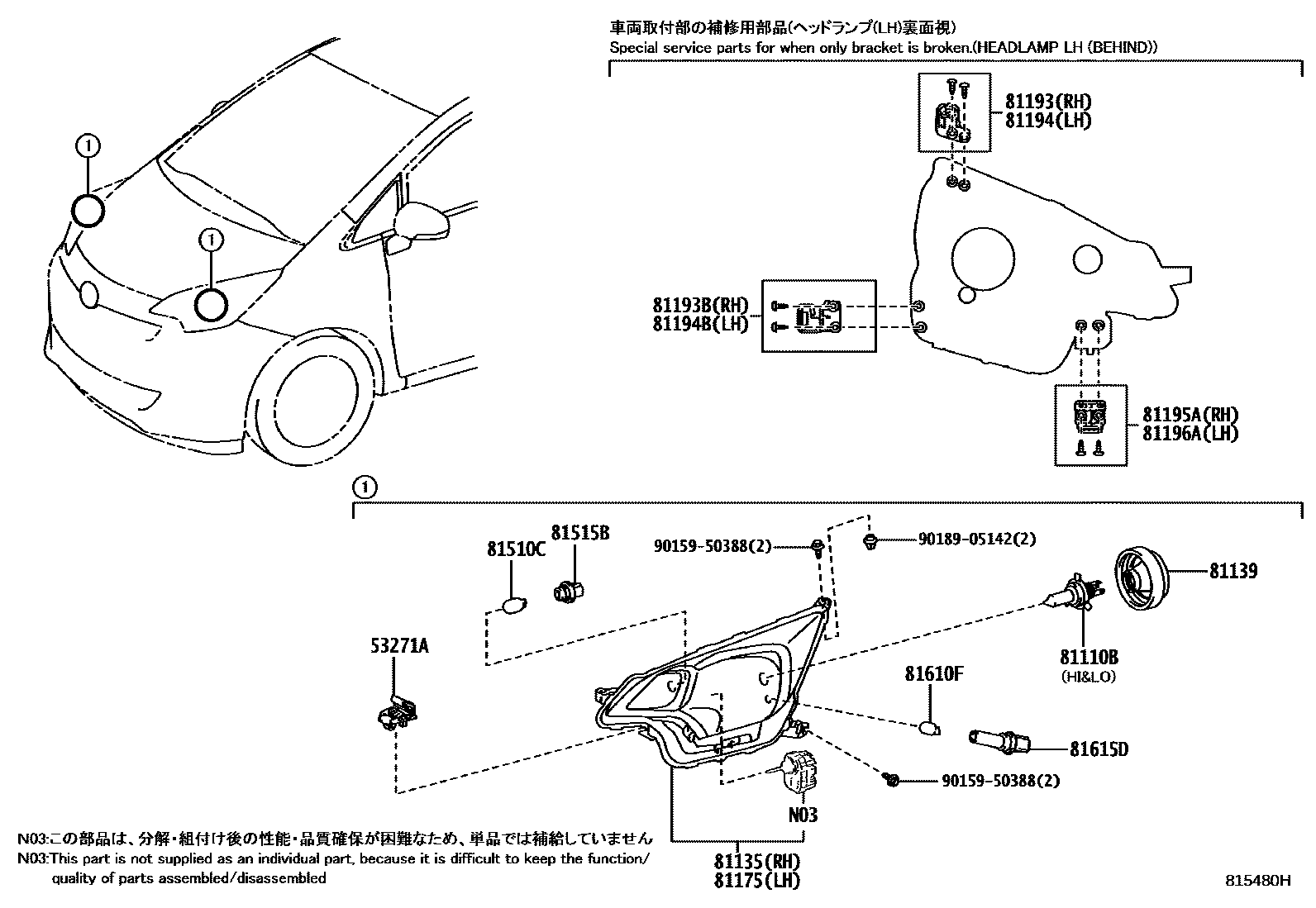

Parts diagram

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2i201405

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2i201011-201405

main90981-13089×2i201405

main90981-13082×2i201011-201405

81135UNIT ASSY, HEADLAMP, RH

main81130-52C60i201011-201405

main81130-52D00i201011-201405

main81130-52J70i201405-201501

main81130-52J71i201501

main81130-52J80i201405-201501

main81130-52J81i201501

main81130-52J90i201405

main81145-52C70i201011-201405

81139COVER, HEADLAMP SOCKET

main81139-52570×2i201011-201405

81175UNIT ASSY, HEADLAMP, LH

main81170-52C60i201011-201405

main81170-52D00i201011-201405

main81170-52J70i201405-201501

main81170-52J71i201501

main81170-52J80i201405-201501

main81170-52J81i201501

main81170-52J90i201405

main81185-52C70i201011-201405

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52170i201011-201405

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-52160i201011-201405

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52170i201011-201405

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-52160i201011-201405

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52140i201011-201405

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81195-52140i201011-201405

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i201011-201405

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2i201011-201405

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i201011-201405

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2i201011-201405

9015950388

main90159-50388

9018905142

main90189-05142

17 parts on this diagram · 4 diagrams in section
