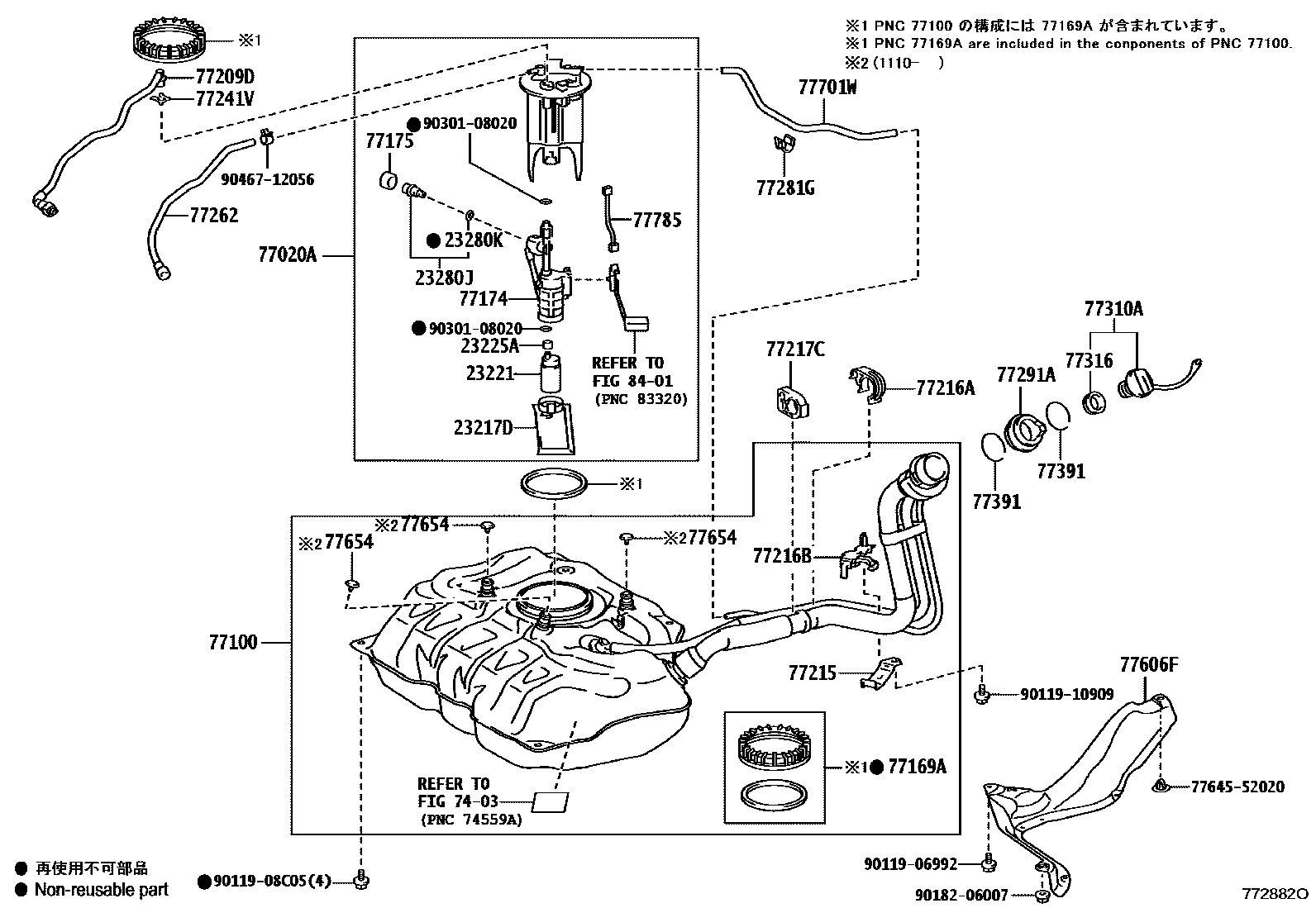

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ���(������� ���) 0004 1����� ����� 0005 1����� ����� 0006 1����� ���������

23217DFILTER, FUEL PUMP

main23217-21010i1N#..NCP120,NSP120201011-201405

23221PUMP, FUEL

main23220-21220i1NZFE..NCP125201011-201201

sub23220-21221

sub77785-52110

main23220-21221i1NZFE..NCP125201201-201405

main23220-21280i1N#..NCP122,NSP122201011-201201

sub23220-21281

sub77785-52110

main23220-21281i1N#..NCP122,NSP122201201-201405

main23221-47030i1N#..NCP120,NSP120201011-201201

sub23221-47031

sub77785-52091

main23221-47031i1N#..NCP120,NSP120201201-201405

23225ASPACER, FUEL PUMP

main23225-21020i1N#..NCP120,NSP120201011-201405

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1N#..NCP122,125,NSP122201011-201405

main23280-22010i1N#..NCP120,NSP120201011-201405

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1N#..NCP122,125,NSP122201011-201405

main90301-07020i1N#..NCP120,NSP120201011-201405

main90301-15024i1N#..NCP122,125,NSP122201011-201405

7403

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-52420iNCP120,NSP120201011-201204

sub77020-52421

main77020-52421iNCP120,NSP120201205-201405

77100TANK ASSY, FUEL

main77001-52161iNCP125201011-201405

main77001-52191iNCP122,NSP122201011-201405

main77001-52370iNCP120,NSP120201011-201405

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iNCP122,125,NSP122201011-201405

main77169-52040iNCP120,NSP120201011-201405

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52040iNCP120,NSP120201011-201405

main77174-52070iNCP122,125,NSP122201011-201405

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52040iNCP120,NSP120201011-201405

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52110iNCP125201011-201405

sub77209-52111

main77209-52130iNCP122,NSP122201011-201405

main77209-52170iNCP120,NSP120201011-201405

sub77209-52171

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77219-52060iNCP120,NSP120201011-201607

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12180iNCP120,NSP120201204-201405

main77216-52140iNCP122,NSP122201011-201405

main77216-52180iNCP120,NSP120201011-201203

sub77216-12180

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-52160iNCP120,NSP120201011-201607

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52080iNCP120,NSP120201011-201405

77241VCLIP, TUBE JOINT

main77241-32060iNCP122,125,NSP122201011-201405

main77241-33011iNCP120,NSP120201011-201405

77262TUBE, FUEL EMISSION, NO.2

main77028-52020iNCP120,NSP120201011-201405

77281GCLAMP, FUEL HOSE

main77281-52040iNCP120,NSP120201011-201405

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52010iNCP12#,NSP12#201011-201405

77310ACAP ASSY, FUEL TANK

main77300-52030iNCP12#,NSP12#201011-201405

77316GASKET, FUEL TANK CAP

main77316-52040iNCP12#,NSP12#201011-201405

77391RING, FUEL INLET BOX

main77391-12020iNCP12#,NSP12#201011-201405

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-52060iNCP120,NSP120201011-201405

main77606-52080iNCP122,NSP122201011-201405

77654CUSHION, FUEL TANK, NO.2

main77652-52070iNCP120,NSP120201110-201405

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-12020iNCP120,NSP120201207-201405

main77701-52020iNCP120,NSP120201011-201207

sub77701-12020

77785HARNESS, FUEL PUMP

main77785-52060iNCP122,125,NSP122201011-201201

main77785-52090iNCP120,NSP120201011-201201

main77785-52091iNCP120,NSP120201201-201405

main77785-52110iNCP122,125,NSP122201201-201405

8401

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020

9011906992

main90119-06992

9011908C05

main90119-08C05

9011910909

main90119-10909

9018206007

main90182-06007

9030108020

main90301-08020

9046712056

main90467-12056

35 parts on this diagram · 6 diagrams in section
