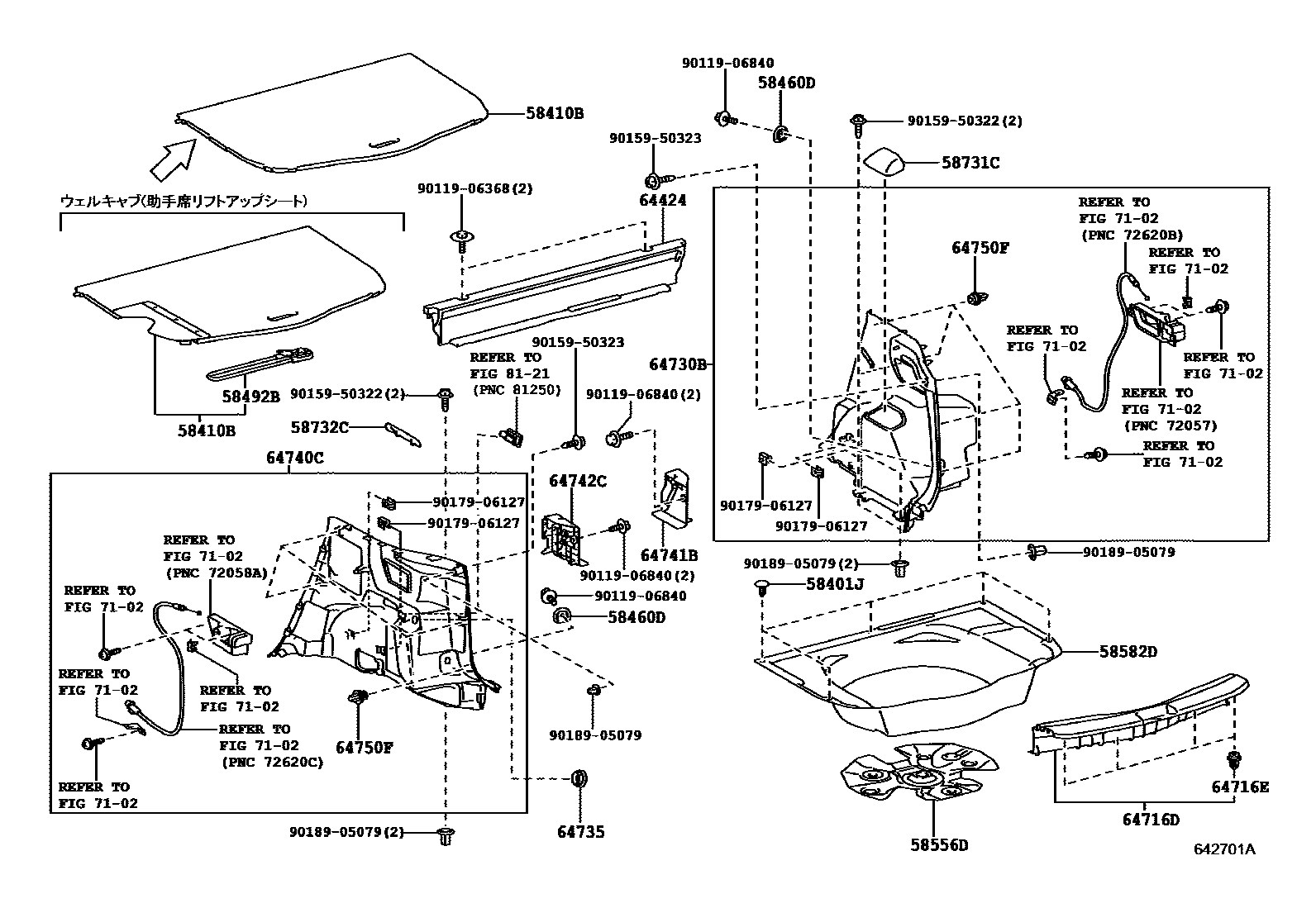

DECK BOARD & DECK TRIM COVER

0001 1 0002 1��(���� ���) 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1�������(������� ������� ���) 0009 1���������� 0010 1����������(DOP) 0011 1����������(DOP)

58401JCLIP(FOR DECK BOAD)

main90467-05164-C0iNCP120..S201011-201607

BLACK,TRIM2#

sub90467-05164

main90467-05164-C0iNCP120..S201011-201607

BLACK,TRIM2#,4#

sub90467-05164

58410BBOARD ASSY, DECK

main58410-52060-B0iNCP120..S201011-201607

DARK GRAY,TRIM2#,4#

main58410-52060-B0iNCP120,NSP120..G201011-201607

DARK GRAY,TRIM2#

main58410-52070-B0iNCP125..G201405-201607

DARK GRAY,TRIM2#

main58410-52070-B0iNCP120,125,NSP120..X201011-201607

DARK GRAY,TRIM2#,4#

main58410-52070-B0iNCP125,NSP120..X201011-201405

DARK GRAY,TRIM2#,4#,8#

main58410-52070-B0iNCP125,NSP120..X201011-201405

DARK GRAY,TRIM2#,8#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNCP120..G;NSP120..X;NCP125..G,X201011-201405

58492BHOOK, DECK BOARD LOCK

58556DSILENCER, REAR FLOOR

main58556-52010iNCP120,NSP120..G,S201011-201405

58582DMAT, REAR FLOOR, REAR

main58582-52010-B0iNCP120,NSP120..G201011-201607

DARK GRAY,TRIM2#,4#

main58582-52010-B0iNCP120..S201011-201607

DARK GRAY,TRIM2#

58731CCAP, REAR ABSORBER

main58731-52050-C0iNCP120..S201011-201607

BLACK,TRIM2#

sub58731-52050

main58731-52050-C0iNCP120..S201011-201607

BLACK,TRIM2#,4#

sub58731-52050

main58731-52050-C0iNCP120..S201011-201405

BLACK,TRIM2#,4#,8#

sub58731-52050

main58731-52050-C0iNCP120..S201011-201405

BLACK,TRIM2#,8#

sub58731-52050

58732CCAP, REAR ABSORBER

main58732-52030-C0iNSP122;NCP12#,NSP120..G201011-201607

BLACK,TRIM2#,4#

sub58732-52030

main58732-52030-C0iNCP120..S201011-201607

BLACK,TRIM2#

sub58732-52030

main58732-52030-C0iNCP120..S201011-201405

BLACK,TRIM2#,4#,8#

sub58732-52030

main58732-52030-C0iNCP120..S201011-201405

BLACK,TRIM2#,8#

sub58732-52030

64424SEPARATOR, LUGGAGE ROOM BOX

main64424-52020-C0iNCP120..S201011-201607

BLACK,TRIM2#

main64424-52020-C0iNCP120..S201011-201405

BLACK,TRIM2#,4#,8#

main64424-52020-C0iNCP120..S201011-201405

BLACK,TRIM2#,8#

main64424-52020-C0iNCP120..S201011-201607

BLACK,TRIM2#,4#

main64424-52020-C0iNCP120..S201011-201405

main64424-52020-C0iNCP120..S201011-201405

64716DCOVER, DECK TRIM, REAR

main64716-52160-C0iNCP125,NSP120..X201011-201607

BLACK,TRIM2#

main64716-52160-C0iNCP120..S201011-201405

BLACK,TRIM2#,4#,8#

main64716-52160-C0iNCP120..S201011-201405

BLACK,TRIM2#,8#

main64716-52160-C0iNCP120..S201011-201607

BLACK,TRIM2#,4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iNCP120,125,NSP120201011-201405

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52360-C0iNCP120,NSP120..G201011-201405

BLACK,TRIM2#

main64730-52360-C0iNCP120,NSP120..G201011-201405

BLACK,TRIM2#,4#,8#

main64730-52360-C0iNCP120,NSP120..G201011-201405

BLACK,TRIM2#,8#

main64730-52360-C0iNCP120,NSP120..G201011-201405

BLACK,TRIM2#,4#

main64730-52360-C1iNCP120,NSP120..G201405-201607

BLACK,TRIM2#,4#

main64730-52360-C1iNCP120,NSP120..G201405-201607

BLACK,TRIM2#

main64730-52390-C0iNCP125..G201011-201405

BLACK,TRIM2#,4#,8#

main64730-52390-C0iNCP125..X201011-201607

BLACK,TRIM2#,4#

main64730-52390-C0iNCP125..X201011-201405

BLACK,TRIM2#,8#

main64730-52390-C0iNCP125..X201405-201607

BLACK,TRIM2#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-13050-C0iNCP120..S201011-201607

BLACK,TRIM2#

sub64735-13050

main64735-13050-C0iNCP120..S201011-201405

BLACK,TRIM2#,4#,8#

sub64735-13050

main64735-13050-C0iNCP120..S201011-201405

BLACK,TRIM2#,8#

sub64735-13050

main64735-13050-C0iNCP120..S201011-201607

BLACK,TRIM2#,4#

sub64735-13050

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52400-C0iNSP120..X201011-201107

BLACK,TRIM2#,4#

sub64740-52620

sub81330-05050

main64740-52400-C0iNCP120..S201011-201107

BLACK,TRIM2#

sub64740-52620

sub81330-05050

main64740-52400-C0iNCP120..S201011-201107

BLACK,TRIM2#,4#,8#

sub64740-52620

sub81330-05050

main64740-52400-C0iNCP120..S201011-201107

BLACK,TRIM2#,8#

sub64740-52620

sub81330-05050

main64740-52410-C0iNCP125..G201011-201107

BLACK,TRIM2#,4#

sub64740-52610

sub81330-05050

main64740-52410-C0iNCP125..X201011-201107

BLACK,TRIM2#,4#,8#

sub64740-52610

sub81330-05050

main64740-52410-C0iNCP125..X201011-201107

BLACK,TRIM2#,8#

sub64740-52610

sub81330-05050

main64740-52610-C0iNCP125..X201107-201607

BLACK,TRIM2#

sub64740-52610

main64740-52610-C0iNCP125..X201107-201607

BLACK,TRIM2#,4#

sub64740-52610

main64740-52610-C0iNCP125..X201107-201405

BLACK,TRIM2#,8#

sub64740-52610

main64740-52620-C0iNCP120,NSP120..LEPIC201107-201405

BLACK,TRIM2#,4#

sub64740-52620

main64740-52620-C0iNCP120,NSP120..G201107-201405

BLACK,TRIM2#,8#

sub64740-52620

main64740-52620-C0iNCP120,NSP120..G201107-201405

BLACK,TRIM2#

sub64740-52620

main64740-52620-C1iNCP120,NSP120..S,X201405-201607

BLACK,TRIM2#

sub64740-52620

main64740-52620-C1iNCP120,NSP120..S,X201405-201607

BLACK,TRIM2#,4#

sub64740-52620

64741BBOX, DECK SIDE TRIM, RH

main64741-52020-C0iNCP120,NSP120..G201011-201607

BLACK,TRIM2#,4#

main64741-52020-C0iNCP120..S201011-201607

BLACK,TRIM2#

64742CBOX, DECK SIDE TRIM, LH

main64742-52010-C0iNCP120,NSP120..G201011-201607

BLACK,TRIM2#

main64742-52010-C0iNCP120..S201011-201607

BLACK,TRIM2#,4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iNCP125..G,X201011-201405

7102

8121

9011906368

main90119-06368

9011906840

main90119-06840

9015950322

main90159-50322

9015950323

main90159-50323

9017906127

main90179-06127

9018905079

main90189-05079

25 parts on this diagram · 11 diagrams in section
