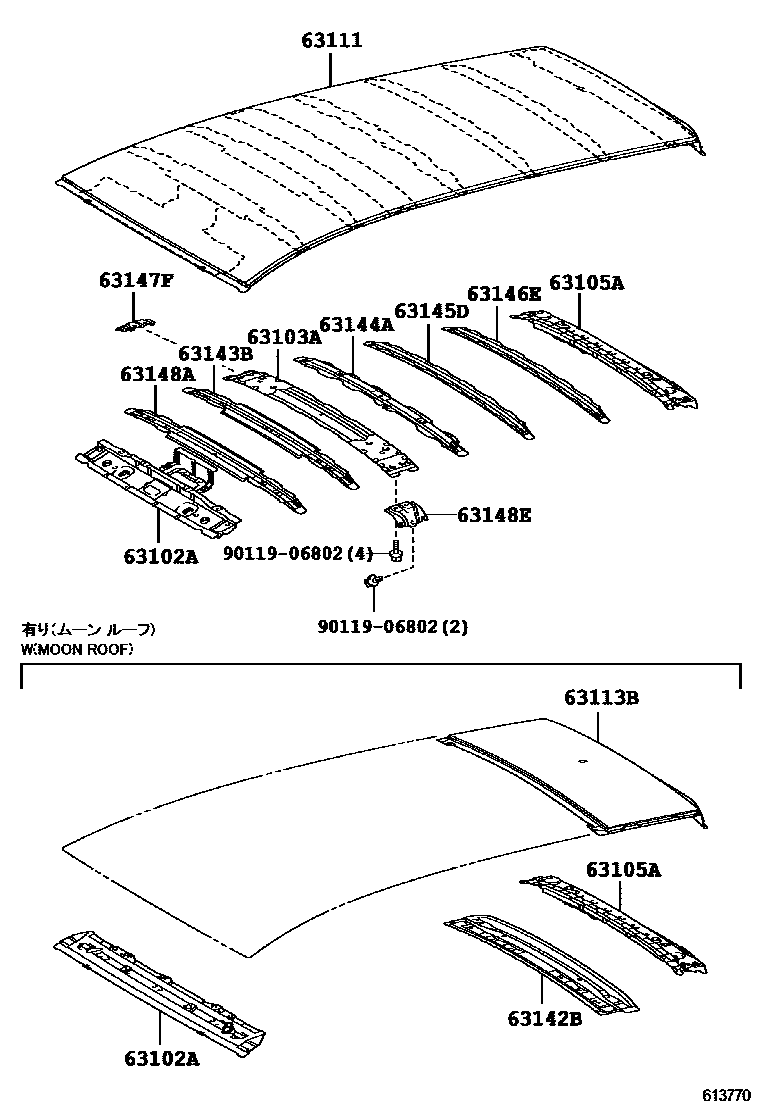

ROOF PANEL & BACK WINDOW GLASS

0001 1��� ���� 0002 1��������� ��� 0003 1��� ����

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52160iNCP12#,NSP12#201405

main63102-52170iNCP120..G201011-201405

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-52090iNCP120,125,NSP120201405

main63103-52100iNCP122,NSP122201011-201405

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52140iNCP120,125,NSP120201011-201405

main63105-52150iNCP122,NSP122201011-201110

main63105-52151iNCP122,NSP122201111-201405

main63105-52190iNSP122201405

63111PANEL, ROOF

main63111-52270iNCP120,125,NSP120201011-201405

main63111-52280iNCP122,NSP122201011-201405

63113BPANEL, ROOF, REAR

main63113-52030iNCP120..G201011-201405

63142BREINFORCEMENT, ROOF PANEL, REAR

main63142-52080iNCP120..G201011-201405

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52150iNCP120,125,NSP120201011-201405

main63143-52160iNCP122,NSP122201405

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-52050iNCP120,125,NSP120201011-201405

main63144-52120iNCP122,NSP122201405

63145DBRACKET, ROOF REINFORCEMENT

main63145-52040iNCP120,125,NSP120201011-201405

main63145-52050iNCP122,NSP122201405

63146EBRACKET, ROOF REINFORCEMENT, NO.2

main63146-52060iNCP120,125,NSP120201405

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52080iNCP12#,NSP12#201011-201405

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52110iNCP120,125,NSP120201011-201405

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-52080iNCP12#,NSP12#201011-201405

9011906802

main90119-06802

14 parts on this diagram · 3 diagrams in section
