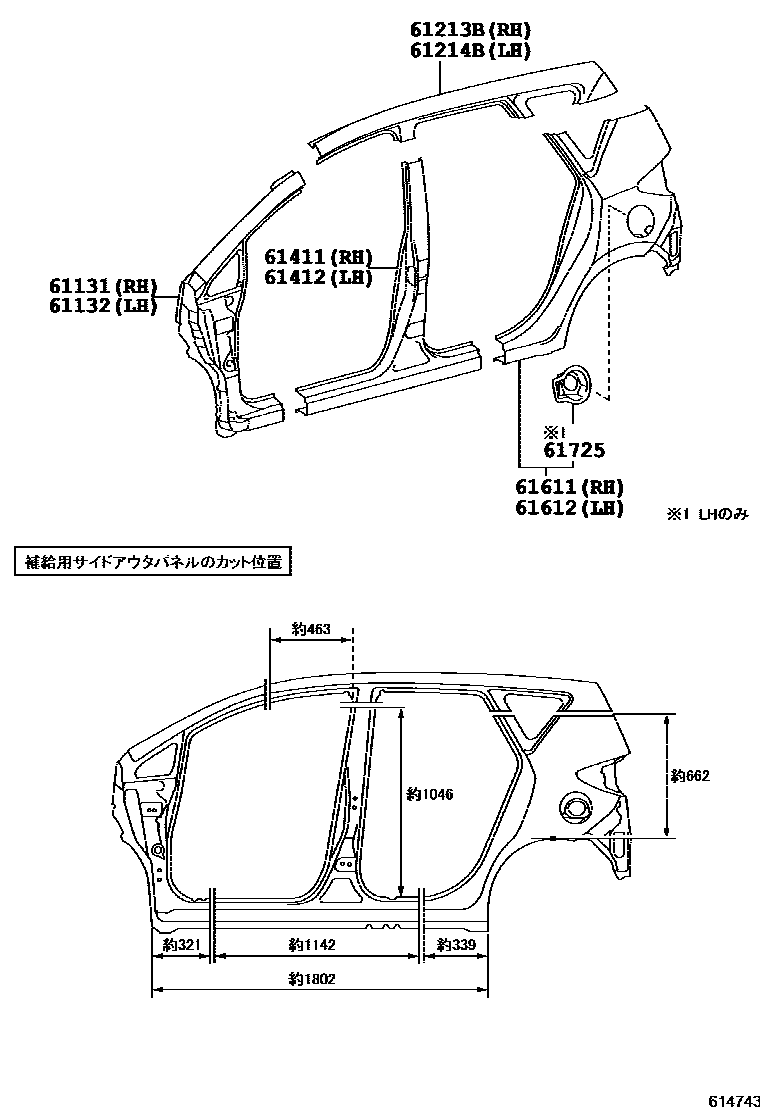

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52180iNCP12#,NSP12#..G,X¥22,600201011-201405

main61131-52290iNCP120..S¥22,600201011-201405

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52150iNCP12#,NSP12#..G,X¥22,600201011-201405

main61132-52170iNCP120..S¥22,600201011-201405

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52180iNCP12#,NSP12#¥11,800201011-201405

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52180iNCP12#,NSP12#¥11,800201011-201405

61411PANEL, ROCKER, OUTER RH

main61411-52260iNCP12#,NSP12#..G,LEPIC,X¥24,000201011-201405

main61411-52270iNCP120..S¥24,000201011-201405

61412PANEL, ROCKER, OUTER LH

main61412-52270iNCP12#,NSP12#..G,LEPIC,X¥24,000201011-201405

main61412-52280iNCP120..S¥24,000201011-201405

61611PANEL, QUARTER, RH

main61601-52550iNCP12#,NSP12#..G,LEPIC,X¥47,400201011-201405

main61601-52560iNCP120..S¥47,400201011-201405

61612PANEL, QUARTER, LH

main61602-52570iNCP12#,NSP12#..G,LEPIC,X¥49,200201011-201405

main61602-52580iNCP120..S¥49,200201011-201405

61725BOX, FUEL INLET

main61725-52110iNCP12#,NSP12#¥3,280201011-201405

9 parts on this diagram · 3 diagrams in section
