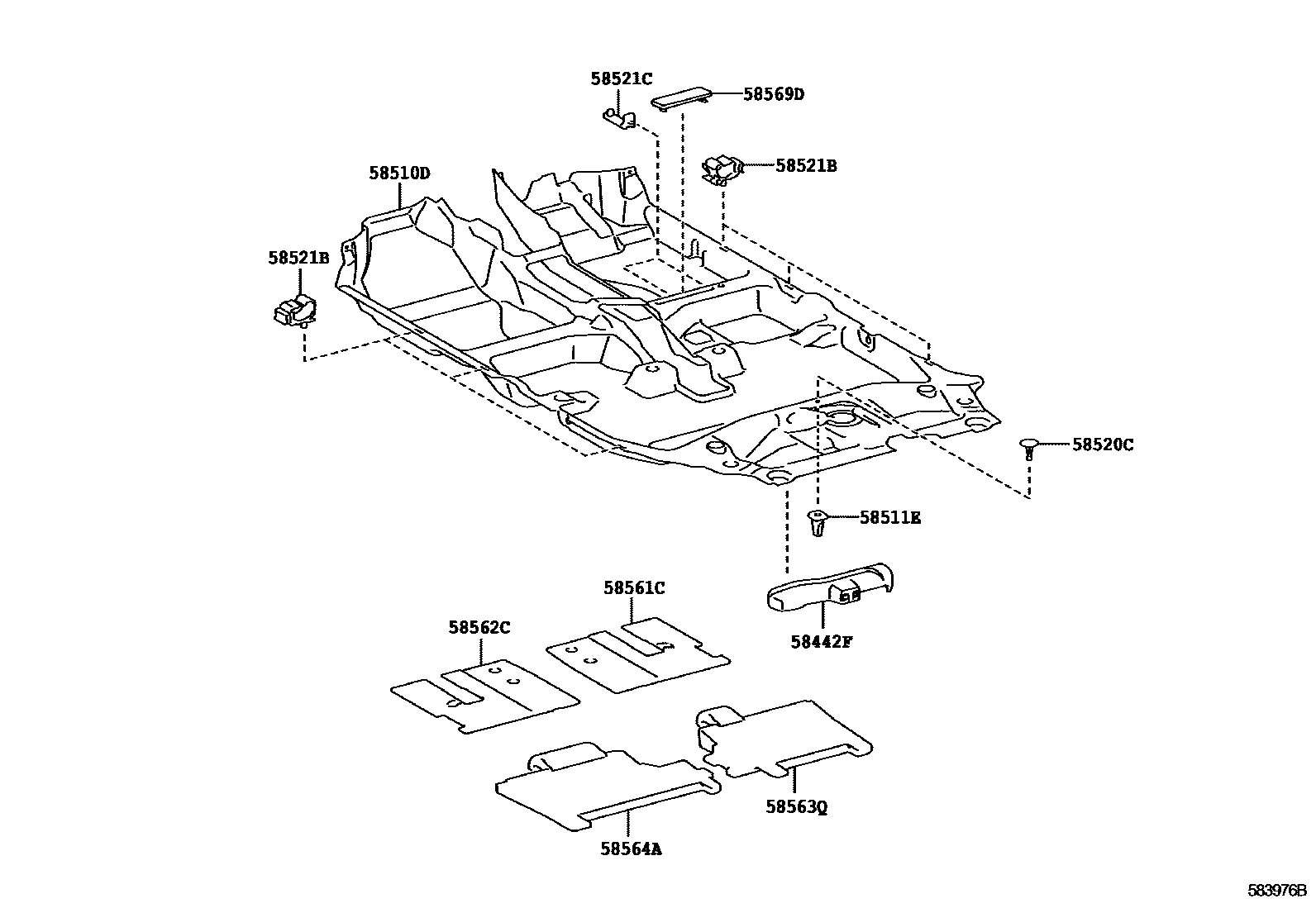

MAT & CARPET
58442FCOVER, JACK
58510DCARPET ASSY, FLOOR, FRONT
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#,8#
DARK GRAY,TRIM2#,8#
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#,4#
sub58510-52F91
sub58510-52F91
sub58510-52F91
sub58510-52F91
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#,8#
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#,8#
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#
58511ECLIP(FOR FRONT FLOOR MAT)
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58521CHOOK, FLOOR CARPET NO.2
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#,4#,8#
sub58569-52021
BLACK,TRIM2#,4#
BLACK,TRIM2#,8#
BLACK,TRIM2#
11 parts on this diagram · 3 diagrams in section
