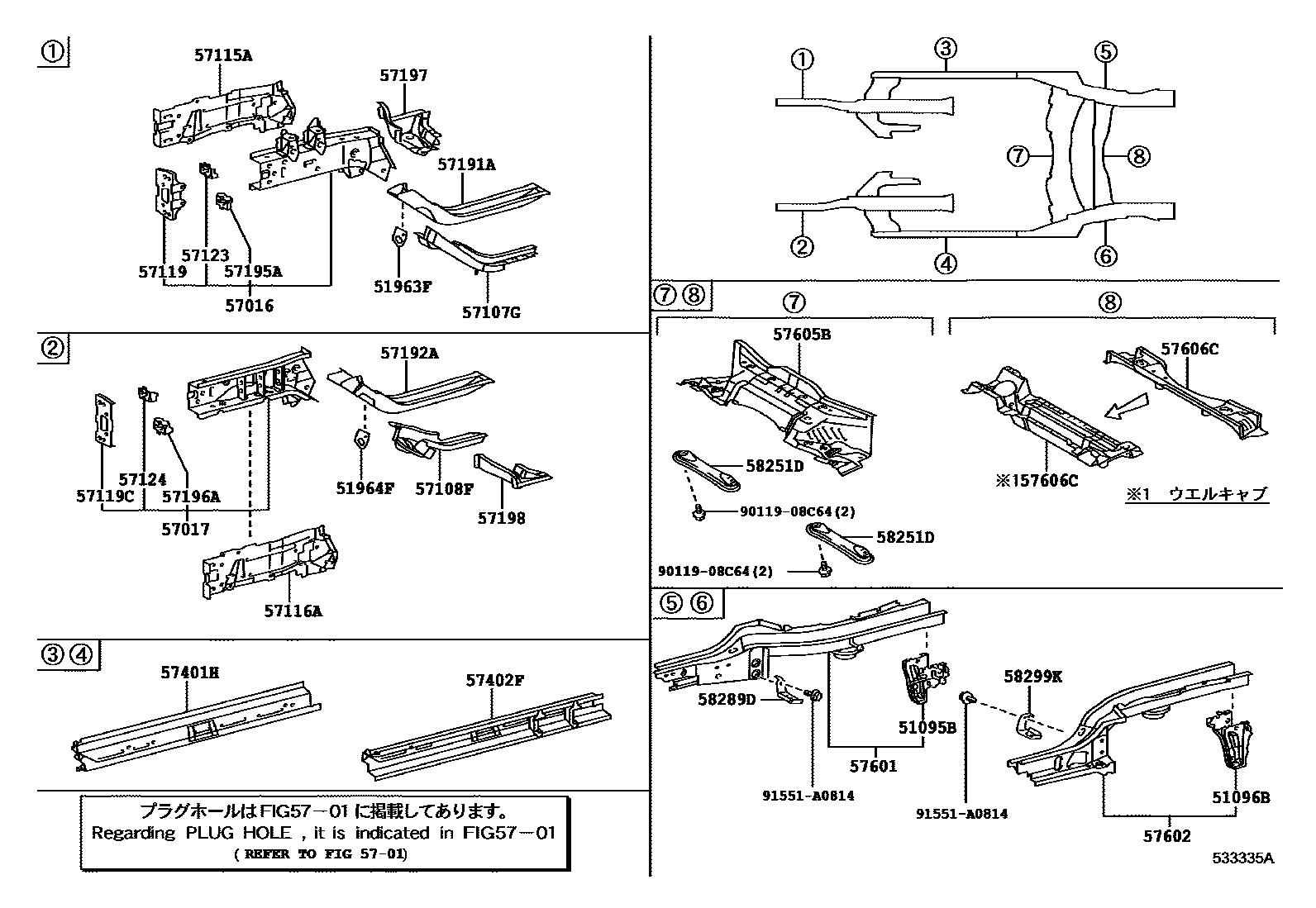

FLOOR SIDE MEMBER

0001 1 0002 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-52020iNCP12#,NSP12#201011-201405

main51095-52020iNCP12#,NSP12#201405

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-52010iNCP12#,NSP12#201011-201405

main51096-52010iNCP12#,NSP12#201405

51963FHOOK, TRANSPORT

main51963-52050iNCP12#,NSP12#201011-201405

51964FHOOK, TRANSPORT, LH

main51963-52050iNCP12#,NSP12#201011-201405

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-52070iNCP12#,NSP12#201011-201405

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-52060iNCP12#,NSP12#201011-201405

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52030iNCP12#,NSP12#201011-201405

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52030iNCP12#,NSP12#201011-201405

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-52010iNCP12#,NSP12#201011-201405

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-52010iNCP12#,NSP12#201011-201405

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-52020iNCP12#,NSP12#201011-201405

57119CPLATE, FRONT SIDE MEMBER, FRONT

main57129-52010iNCP12#,NSP12#201011-201405

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-52010iNCP12#,NSP12#201011-201405

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-52010iNCP12#,NSP12#201011-201405

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020iNCP12#,NSP12#201011-201405

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020iNCP12#,NSP12#201011-201405

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-52020iNCP12#,NSP12#201011-201405

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-52010iNCP12#,NSP12#201011-201405

57197BOX, TORQUE, FRONT RH

main57197-52030iNCP12#,NSP12#201011-201405

57198BOX, TORQUE, FRONT LH

main57198-52030iNCP12#,NSP12#201011-201405

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-52190iNCP12#,NSP12#201011-201405

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-52210iNCP12#,NSP12#201011-201409

sub57402-52280

main57402-52280iNCP12#,NSP12#201410

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52230iNCP120,NSP120201011-201310

sub57601-52400

main57601-52232iNCP120..G;NSP120..X201401-201405

sub57601-52233

main57601-52232iNCP120,NSP120201405-201412

sub57601-52233

main57601-52233iNCP120,NSP120201501

main57601-52240iNCP125201011-201310

sub57601-52410

main57601-52242iNCP125..G,X201401-201405

sub57601-52243

main57601-52242iNCP125201405-201412

sub57601-52243

main57601-52243iNCP125201501

main57601-52260iNCP122,NSP122201011-201309

sub57601-52261

main57601-52261iNCP122,NSP122201310-201312

sub57601-52262

main57601-52262iNCP122,NSP122201401-201501

sub57601-52263

main57601-52263iNCP122,NSP122201501

main57601-52400iNCP120,NSP120201310-201312

sub57601-52232

main57601-52410iNCP125..G,X201310-201312

sub57601-52242

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52280iNCP120..G;NSP120..X201011-201310

sub57602-52470

main57602-52282iNCP120..G;NSP120..X201401-201405

sub57602-52283

main57602-52282iNCP120,NSP120201405-201412

sub57602-52283

main57602-52283iNCP120,NSP120201501

main57602-52290iNCP125201011-201310

sub57602-52480

main57602-52292iNCP125201401-201405

sub57602-52293

main57602-52292iNCP125201405-201412

sub57602-52293

main57602-52293iNCP125201501

main57602-52470iNCP120..G;NSP120..X201310-201312

sub57602-52282

main57602-52480iNCP125..G,X201310-201312

sub57602-52292

main57604-52160iNCP122,NSP122201011-201309

sub57604-52161

main57604-52161iNCP122,NSP122201310-201312

sub57604-52162

main57604-52162iNCP122,NSP122201401-201405

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52110iNCP120..G;NSP120..X201011-201307

sub57605-52111

main57605-52111iNCP120,NSP120201308-201405

sub57605-52112

main57605-52111iNCP120,NSP120201405-201511

sub57605-52112

main57605-52112iNCP120,NSP120201512

main57605-52120iNCP125..G,X201011-201405

main57605-52120iNCP125201405

main57605-52140iNCP122,NSP122201011-201405

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52170iNCP120,NSP120201011-201304

sub57606-52171

main57606-52171iNCP120,NSP120201405

main57606-52171iNCP120,NSP120201305-201405

main57606-52180iNCP125201011-201307

sub57606-52181

main57606-52181iNCP125201308-201405

sub57606-52182

main57606-52181iNCP125201405-201507

sub57606-52182

main57606-52182iNCP125201508-201511

sub57606-52183

main57606-52183iNCP125201512

main57606-52210iNCP122,NSP122201011-201405

58251DBRACE, FLOOR PANEL, FRONT

main58251-52020iNCP12#,NSP12#201011-201405

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-52040iNCP125201011-201405

main58289-52050iNCP122,NSP122201011-201405

main58289-52080iNCP120,NSP120201011-201405

58299KBRACKET, FLOOR BRAKE HOSE, REAR LH

main58299-52070iNCP125201011-201405

main58299-52080iNCP122,NSP122201011-201405

main58299-52100iNCP120,NSP120201011-201405

9011908C64

main90119-08C64

91551A0814

main91551-A0814

32 parts on this diagram · 2 diagrams in section
