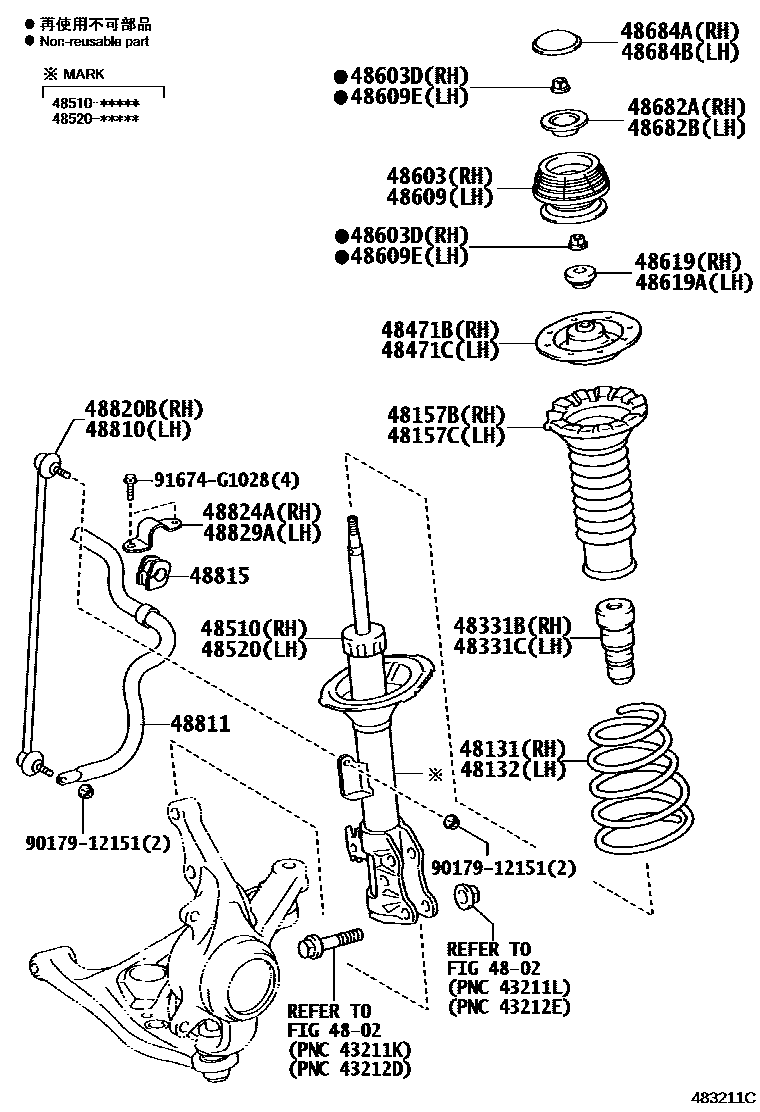

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-52F10iNCP120,NSP12#..G,LEPIC,X201011-201308

sub48131-52F11

main48131-52F30iNCP120..S201011-201310

main48131-52F50iNCP122,125201011-201308

sub48131-52F51

main48131-52K00iNCP120,NSP12#..G,LEPIC,X201309-201404

sub48131-52K01

main48131-52K01iNCP120,NSP120..G,X201405

sub48131-52F11

main48131-52K10iNCP122,125201309-201404

sub48131-52K11

main48131-52K11iNCP122,125,NSP122201405

main48131-52L90iNCP120..S201311-201404

sub48131-52L91

main48131-52L91iNCP120..S201405

48132SPRING, FRONT COIL, LH

main48131-52F10iNCP120,NSP12#..G,LEPIC,X201011-201308

sub48131-52F11

main48131-52F30iNCP120..S201011-201310

main48131-52F50iNCP122,125201011-201308

sub48131-52F51

main48131-52K00iNCP120,NSP12#..G,LEPIC,X201309-201404

sub48131-52K01

main48131-52K01iNCP120,NSP120..G,X201405

sub48131-52F11

main48131-52K10iNCP122,125201309-201404

sub48131-52K11

main48131-52K11iNCP122,125,NSP122201405

main48131-52L90iNCP120..S201311-201404

sub48131-52L91

main48131-52L91iNCP120..S201405

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52030iNCP12#,NSP12#201011-201405

main48157-52040iNCP12#,NSP12#201405

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52030iNCP12#,NSP12#201011-201405

main48157-52040iNCP12#,NSP12#201405

48331BBUMPER, FRONT SPRING, RH

main48331-52080iNCP12#,NSP12#..G,LEPIC,X201011-201405

main48331-52100iNCP120..S201011-201405

48331CBUMPER, FRONT SPRING, LH

main48331-52080iNCP12#,NSP12#..G,LEPIC,X201011-201405

main48331-52100iNCP120..S201011-201405

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-52030iNCP12#,NSP12#201011-201405

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-52030iNCP12#,NSP12#201011-201405

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52E90iNCP120,122,NSP12#..G,LEPIC,X201011-201405

sub48510-52L20

main48510-52F30iNCP120..S201011-201405

sub48510-52L30

main48510-52F50iNCP125201011-201405

sub48510-52L50

main48510-52L20iNCP120,122,NSP12#..G,X201405

main48510-52L30iNCP120..S201405

main48510-52L50iNCP125201405

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52390iNCP120,122,NSP12#..G,LEPIC,X201011-201405

sub48520-52820

main48520-52430iNCP120..S201011-201405

sub48520-52830

main48520-52450iNCP125201011-201405

sub48520-52850

main48520-52820iNCP120,122,NSP12#..G,X201405

main48520-52830iNCP120..S201405

main48520-52850iNCP125201405

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52100iNCP12#,NSP12#201011-201405

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iNCP12#,NSP12#201011-201405

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52100iNCP12#,NSP12#201011-201405

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iNCP12#,NSP12#201011-201405

48619BEARING, STRUT MOUNTING, RH

main48619-52040iNCP12#,NSP12#201011-201405

48619ABEARING, STRUT MOUNTING, LH

main48619-52040iNCP12#,NSP12#201011-201405

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52040iNCP12#,NSP12#201011-201405

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52040iNCP12#,NSP12#201011-201405

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iNCP12#,NSP12#201011-201405

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iNCP12#,NSP12#201011-201405

48810LINK ASSY, FRONT STABILIZER, LH

main48820-52030iNCP12#,NSP12#201011-201405

48811BAR, STABILIZER, FRONT

main48811-52160iNCP120,122,NSP12#..G,X201011-201405

main48811-52170iNCP120..S201011-201405

main48811-52180iNCP125201011-201405

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-52080iNCP12#,NSP12#..G,X201011-201405

main48815-52090iNCP120..S201011-201405

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-52030iNCP12#,NSP12#201011-201405

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52060iNCP12#,NSP12#201011-201405

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52060iNCP12#,NSP12#201011-201405

9017912151

main90179-12151

91674G1028

main91674-G1028

29 parts on this diagram · 2 diagrams in section
