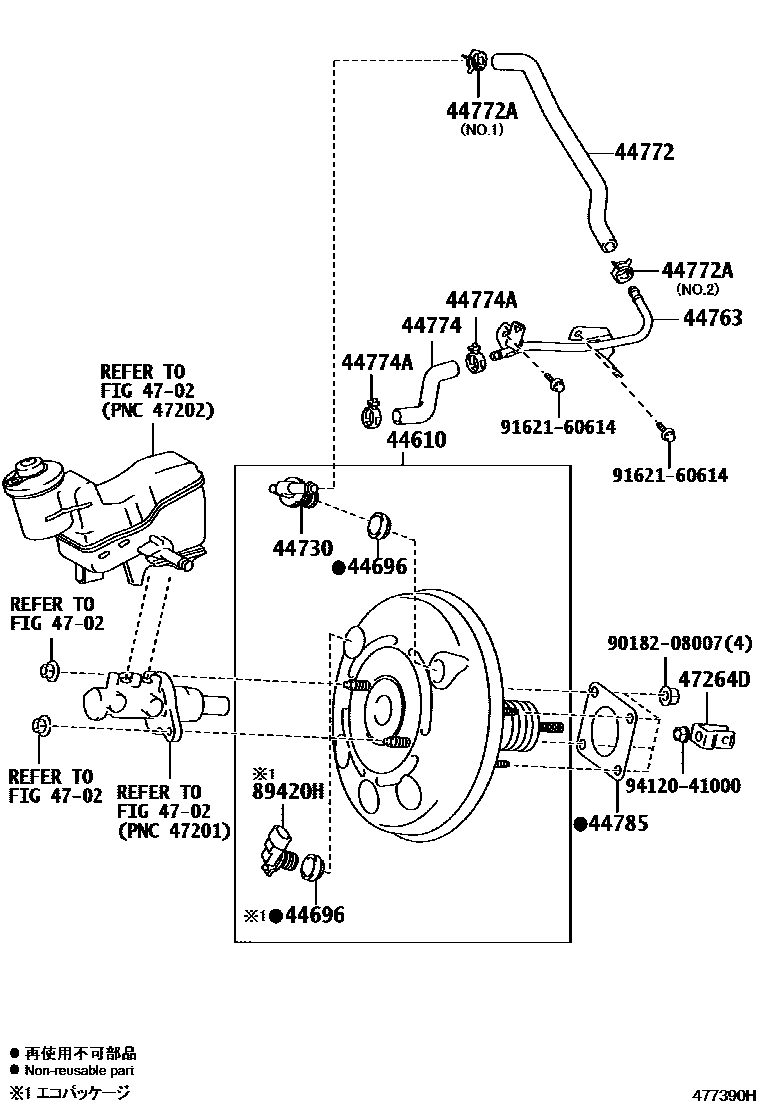

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-52810iNCP12#,NSP12#¥46,600201011-201310

main44610-52830iNCP12#,NSP12#¥46,600201310-201405

main44610-52F50iNCP12#¥38,800201405

main44610-52F70iNSP12#¥46,600201405

44696GROMMET, CHECK VALVE

main90480-24439iNSP120¥390201405

main90480-24439iNCP12#,NSP12#¥390201011-201405

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iNCP12#,NSP12#¥1,310201011-201405

44763TUBE, BOOSTER VACUUM

main44763-52030iNCP12#¥1,200201011-201405

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52120iNCP12#¥1,360201011-201405

main44772-52220iNSP12#¥770201405

main44772-52230iNSP12#¥770201405

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNCP12#¥230201209-201607

main90467-16014iNCP12#¥230201011-201209

main96133-41500iNCP12#¥140201011-201209

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52070iNCP12#¥400201011-201405

main44774-52170iNSP12#¥770201405

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNSP12#¥230201405-201607

main96133-41500iNCP12#¥140201011-201501

main96136-41801iNCP12#¥160201502-201607

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP12#,NSP12#¥220201011-201405

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNCP12#,NSP12#¥210201011-201405

89420HSENSOR ASSY, VACUUM

9018208007

main90182-08007¥100

9162160614

main91621-60614¥120

9412041000

main94120-41000¥80

15 parts on this diagram · 3 diagrams in section
