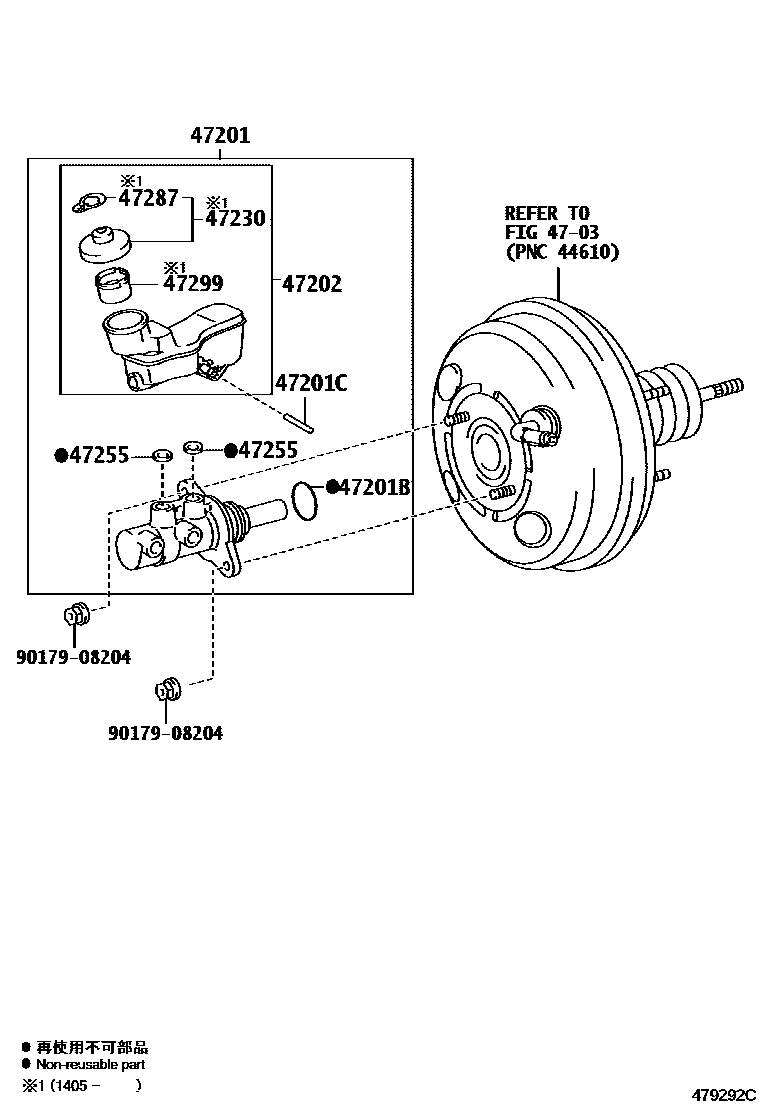

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52480iNCP12#,NSP12#201011-201202

sub47201-52481

main47201-52481iNCP12#,NSP12#201203-201204

sub47201-52482

main47201-52482iNCP12#,NSP12#201205-201310

main47201-52490iNCP120..S201011-201202

sub47201-52491

main47201-52490iNSP120201111-201202

sub47201-52491

main47201-52491iNCP120..S201203-201204

sub47201-52492

main47201-52491iNSP120201203-201204

sub47201-52492

main47201-52492iNCP120..S201205-201310

main47201-52492iNCP120..S201205-201310

main47201-52492iNCP12#,NSP12#201310-201405

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNCP12#,NSP12#201011-201310

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP12#,NSP12#201011-201310

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52260iNCP12#,NSP12#201011-201405

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP12#,NSP12#201405

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iNCP12#,NSP12#201011-201310

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP12#,NSP12#201405

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNCP12#,NSP12#201405

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
