TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36202BRING, O(FOR TRANSFER OUTPUT REAR SHAFT)
36212LRING, SHAFT SNAP
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201PGEAR KIT, TRANSFER
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41319CASE, TRANSFER RING GEAR MOUNTING
9011408081
main90114-08081
9017924013
main90179-24013
9155281030
main91552-81030

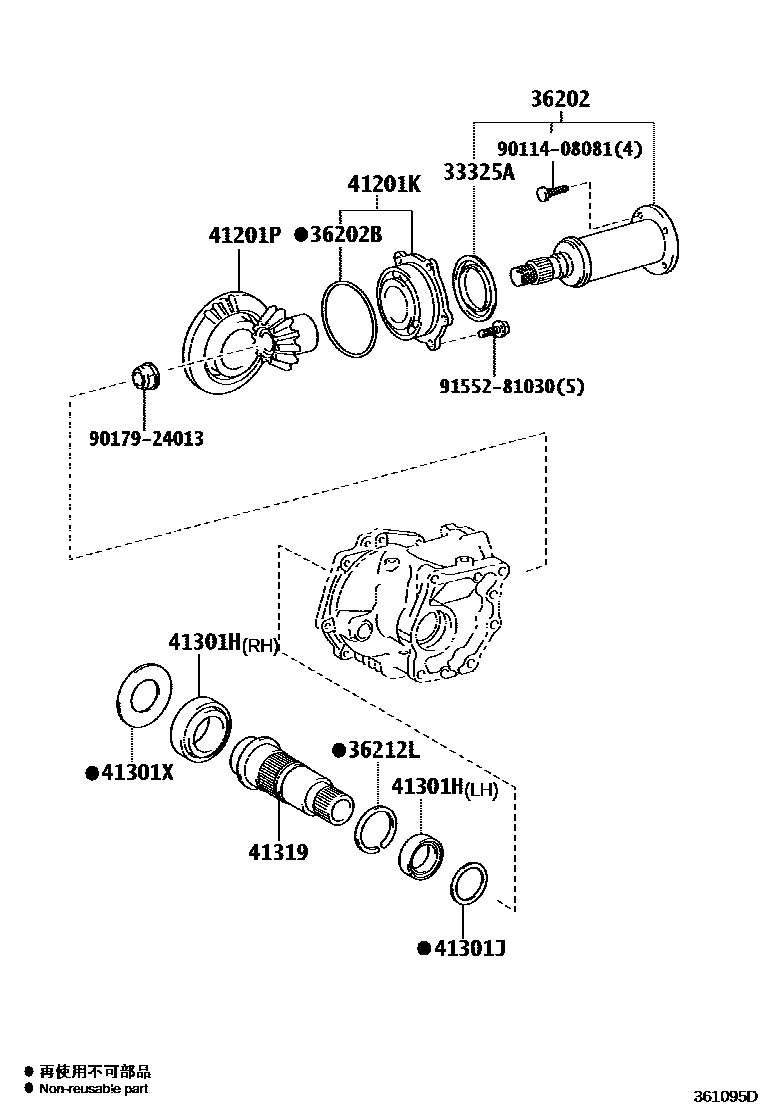

13 parts on this diagram · 1 diagram in section
