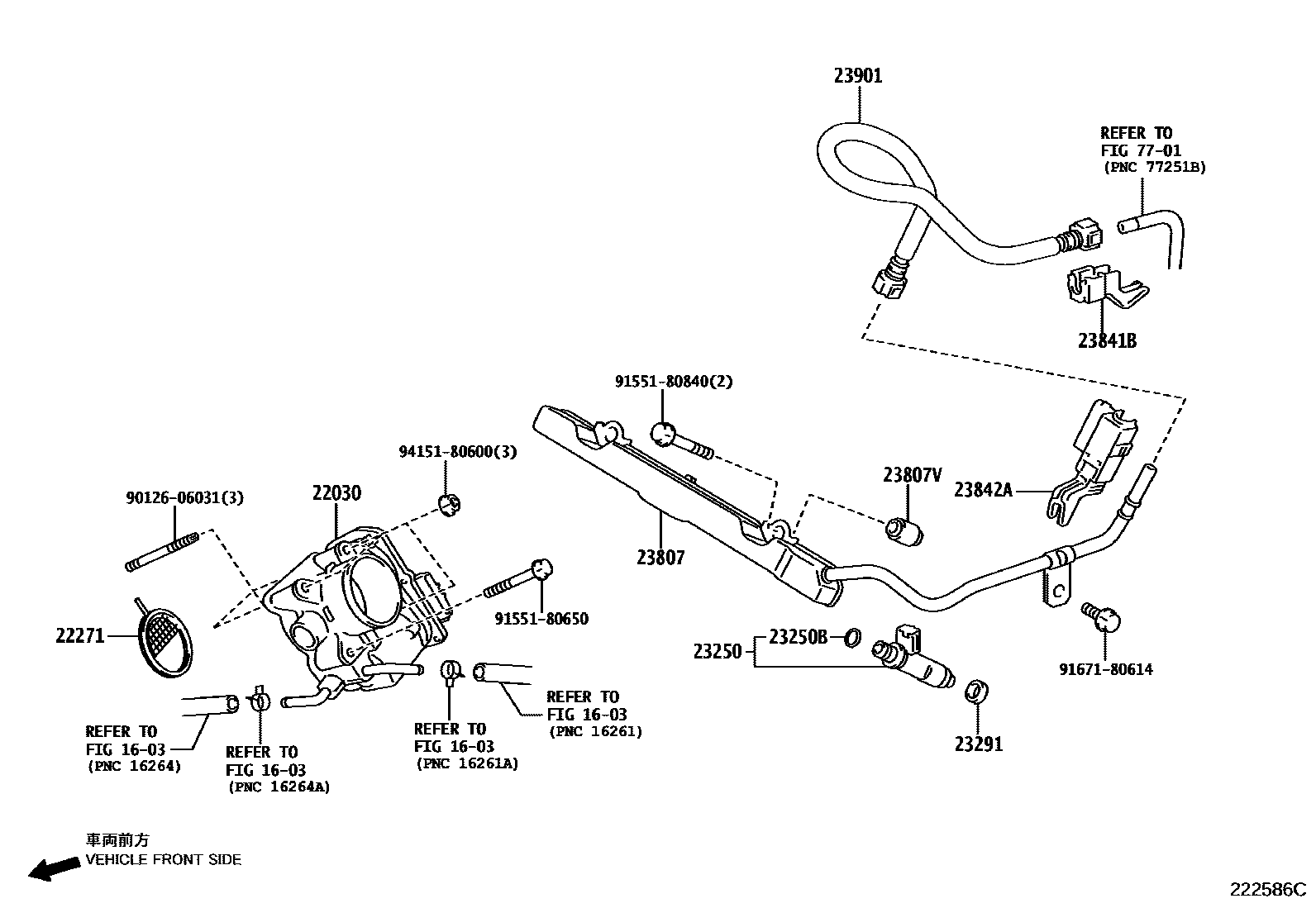

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NCP120,122201011-201208

main22030-21040i1NZFE..NCP120,122201405

main22030-47010i1NRFE..NSP12#201011-201405

main22030-47060i1NRFKE..NSP12#201405-201502

main22030-47090i1NRFKE..NSP12#201502

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NCP12#201405

main22271-47010i1NRFE..NSP12#201011-201405

main22271-47050i1NRFKE..NSP12#201405

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NCP125201405

sub23209-21120

main23209-21100×4i1NZFE..NCP120,122201208-201405

sub23209-21130

main23209-49225×4i1NRFE..NSP12#201011-201204

main23209-49226×4i1NRFE..NSP12#201204-201405

main23209-49245×4i1NRFKE..NSP12#201405

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1N#..NCP12#,NSP12#201405

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1N#..NCP12#,NSP12#201405

main23291-41010×4i1NZFE..NCP12#201011-201106

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NCP12#201011-201405

main23807-21031i1NZFE..NCP12#201411

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NCP12#201011-201405

main23891-47010×2i1NRFE..NSP12#201011-201302

main23891-47030×2i1NRFE..NSP12#201302-201405

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NRFE..NSP12#201011-201405

main23841-37090i1NRFKE..NSP12#201405

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE..NCP12#201011-201210

main23841-21050i1NRFKE..NSP12#201405

main23841-37090i1NZFE..NCP12#201405

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE..NCP12#201011-201405

main23901-47040i1NRFE..NSP12#201011-201405

main23901-47080i1NRFKE..NSP12#201405

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 3 diagrams in section
