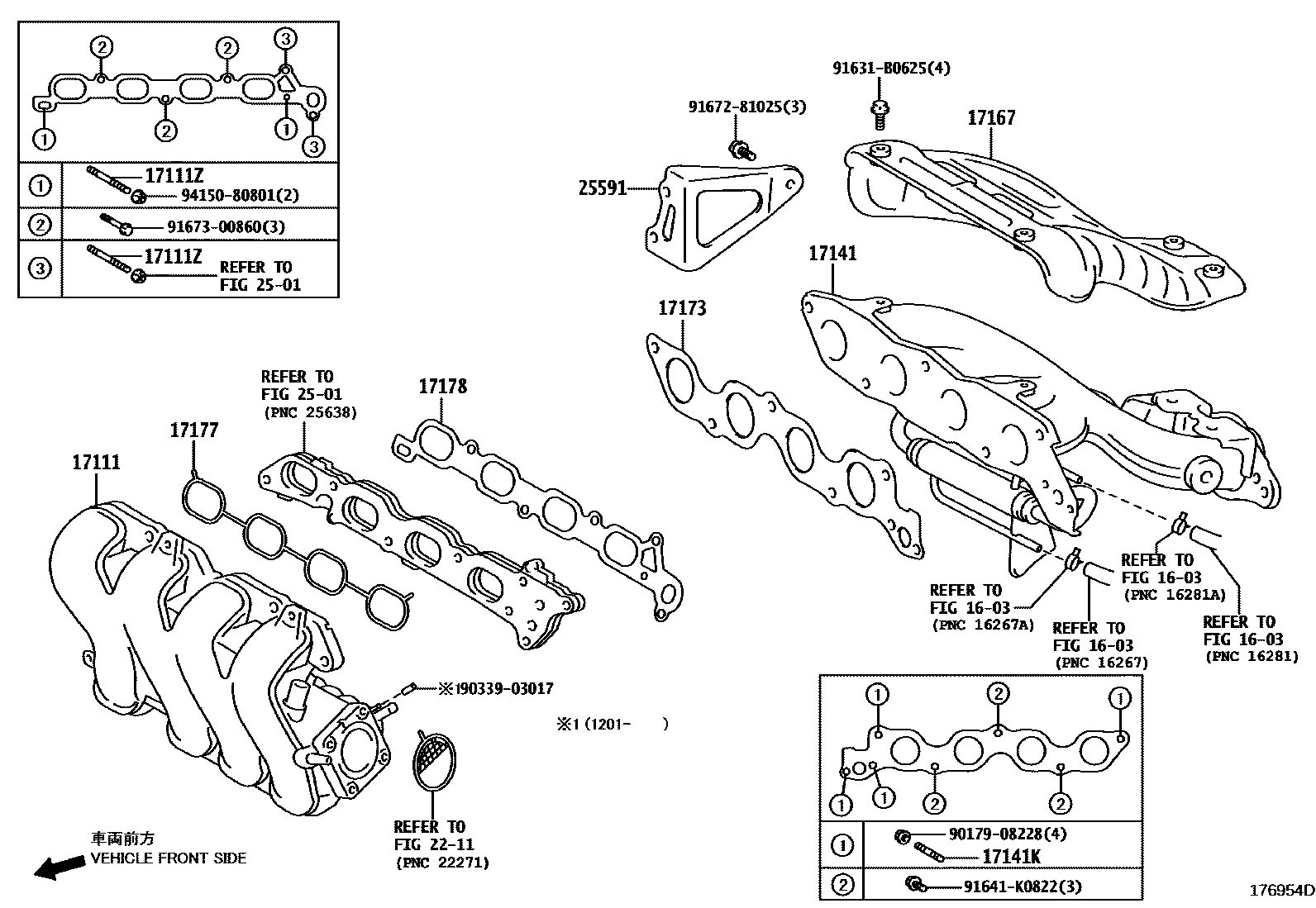

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

1603

17111MANIFOLD, INTAKE

main17101-21070i1NZFE..NCP12#201011-201204

sub17101-21071

sub90339-03017

main17101-21071i1NZFE..NCP12#201204-201405

main17120-47031i1NRFE..NSP12#201011-201111

sub17120-47032

main17120-47032i1NRFE..NSP12#201111-201405

main17120-47090i1NRFKE..NSP12#201405

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08049i1NZFE..NCP12#201011-201405

main90126-08060i1NRFE..NSP12#201011-201405

17141MANIFOLD, EXHAUST

main17104-21041i1NZFE..NCP120,122201011-201208

main17140-21120i1NZFE..NCP120,122201208-201405

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037i1NZFE..NCP12#201011-201405

main90126-08063i1NRFE..NSP12#201011-201405

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NCP120,122201011-201208

main17167-21160i1NZFE..NCP125201011-201405

main17167-21180i1NZFE..NCP120,122201208-201402

sub17167-21181

main17167-21181i1NZFE..NCP120,122201403-201405

main17167-47011i1NRFKE..NSP12#201011-201405

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21030i1NZFE..NCP12#201011-201405

main17173-47021i1NRFKE..NSP12#201011-201405

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21030i1NZFE..NCP12#201011-201405

main17177-47010i1NRFE..NSP12#201011-201111

sub17177-47011

main17177-47011i1NRFE..NSP12#201111-201405

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-21010i1NZFE..NCP12#201011-201405

2211

2501

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE..NCP120,122201011-201208

main25591-21080i1NZFE..NCP120,122201208-201405

9017908228

main90179-08228

9033903017

main90339-03017

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167300860

main91673-00860

9415080801

main94150-80801

19 parts on this diagram · 5 diagrams in section
