STANDARD TOOL

09110JACK ASSY

main09111-12230iNCP12#,NSP12#201108-201405

main09111-52060iNCP12#,NSP12#201011-201107

09113HANDLE, JACK

main09113-20050iNCP12#,NSP12#201110-201405

main09113-52040iNCP12#,NSP12#201011-201109

sub09113-20050

09120BAG, TOOL

main09120-16030

main09120-52040

09120ACASE, TOOL

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iNCP12#,NSP12#201011-201405

426A1BAND, TIRE REPAIR KIT

main426A1-52010iNCP12#,NSP12#201011-201405

44890DCOMPRESSOR ASSY, AIR

main44890-52020iNCP12#,NSP12#201011-201204

sub44890-52021

main44890-52021iNCP12#,NSP12#201205-201405

sub44890-52022

51960HOOK ASSY, FRONT

main51960-47020iNCP12#,NSP12#201011-201509

main51960-52090iNCP12#,NSP12#201510

58796CHOOK, JACK CLAMP

main58796-33030iNCP12#,NSP12#201011-201405

64747ACARPET, JACK COVER

75219FCOVER, TOOL BOX

main75219-52010-C0iNCP120,NSP122..S,X201011-201607

BLACK,TRIM2#

main75219-52010-C0iNCP120,125,NSP120..LEPIC201011-201405

BLACK,TRIM2#,8#

main75219-52010-C0iNCP120,122..G;NCP125,NSP120..G,X201011-201607

BLACK,TRIM2#,4#

75231ABOX, TOOL BAG

main75231-52010iNCP12#,NSP12#201011-201405

C6048REPAIR SET, TIRE

main42683-52021iNCP12#,NSP12#201011-201405

main42683-52021iNCP12#,NSP12#201405

C6048ASEALANT, REPAIR TIRE

mainC604852020iNCP12#,NSP12#201011-201204

subC6048-52021

mainC604852021iNCP12#,NSP12#201205-201607

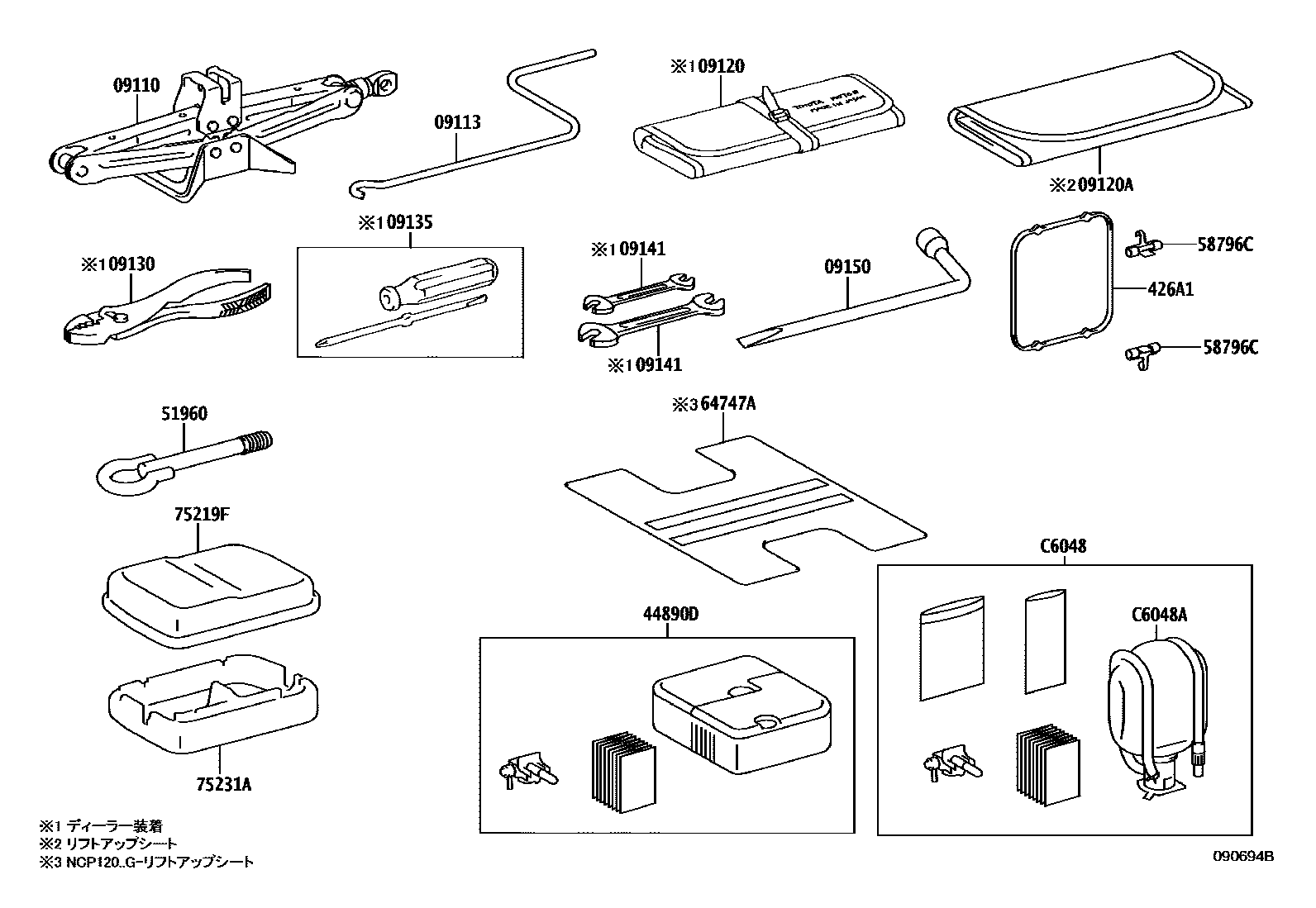

17 parts on this diagram · 1 diagram in section
