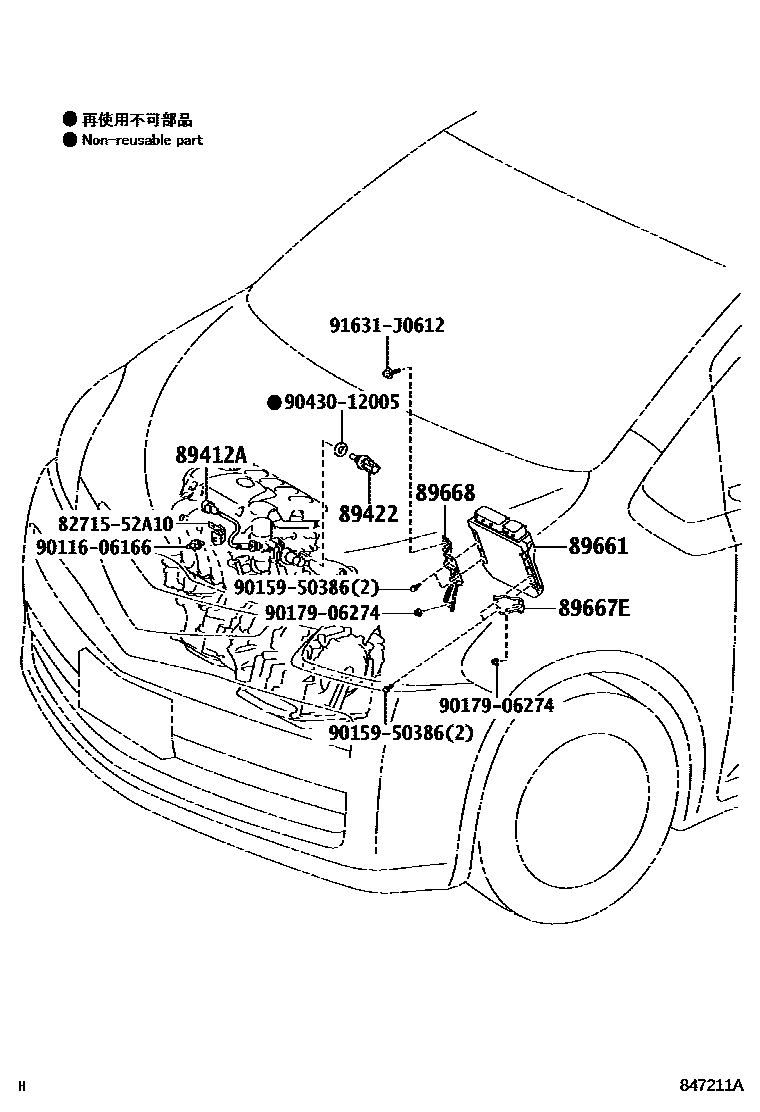

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNCP100200509-200712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNCP10#,SCP100200509-200712

89661COMPUTER, ENGINE CONTROL

main89661-52D20iSCP100200509-200712

main89661-52D30iNCP100200509-200712

main89661-52D40iNCP105200509-200712

main89661-52J00iSCP100200712

main89661-52J10iNCP100200712-200910

main89661-52P90iNCP100200910

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52190iNCP10#,SCP100200509-200712

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52210iNCP10#,SCP100200509-200712

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10

9011606166

main90116-06166

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

91631J0612

main91631-J0612

11 parts on this diagram · 2 diagrams in section
