23221PUMP, FUEL

main23220-21131i200509-200607

sub23220-21132

main23220-21132i200608-200712

main23220-21141i200509-200607

sub23220-21142

main23220-21142i200608-200712

main23220-21200i200904-201008

sub23220-21211

sub77785-52110

main23220-21210i200712-200903

sub23220-21211

sub77785-12010

sub77785-52101

sub77785-52110

main23220-21220i200712-201008

sub23220-21221

sub77785-52110

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i200509-200707

main23280-21010i200509-201008

main23280-21010i200509-200707

main23280-21020i200708-200712

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i200509-200712

main90301-15024i200509-200712

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32020i200509-200712

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-52120i200509-200704

sub77024-52121

main77024-52121i200705-200712

sub77024-52122

main77024-52140i200509-200704

sub77024-52141

main77024-52141i200705-200712

main77024-52150i200511-200704

sub77024-52151

main77024-52150i200511-200704

sub77024-52151

main77024-52151i200705-200712

main77024-52170i200712-200910

sub77024-52171

main77024-52171i200910-201008

main77024-52190i200712-200910

sub77024-52191

main77024-52191i200910-201008

sub77024-52192

main77024-52210i200712-200910

sub77024-52211

main77024-52210i200712-200910

sub77024-52211

main77024-52210i200712-200910

sub77024-52211

main77024-52211i200910-201008

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-52210i200509-200712

77100TANK ASSY, FUEL

main77001-52160i200509-200809

sub77001-52161

main77001-52161i200810

main77001-52190i200712-200803

sub77001-52191

main77001-52190i200712-200803

sub77001-52191

main77001-52190i200712-200803

sub77001-52191

main77001-52190i200511-200712

sub77001-52191

main77001-52190i200511-200712

sub77001-52191

main77001-52191i200804

main77001-52200i200509-200710

sub77001-52201

main77001-52200i200509-200710

sub77001-52201

main77001-52201i200710-200712

main77001-52201i200712

main77001-52201i200710-200712

77131CSUB-TANK, FUEL, NO.1

main77131-52071i200511-200712

sub77131-52110

main77131-52071i200509-200712

sub77131-52110

main77131-52071i200509-200712

sub77131-52110

main77131-52081i200509-200610

sub77131-52082

main77131-52082i200611-200712

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010i200712-201008

main77169-52010i200509-200712

main77169-52010i200511-200712

main77169-52010i200712-201008

main77169-52040i200509-201008

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52050i200511-200712

main77174-52050i200509-200712

main77174-52050i200712-201010

main77174-52070i200712

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-52210i200509-200712

main77201-52210i200712-200801

main77201-52211i200801

main77201-52240i200509-200801

sub77201-52440

main77201-52241i200801

sub77201-52242

main77201-52300i200511-200712

main77201-52300i200712

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52090i200509-200712

sub77209-52091

main77209-52090i200509-200712

sub77209-52091

main77209-52090i200712-200801

sub77209-52091

main77209-52091i200802

main77209-52110i200509-200712

sub77209-52111

main77209-52130i200511-200712

main77209-52130i200712

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52130i200509-200712

sub77213-52190

main77213-52130i200509-200712

sub77213-52190

main77213-52130i200712-200908

sub77213-52190

main77213-52150i200509-200712

main77213-52170i200511-200712

main77213-52170i200712

main77213-52190i200909

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77215-51010i200509-200711

main77215-51010i200712

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-52050i200509-200712

main77226-52050i200712-200801

main77226-52051i200801

main77226-52100i200712

main77226-52100i200511-200712

77227ATUBE, FUEL TANK EVAPORATION VENT

main77226-52071i200801

main77227-52020i200509-200712

main77227-52020i200712-200801

main77227-52040i200509-200801

main77227-52050i200712

main77227-52050i200511-200712

main77227-52050i200712

77229CCLAMP, BREATHER TUBE

main77229-52060i200712

main77229-52060i200511-200712

main77285-52080i200509-200711

main77285-52080i200712

77229ECLAMP, BREATHER TUBE

main77229-52040i200509-200712

main77229-52040i200509-200711

77241VCLIP, TUBE JOINT

main77241-32060i200712

main77241-32060i200509-200712

main77241-32060i200511-200712

main77241-32060i200712

main77241-33011i201005

main77241-60320i200509-200712

main77241-60320i200712-201004

77262TUBE, FUEL EMISSION, NO.2

main77028-52010i200509-200712

sub77028-52020

main77028-52010i200509-200712

sub77028-52020

main77028-52010i200712

sub77028-52020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52030i200509-200712

main77277-52030i200509-200801

main77277-52030i200801

main77277-52031i200801

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52110i200511-200712

main77289-52110i200509-200712

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52010i200509-200712

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-52020i200509-200712

main77296-52020i200712

main77296-52020i200511-200712

main77296-52030i200509-200712

main77296-52030i200712

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030i200509-200712

77310ACAP ASSY, FUEL TANK

main77300-52030i200509-200712

77316GASKET, FUEL TANK CAP

main77316-52020i200509-200602

sub77316-52040

77350LID ASSY, FUEL FILLER OPENING

main77350-52140i200509-201008

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010i200509-200801

main77366-52011i200801-201008

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-52010i200509-200712

77391RING, FUEL INLET BOX

main77391-12020i200509-200712

77512BRACKET, FUEL TANK, REAR

main77512-35140i200509-200712

77606APROTECTOR, FUEL TANK FILLER PIPE

main77606-52060i200509-201008

main77606-52080i200511-200712

main77606-52080i200712-201008

77653ACUSHION, FUEL TANK, NO.3

main77652-52040i200509-200712

main77652-52040i200712

main77652-52050i200511-200712

main77652-52050i200712

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-52010i200509-200712

main77701-52010i200712

77746FILTER, CHARCOAL CANISTER, NO.2

main77746-33010i200509-200712

main77746-33010i200509-200801

main77746-33010i200801

77759HOSE, CHARCOAL CANISTER

main77759-52010i200509-200712

main77759-52010i200509-200801

main77759-52010i200712

77785HARNESS, FUEL PUMP

main77785-52060i200509-200712

main77785-52060i200511-200712

8401

7728152040BRACKET, FUEL MAIN TUBE, NO.1

main77281-52040

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020

9011906741

main90119-06741

9011908C05

main90119-08C05

9011910909

main90119-10909

9015960602

main90159-60602

9017906219

main90179-06219

9026905049

main90269-05049

9026906013

main90269-06013

9030108020

main90301-08020

9046022002

main90460-22002

9046046003

main90460-46003

9046050008

main90460-50008

9046612001

main90466-12001

9046712056

main90467-12056

9046904004

main90469-04004

9046906005

main90469-06005

9054106059

main90541-06059

9092307032

main90923-07032

9613251300

main96132-51300

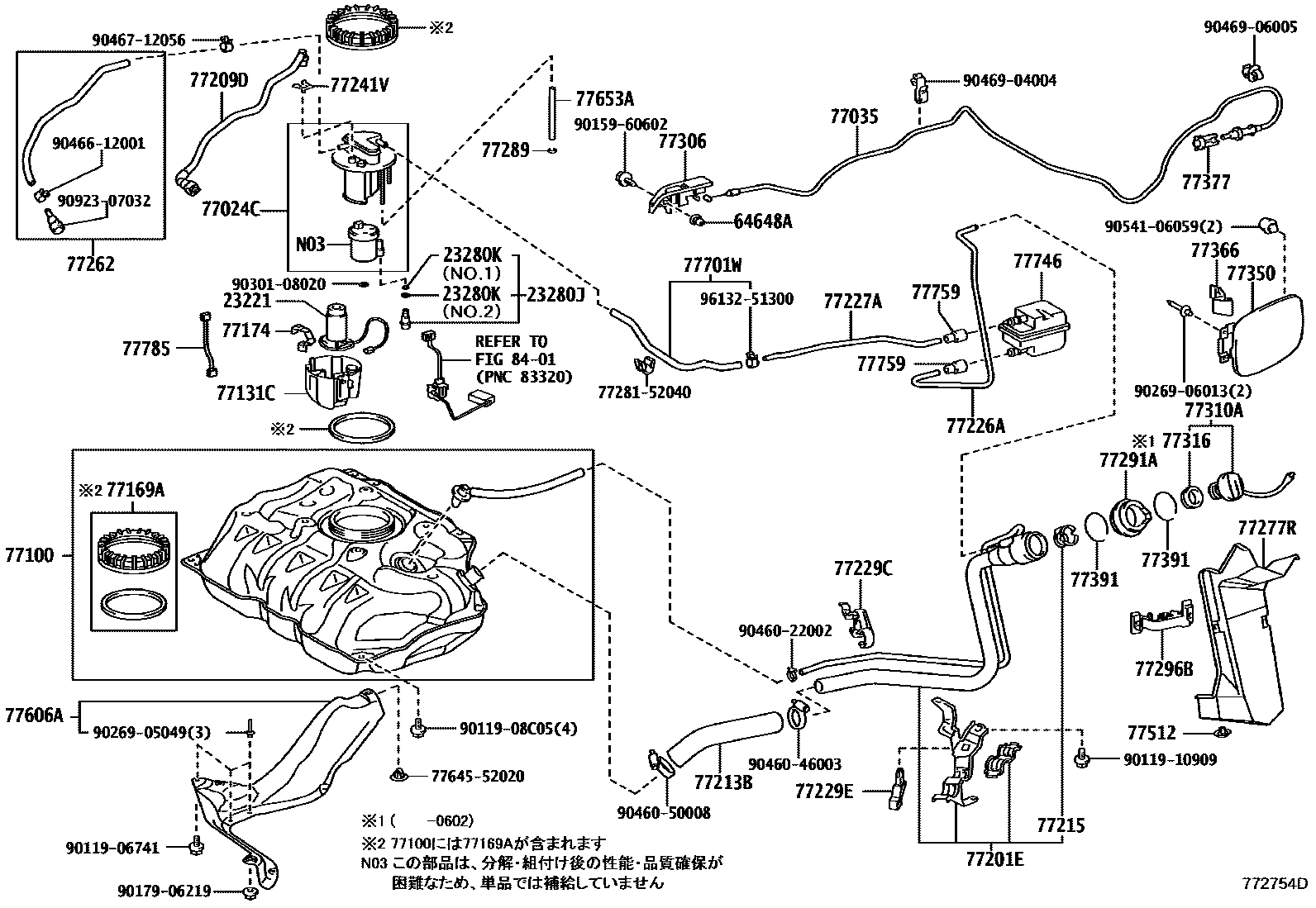

FUEL TANK & TUBE
