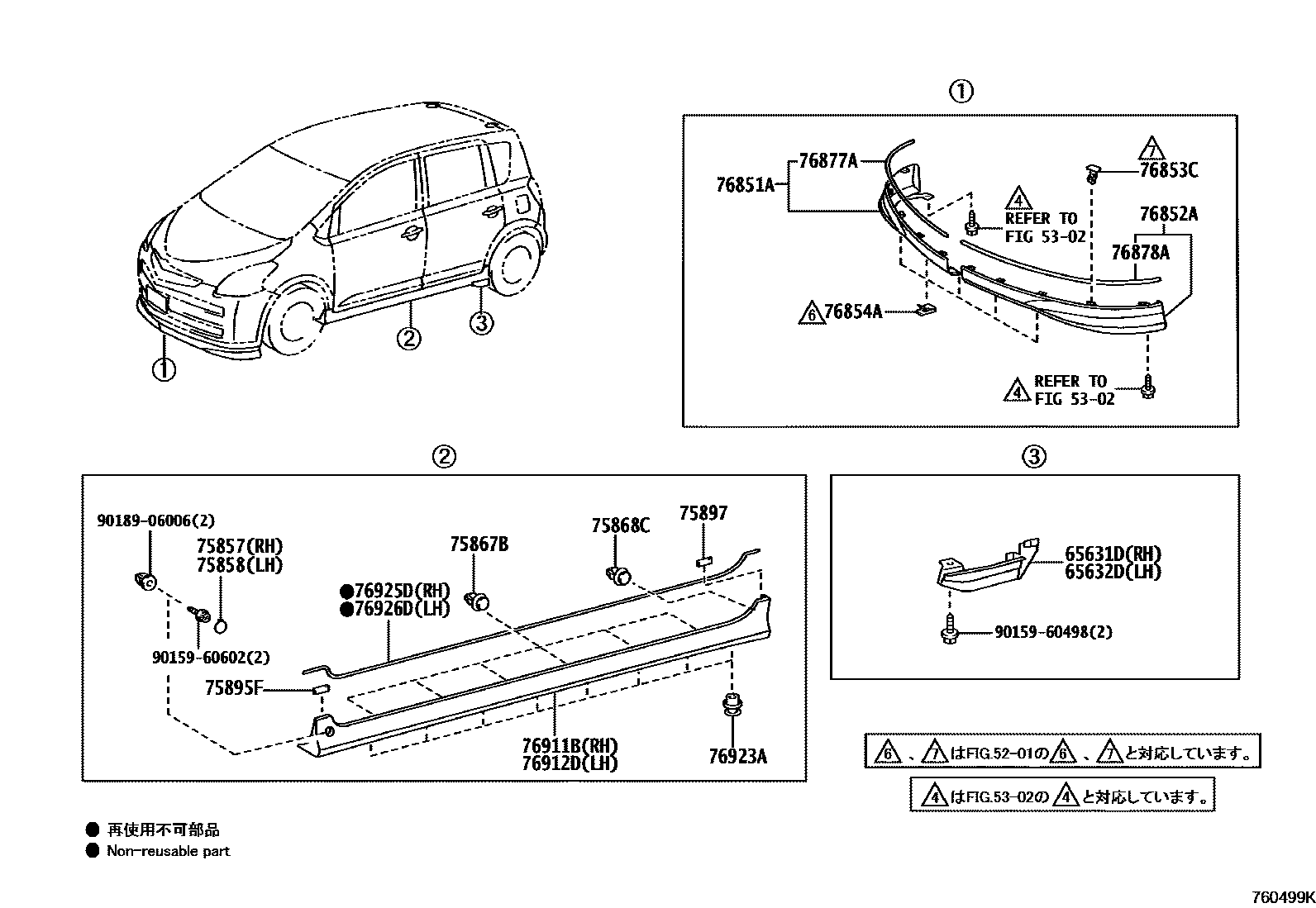

MUDGUARD & SPOILER
5302
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75857COVER, ROCKER PANEL MOULDING, RH
main75857-52030
75858COVER, ROCKER PANEL MOULDING, LH
main75858-52020
75867BCLIP, ROCKER PANEL MOULDING
75868CCLIP, REAR SPOILER, NO.2
75895FTAPE, MOULDING, NO.1
75897TAPE, MOULDING, NO.3
main75897-52011
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76853CRETAINER, FRONT SPOILER, NO.1
76854ARETAINER, FRONT SPOILER, NO.2
76877APROTECTOR, FRONT SPOILER
76878APROTECTOR, FRONT SPOILER SIDE, LH
76911BMUDGUARD, SIDE, RH
76912DMUDGUARD, SIDE, LH
76923ARETAINER, SIDE MUDGUARD
76925DPROTECTOR, SIDE MUDGUARD, RH
76926DPROTECTOR, SIDE MUDGUARD, LH
9015960498
main90159-60498
9015960602
main90159-60602
9018906006
main90189-06006
23 parts on this diagram · 3 diagrams in section
