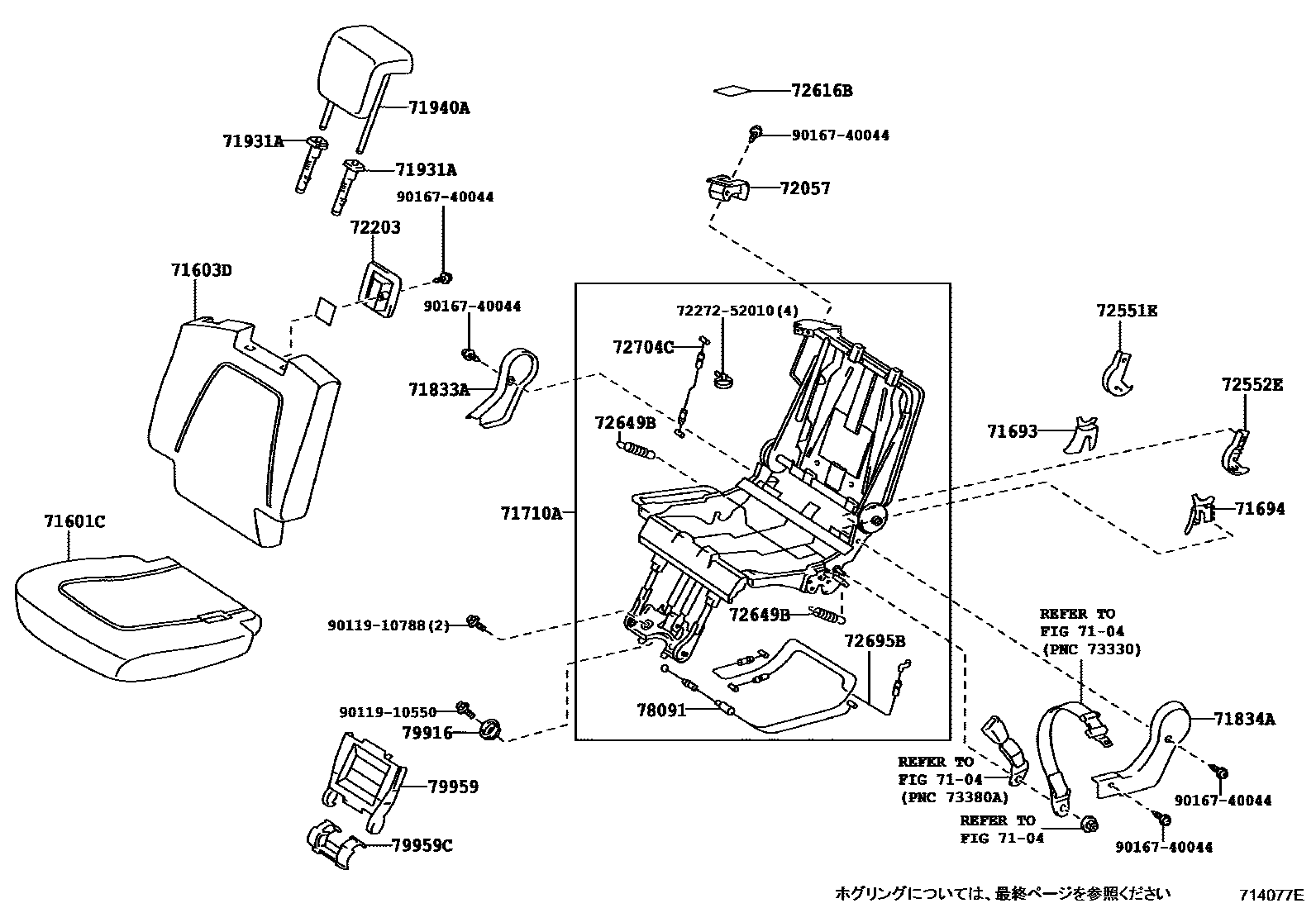

REAR SEAT & SEAT TRACK

0001 1RH 0002 1LH 0003 1 0004 1RH:�������-��(�����) 0005 1LH:�������-��(�����) 0006 1�������

7104

71601CPAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH

main71601-52D10-B1iNCP100200509-200712

CLOVE BROWN,TRIM11

main71601-52D10-B2iNCP100200509-200712

DARK GRAY,TRIM10

main71601-52D30-B1iNCP105..X200509-200712

CLOVE BROWN,TRIM1#

sub71601-52D31

main71601-52D40-B1iNCP105..G200509-200712

CLOVE BROWN,TRIM11

main71601-52D40-B2iNCP105..G200509-200712

DARK GRAY,TRIM10

main71601-52J30-B0iSCP100200712-201008

DK.GRAY,TRIM10

sub71601-52J31

main71601-52J30-B2iSCP100200712-201008

GREGE,TRIM12

sub71601-52J31

main71601-52J40-B0iNCP100200712-201008

DK.GRAY,TRIM10

main71601-52J40-B2iNCP100200712-201008

GREGE,TRIM12

main71601-52J60-B0iNCP105..X200712-201008

DK.GRAY,TRIM10

sub71601-52J61

main71601-52J60-B2iNCP105..X200712-201008

GREGE,TRIM12

sub71601-52J61

main71601-52J70-B0iNCP105..G200712-201008

DK.GRAY,TRIM10

main71601-52J70-B2iNCP105..G200712-201008

GREGE,TRIM12

main71601-52D20-B1iNCP100200509-200712

sub71601-52D21

main71601-52D50-B1iNCP105..G200509-200712

sub71601-52D51

main71601-52E00-B3supersedes 71601-52D00-B1iSCP100200511-200712

sub71601-52E01

main71601-52F00-B1iNCP100200511-200712

main71601-52F70-B0supersedes 71601-52D00-B1iSCP100200511-200712

sub71601-52F71

main71601-52F80-B1iNCP100200511-200712

main71601-52J90-B2supersedes 71601-52D00-B1iSCP100200712-201008

sub71601-52J91

main71601-52K00-B2iNCP100200712-201008

main71601-52K10-B2supersedes 71601-52D00-B1iSCP100200712-201008

sub71601-52K11

main71601-52K20-B2iNCP100200712-201008

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52D40-B3iNCP100200509-200712

CLOVE BROWN,TRIM11

main71603-52D40-B4iNCP100200509-200712

DARK GRAY,TRIM10

main71603-52D60-B2iNCP105..X200509-200712

CLOVE BROWN,TRIM1#

sub71603-52D61

main71603-52D70-B3iNCP105..G200509-200712

CLOVE BROWN,TRIM11

main71603-52D70-B4iNCP105..G200509-200712

DARK GRAY,TRIM10

main71603-52L40-B0iSCP100200712-201008

DK.GRAY,TRIM10

sub71603-52L41

main71603-52L40-B2iSCP100200712-201008

GREGE,TRIM12

sub71603-52L41

main71603-52L50-B0iNCP100200712-201008

DK.GRAY,TRIM10

main71603-52L50-B2iNCP100200712-201008

GREGE,TRIM12

main71603-52L70-B0iNCP105..X200712-201008

DK.GRAY,TRIM10

sub71603-52L71

main71603-52L70-B2iNCP105..X200712-201008

GREGE,TRIM12

sub71603-52L71

main71603-52L80-B0iNCP105..G200712-201008

DK.GRAY,TRIM10

main71603-52L80-B2iNCP105..G200712-201008

GREGE,TRIM12

main71603-52D50-B2iNCP100200509-200712

sub71603-52D51

main71603-52D80-B2iNCP105..G200509-200712

sub71603-52D81

main71603-52F60-B6supersedes 71603-52D30-B2iSCP100200511-200712

sub71603-52F61

main71603-52G70-B1iNCP100200511-200712

main71603-52L60-B0iNCP100200712-201008

sub71603-52L61

main71603-52L90-B0iNCP105..G200712-201008

sub71603-52L91

main71603-52M00-B2supersedes 71603-52D30-B2iSCP100200712-201008

sub71603-52M01

main71603-52M10-B2iNCP100200712-201008

71693COVER, REAR SEAT CUSHION HINGE, LOWER RH

main71693-52070-B0×2iNCP100,SCP100200509-200712

DK.GRAY,TRIM10

main71693-52070-E0×2iNCP100,SCP100200712-201008

main71693-52070-E1×2iNCP100,SCP100200509-200712

CLOVE BROWN,TRIM11,4#

71694COVER, REAR SEAT CUSHION HINGE, LOWER LH

main71694-52060-B0×2iNCP100,SCP100200712-201008

DK.GRAY,TRIM10,12

main71694-52060-E0×2iNCP100,SCP100200712-201008

main71694-52060-E1×2iNCP100,SCP100200509-200712

CLOVE BROWN,TRIM11,4#

71710AFRAME ASSY, REAR SIDE SEAT, RH

main71710-52020supersedes 71710-52010iNCP100,SCP100200511-200712

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52080-B0iNCP105200712-201008

DK.GRAY,TRIM10,12

main71833-52080-E0iNCP105200712-201008

GREGE,TRIM12

main71833-52080-E1iNCP105200509-200712

CLOVE BROWN,TRIM11,4#

main71833-52090-B0iNCP100,SCP100200509-200712

DK.GRAY,TRIM10

main71833-52090-E0iNCP100,SCP100200712-201008

main71833-52090-E1iNCP100,SCP100200509-200712

CLOVE BROWN,TRIM11,4#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71878-52110-B0iNCP100,SCP100200509-200712

DK.GRAY,TRIM10

main71878-52110-E0iNCP100,SCP100200712-201008

GREGE,TRIM12

main71878-52110-E1iNCP100,SCP100200509-200712

CLOVE BROWN,TRIM11,4#

main71879-52120-B0iNCP105200712-201008

DK.GRAY,TRIM10,12

main71879-52120-E0iNCP105200712-201008

GREGE,TRIM12

main71879-52120-E1iNCP105200509-200712

CLOVE BROWN,TRIM11,4#

main71878-52130-E0iNCP100,SCP100200511-200712

main71878-52130-E1iNCP100,SCP100200712-201008

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-B0×2iNCP10#,SCP100200712-201008

main71930-44020-E0×2iNCP10#,SCP100200712-201008

main71930-47010-B2×2iNCP10#..G200509-200712

main71930-47010-E2×2iNCP10#..G200509-200712

main71931-47010-B2×2iNCP10#..G200509-200712

sub71931-42020

main71931-47010-E3×2iNCP10#..G200509-200712

sub71931-42020

main71931-47010-E4×2iNCP10#,SCP100200712-201008

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-52310-B1×2iNCP100200509-200712

DARK GRAY,TRIM10

main71940-52310-E0×2iNCP100200509-200712

CLOVE BROWN,TRIM11,4#

main71940-52390-E1×2iNCP105..X200509-200712

CLOVE BROWN,TRIM1#

main71940-52400-B1×2iNCP105..G200509-200712

DK.GRAY,TRIM10

main71940-52400-E0×2iNCP105..G200509-200712

CLOVE BROWN,TRIM11

main71940-52520-B0×2iSCP100200712-201008

DK.GRAY,TRIM10

main71940-52520-E2×2iSCP100200712-201008

GREGE,TRIM12

main71940-52540-B0×2iNCP100200712-201008

DK.GRAY,TRIM10

main71940-52540-E1×2iNCP100200712-201008

GREGE,TRIM12

main71940-52590-B0×2iNCP105..X200712-201008

DK.GRAY,TRIM10

main71940-52590-E2×2iNCP105..X200712-201008

GREGE,TRIM12

main71940-52600-B0×2iNCP105..G200712-201008

DK.GRAY,TRIM10

main71940-52600-E1×2iNCP105..G200712-201008

GREGE,TRIM12

main71940-52320-B2×2iNCP100200509-200712

main71940-52410-B1×2iNCP105..G200509-200712

main71940-52440-E0×2supersedes 71940-52300-E2iSCP100200511-200712

main71940-52450-E0iNCP100200511-200712

main71940-52620-E2supersedes 71940-52300-E2iSCP100200712-201008

main71940-52630-E1iNCP100200712-201008

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-52020-B0iNCP105200712-201008

DK.GRAY,TRIM10,12

main72057-52020-E0iNCP105..G200509-200712

CLOVEBROWN,TRIM11,4#

main72057-52020-E1iNCP105200712-201008

GREGE,TRIM12

main72057-52060-B0iNCP100,SCP100200712-201008

DK.GRAY,TRIM10,12

main72057-52060-E0iNCP100,SCP100200712-201008

main72057-52060-E1iNCP100,SCP100200509-200712

CLOVE BROWN,TRIM11,4#

72203HANDLE SUB-ASSY, REAR SEAT TRACK

main72203-52040-B0×2supersedes 72203-52040-E1iNCP100200509-200712

DK.GRAY,TRIM10

main72203-52040-E1×2supersedes 72203-52040-B0iNCP100200509-200712

CLOVEBROWN,TRIM1#

72551ECOVER, RECLINING HINGE, RH

main72551-52040-B0×2iNCP100,SCP100200712-201008

DK.GRAY,TRIM10,12

main72551-52040-E0×2iNCP100,SCP100200712-201008

main72551-52040-E1×2iNCP100,SCP100200509-200712

CLOVE BROWN,TRIM11,4#

72552ECOVER, RECLINING HINGE, LH

main72552-52040-B0×2iNCP100,SCP100200509-200712

DK.GRAY,TRIM10

main72552-52040-E0×2iNCP100,SCP100200712-201008

main72552-52040-E1×2iNCP100,SCP100200509-200712

CLOVE BROWN,TRIM11,4#

72616BCOVER, REAR SEAT LOCK STRIKER

main72615-52070-B0×2iNCP105200712-201008

DK.GRAY,TRIM10,12

main72615-52070-E0×2iNCP105..G200509-200712

CLOVEBROWN,TRIM11,4#

main72615-52070-E1×2iNCP105200712-201008

GREGE,TRIM12

main72615-52090-B0×2iNCP100200509-200712

DK.GRAY,TRIM10

main72615-52090-E0×2iNCP100200509-200712

CLOVEBROWN,TRIM1#

main72615-52090-E1×2supersedes 72615-52090-E0iNCP100,SCP100200712-201008

72649BSPRING, REAR SEAT CUSHION SUPPORT

72695BCABLE, REAR SEAT LOCK CONTROL, RH

main72695-52030supersedes 72695-52020iNCP100,SCP100200511-200712

72704CCABLE, REAR NO.2 SEAT RECLINING CONTROL

main72704-52120iNCP105200509-200712

main72704-52140supersedes 72704-52070iNCP100,SCP100200712

78091CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

main78091-52020supersedes 78091-52010iNCP100,SCP100200712

79916BRACKET, SEAT LEG, NO.2

main79916-52010

79959COVER, RR SEAT LEG

main79959-52070-B0supersedes 79959-52050-B0iNCP100,SCP100200712-201008

main79959-52070-E1supersedes 79959-52050-E1iNCP100,SCP100200511-200712

main79959-52090-B0supersedes 79959-52050-B0iNCP100,SCP100200712-201008

main79959-52090-E1supersedes 79959-52050-E1iNCP100,SCP100200511-200712

79959CCOVER, REAR SEAT LEG

main79959-52080-B0supersedes 79959-52060-B0iNCP100,SCP100200511-200712

main79959-52080-E1supersedes 79959-52060-E1iNCP100,SCP100200511-200712

main79959-52100-B0supersedes 79959-52060-B0iNCP100,SCP100200712-201008

main79959-52100-E1supersedes 79959-52060-E1iNCP100,SCP100200511-200712

7227252010CLAMP, SEAT TRACK CONTROL CABLE

main72272-52010

9011910550

main90119-10550

9011910788

main90119-10788

9016740044

main90167-40044

26 parts on this diagram · 6 diagrams in section
