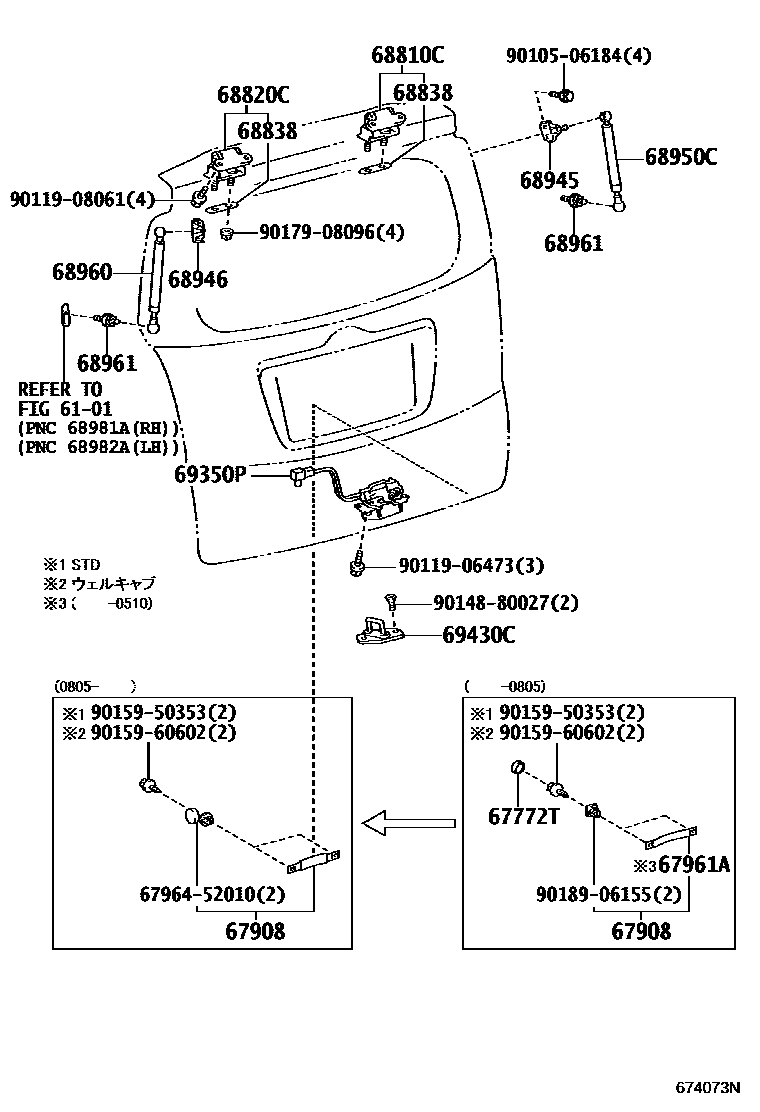

BACK DOOR LOCK & HANDLE

6101

67772TCAP, DOOR TRIM RETAINER

main67772-52010×2iNCP10#,SCP100200712-200805

67908STRAP SUB-ASSY, BACK DOOR PULL

main67908-52010iNCP10#,SCP100200509-200510

main67908-52011iNCP10#,SCP100200510-200712

main67908-52012iNCP10#,SCP100200805-201008

67961ASTRAP, BACK DOOR PULL

main67961-52010iNCP10#,SCP100200509-200510

sub67961-52011

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iNCP10#,SCP100200509-200708

main68810-52080iNCP10#,SCP100200712-201008

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iNCP10#,SCP100200509-200708

main68810-52080iNCP10#,SCP100200709-200712

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020×2iNCP10#,SCP100200511-200712

main68838-52020×2iNCP10#,SCP100200511-200712

main68838-52030×2iNCP10#,SCP100200906

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52060iNCP10#,SCP100200712

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52060iNCP10#,SCP100200712

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W400iNCP10#,SCP100200509-200702

main68950-0W401iNCP10#,SCP100200703-200712

main68950-0W410iNCP10#,SCP100200509-200702

main68950-0W411iNCP10#,SCP100200703-200712

68960STAY ASSY, BACK DOOR, LH

main68960-0W400iNCP10#,SCP100200509-200702

main68960-0W401iNCP10#,SCP100200703-200712

main68960-0W410iNCP10#,SCP100200509-200702

main68960-0W411iNCP10#,SCP100200703-200712

68961BOLT, BACK DOOR STAY

main68961-10030×2iNCP10#,SCP100200605-200712

main68961-20140×2iNCP10#,SCP100200509-200604

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52320iNCP10#,SCP100200712-201008

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-20160iNCP10#,SCP100200509-200712

6796452010

main67964-52010

9010506184

main90105-06184

9011906473

main90119-06473

9011908061

main90119-08061

9014880027

main90148-80027

9015950353

main90159-50353

9015960602

main90159-60602

9017908096

main90179-08096

9018906155

main90189-06155

23 parts on this diagram · 1 diagram in section
