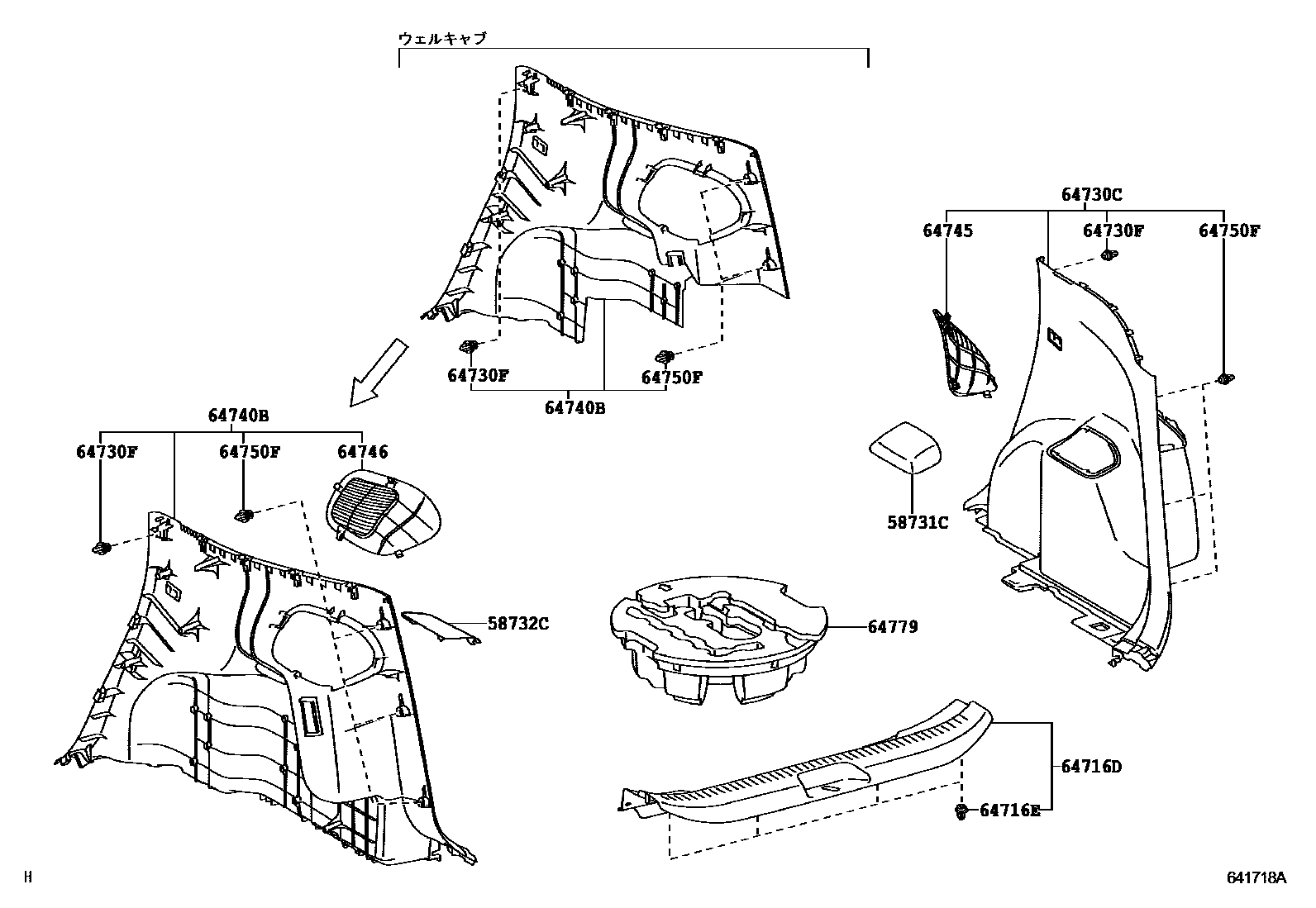

DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-52050-B0iNCP100,SCP100200509-200712

DK.GRAY,TRIM1#,4#

58732CCAP, REAR ABSORBER

main58732-52030-B0iNCP100,SCP100200509-200712

DK.GRAY,TRIM1#,4#

64716DCOVER, DECK TRIM, REAR

main64716-52130-B0iNCP100,SCP100200509-200712

DK.GRAY,TRIM1#,4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161×4iNCP100,SCP100200509-200712

64730CBOARD, DECK TRIM SIDE, RH

main64731-52050-B0iNCP10#,SCP100200712-201008

DK.GRAY,TRIM1#

main64731-52070-B0iSCP100200712-201008

64730FCLAMP(FOR DECK TRIM SIDE BOARD)

main90467-10167×2iNCP100,SCP100200509-200712

64740BBOARD, DECK TRIM SIDE, LH

main64732-52050-B0iNCP100,SCP100200509-200712

DK.GRAY,TRIM1#,4#

main64732-52070-B0iNCP100,SCP100200511-200712

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52110-B0iNCP100,SCP100200509-200712

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52120-B0iNCP100,SCP100200509-200712

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×6iNCP100,SCP100200509-200712

64779TRAY, SPARE WHEEL COVER

main64779-46010iNCP10#,SCP100200509-200712

11 parts on this diagram · 1 diagram in section
