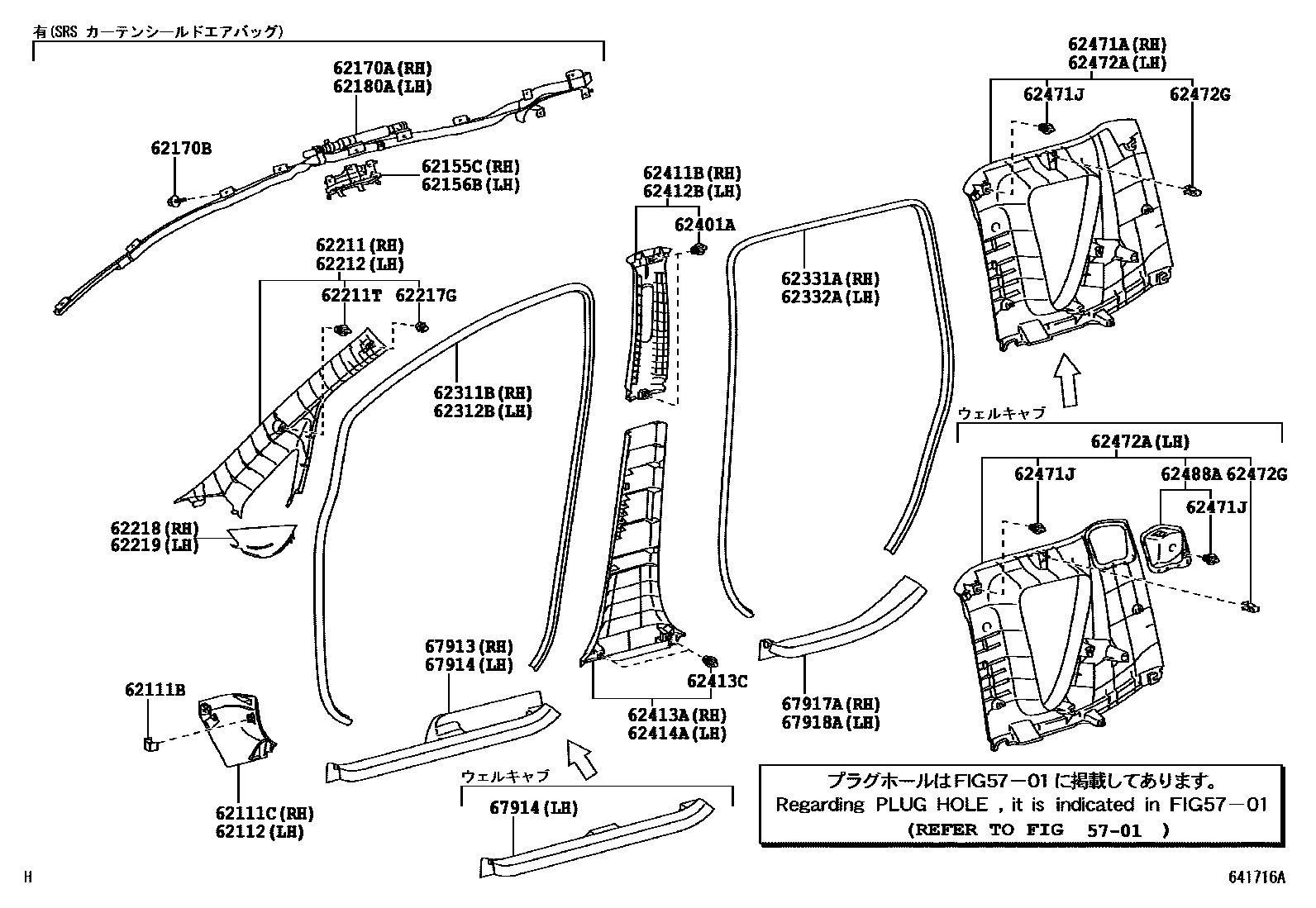

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5701
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
DK.GRAY,TRIM10,11,4#
DK.GRAY,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM10,11,4#
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM10,11,4#
LT.GRAY,TRIM1#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM10,11,4#
LT.GRAY,TRIM1#
62217GCLIP, FRONT PILLAR GARNISH
62218PIECE, FRONT PILLAR GARNISH CORNER, RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,11,4#
62219PIECE, FRONT PILLAR GARNISH CORNER, LH
LT.GRAY,TRIM10,11,4#
LT.GRAY,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,11,4#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,11,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM10,11,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM10,11,4#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM10,11,4#
LT.GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
LT.GRAY,TRIM10,11,4#
LT.GRAY,TRIM1#
62472GCLIP (FOR ROOF SIDE GARNISH)
62488ACOVER, ROOF SIDE INNER GARNISH, LH
67913PLATE, FRONT DOOR SCUFF, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM10,11,4#
67914PLATE, FRONT DOOR SCUFF, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM10,11,4#
67917APLATE, REAR DOOR SCUFF, RH
DK.GRAY,TRIM10,11,4#
DK.GRAY,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
DK.GRAY,TRIM10,11,4#
DK.GRAY,TRIM1#
34 parts on this diagram · 1 diagram in section
