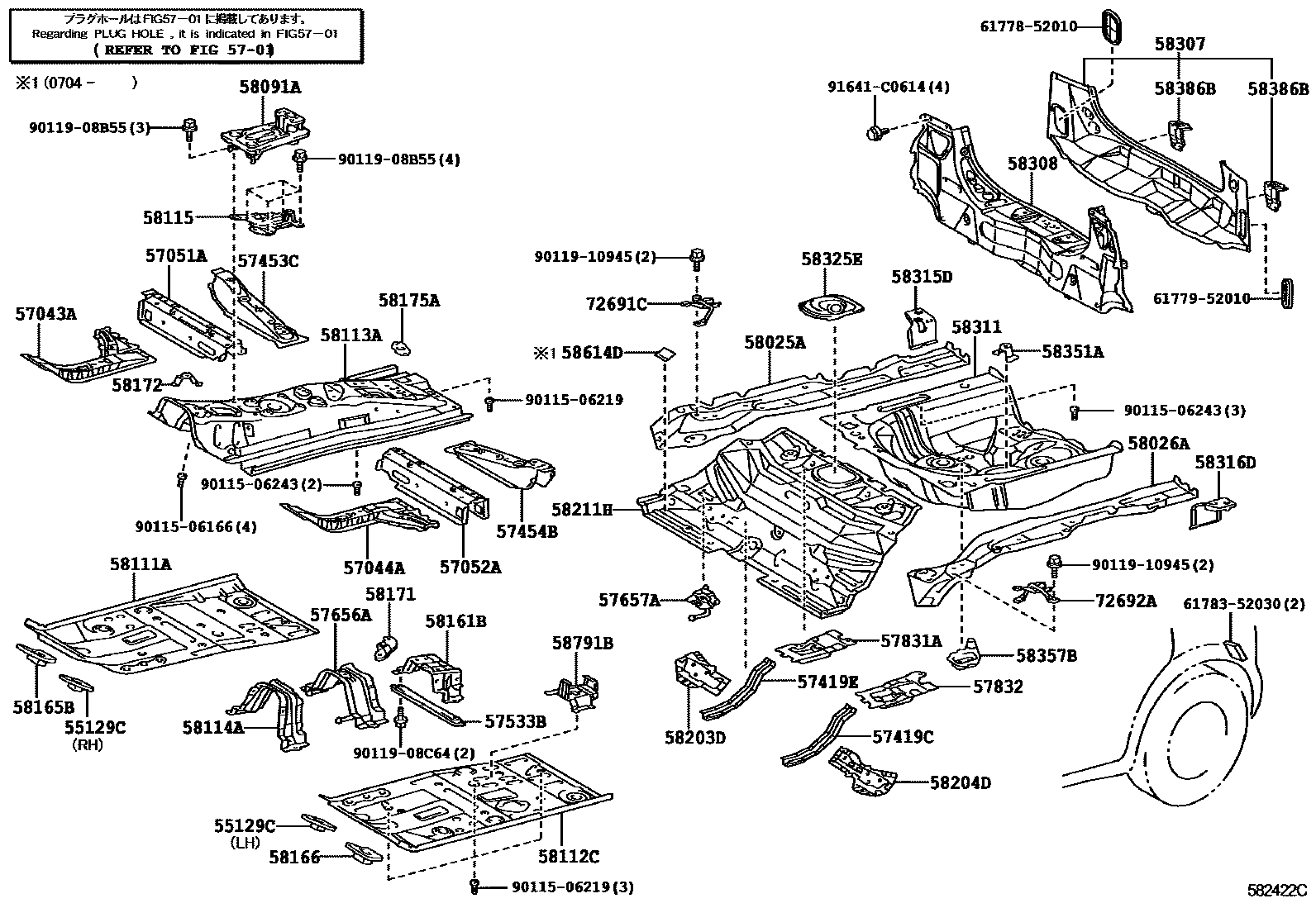

FLOOR PAN & LOWER BACK PANEL
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
sub57043-52021
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
sub57044-52041
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57419CREINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57419EREINFORCEMENT, FRONT FLOOR UNDER, RH NO.2
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58091AREINFORCEMENT SET, BODY FITTING
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
sub58112-52921
58113APANEL, FRONT FLOOR, CENTER
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
sub58161-52070
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH
58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
sub58204-52061
sub58204-52061
sub58204-52061
sub58204-52061
sub58204-52061
sub58204-52061
58211HPAN, CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351ABRACKET, SPARE WHEEL CARRIER
58357BBRACKET, ACTUATOR COVER, NO.3 RH
sub58357-52031
sub58357-52031
sub58357-52031
sub58357-52031
sub58357-52041
58386BBRACKET, REAR BUMPER COVER, NO.2
58614DSHEET, CENTER FLOOR SILENCER, RH
58791BCARRIER, JACK
72691CSTRIKER, RR SEAT CUSHION LOCK, NO.1
72692ASTRIKER, RR SEAT CUSHION LOCK, NO.2
6177852010STRENGTH, QUARTER PANEL HORIZONTAL, LOWER REAR RH
main61778-52010
6177952010STRENGTH, QUARTER PANEL HORIZONTAL, LOWER REAR LH
main61779-52010
6178352030PATCH, QUARTER PANEL INNER
main61783-52030
9011506166
main90115-06166
9011506219
main90115-06219
9011506243
main90115-06243
9011908B55
main90119-08B55
9011908C64
main90119-08C64
9011910945
main90119-10945
91641C0614
main91641-C0614
55 parts on this diagram · 3 diagrams in section
