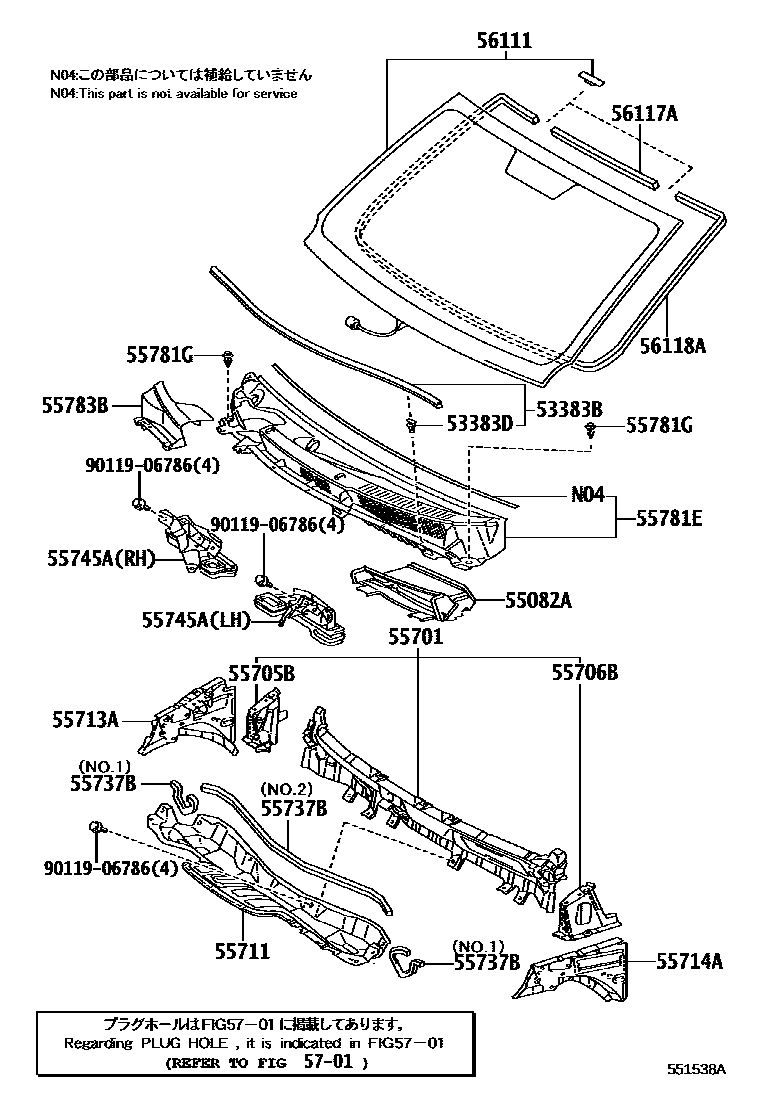

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52090iNCP10#,SCP100200509-200712

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7iNCP10#,SCP100200509-200712

55082ADUCT SUB-ASSY, COWL TO REGISTER, LH

main55082-52020iNCP10#,SCP100200509-200712

55701PANEL SUB-ASSY, COWL

main55700-52230iNCP10#,SCP100200509-200712

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52100iNCP10#,SCP100200712

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52100iNCP10#,SCP100200509-200712

55711PANEL, COWL TOP, OUTER

main55701-52200iNCP10#,SCP100200509-200712

55713APANEL, COWL TOP SIDE, RH

main55703-52260iNCP10#,SCP100200509-200712

55714APANEL, COWL TOP SIDE, LH

main55704-52020iNCP10#,SCP100200509-200712

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52050×2iNCP10#,SCP100200509-200712

main55737-52060iNCP10#,SCP100200712

55745AREINFORCEMENT, COWL TOP, INNER

main55705-52120iNCP10#,SCP100200509-200712

main55706-52120iNCP10#,SCP100200509-200712

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52110supersedes 55708-52070iNCP10#,SCP100200509-200712

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-16010×2iNCP10#,SCP100200509-200712

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52190iNCP10#,SCP100200509-200712

56111GLASS, WINDSHIELD

main56101-52300supersedes 56101-52290iNCP10#,SCP100200509-200712

56117ADAM, WINDOW GLASS ADHESIVE

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

5701

9011906786

main90119-06786

19 parts on this diagram · 1 diagram in section
