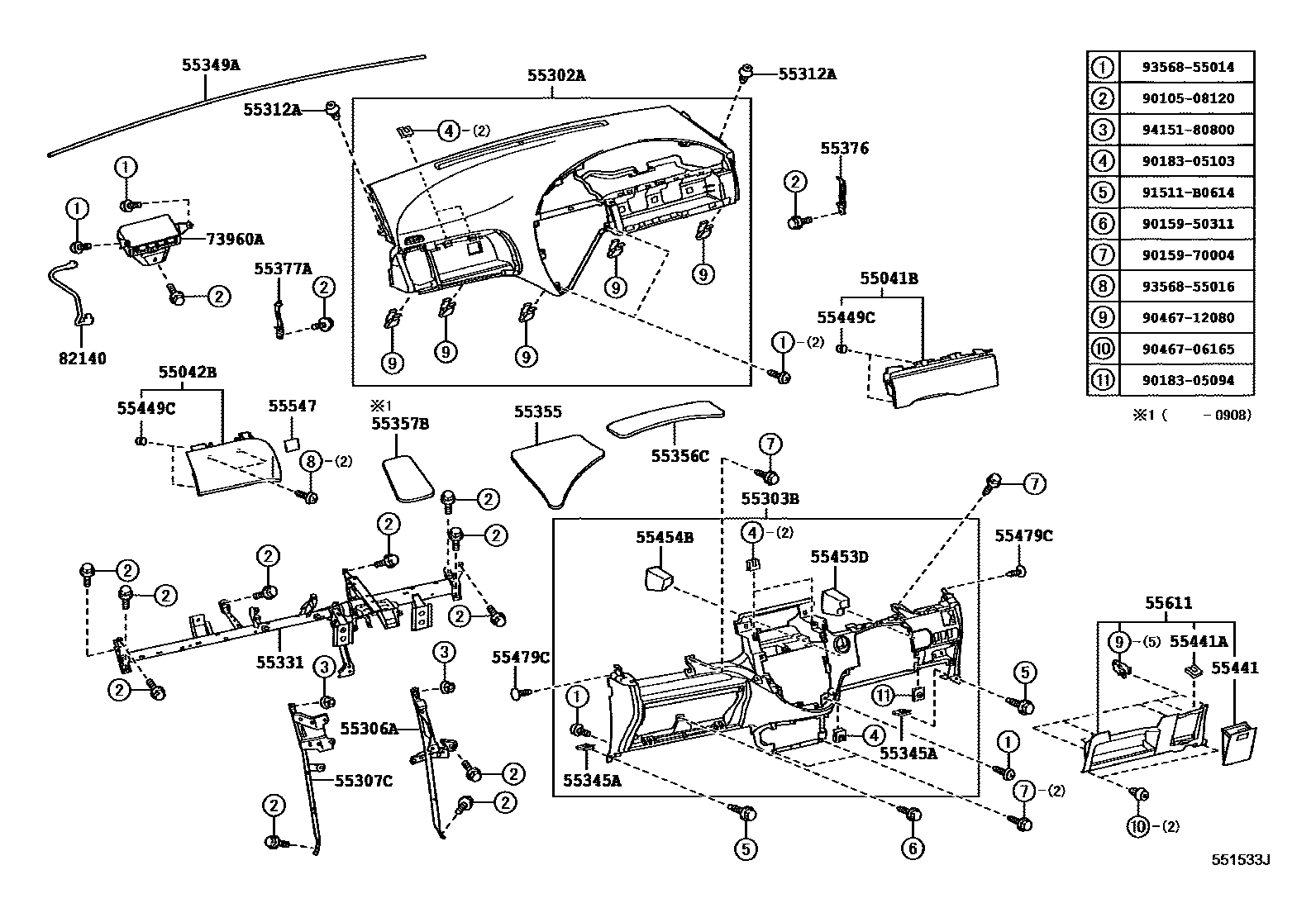

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55041BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1

main55041-52030-B0iNCP10#,SCP100200712-201008

DK.GRAY,TRIM1#

55042BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

main55042-52030-B0iNCP10#,SCP100200509-200712

DK.GRAY,TRIM10,11,4#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52040-B0iNCP10#,SCP100200509-200712

DK.GRAY,TRIM1#,4#

sub55302-52041

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52150-B0iNCP10#,SCP100200509-200712

DK.GRAY,TRIM10,11,4#

sub55303-52151

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52200iNCP10#,SCP100200712

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52030iNCP10#,SCP100200712

55312ACLIP, INSTRUMENT PANEL

main90467-06166-B4×2iNCP10#,SCP100200712-201008

DK.GRAY

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52430iNCP10#,SCP100200509-200712

main55330-52431iNCP10#,SCP100200902

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iNCP10#,SCP100200712

55349ACUSHION, INSTRUMENT PANEL

main55349-52060iNCP10#,SCP100200509-200712

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52130iNCP10#,SCP100200509-200712

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52130iNCP10#,SCP100200712

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52090iNCP10#,SCP100200509-200712

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52080iNCP10#,SCP100200509-200712

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-52030iNCP10#,SCP100200712

55441BOX, INSTRUMENT PANEL

main55441-52110-B0iNCP10#..G200509-200712

DK.GRAY,TRIM1#

55441ASPRING, INSTRUMENT PANEL BOX

main55478-52030iNCP10#,SCP100200509-200712

55449CCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55449-28020×4iNCP10#,SCP100200509-200712

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52070iNCP10#,SCP100200509-200712

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52060iNCP10#,SCP100200509-200712

55479CCLIP(FOR INSTRUMENT LOWER COVER)

main90467-05161-B0×2iNCP10#,SCP100200509-200712

DK.GRAY

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-95J00-B2iNCP10#..G200509-200712

DK.GRAY,TRIM1#

55611TRAY, INSTRUMENT PANEL UNDER

main55611-52130-B0iNCP10#,SCP100200509-200712

DK.GRAY,TRIM10,11,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52060iNCP10#,SCP100200509-200712

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52020iNCP10#,SCP100200509-200712

9010508120

main90105-08120

9015950311

main90159-50311

9015970004

main90159-70004

9018305094

main90183-05094

9018305103

main90183-05103

9046706165

main90467-06165

9046712080

main90467-12080

91511B0614

main91511-B0614

9356855014

main93568-55014

9356855016

main93568-55016

9415180800

main94151-80800

36 parts on this diagram · 4 diagrams in section
