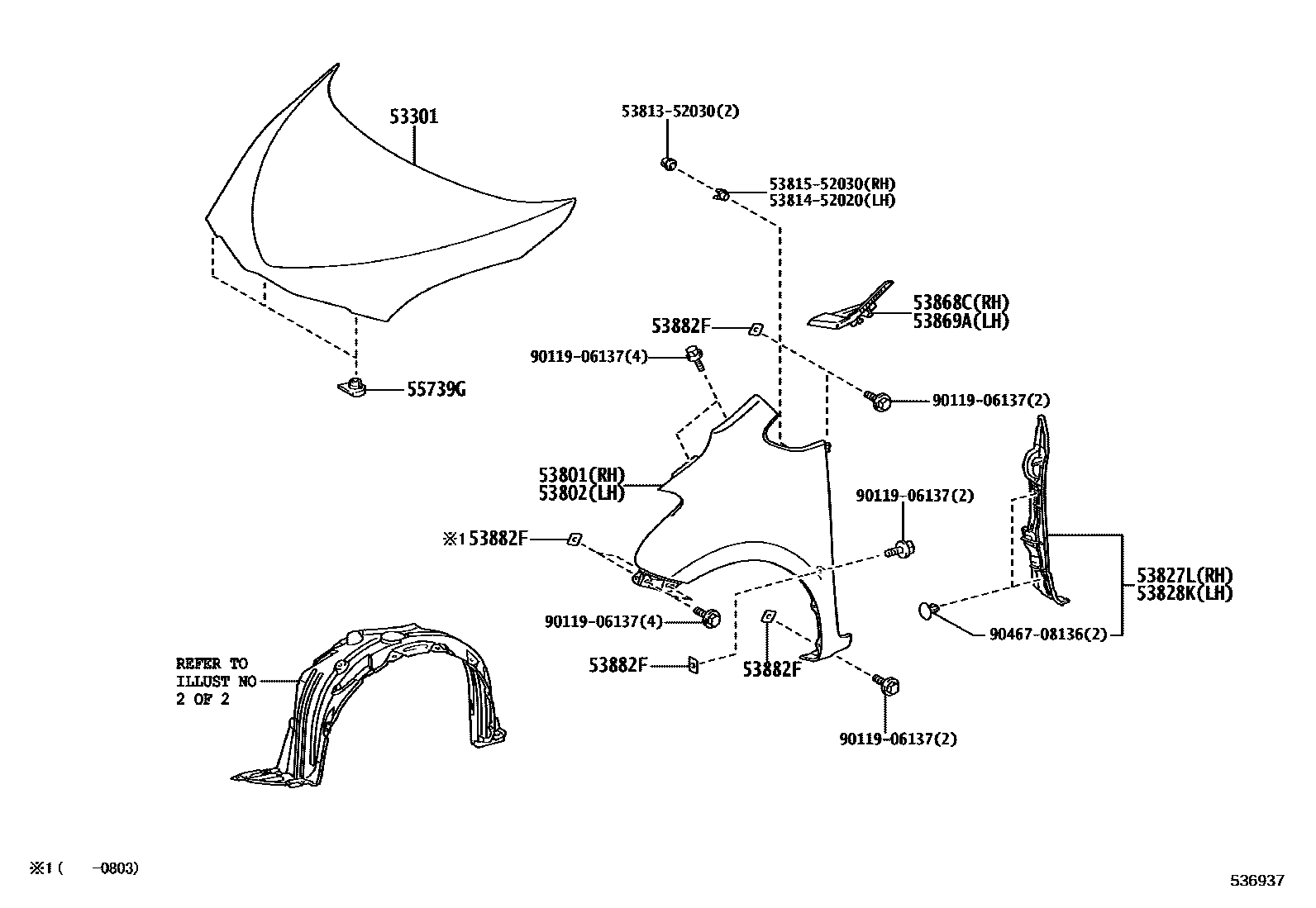

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-52220iNCP10#,SCP100200509-201008

53801FENDER SUB-ASSY, FRONT RH

main53811-52220iNCP10#,SCP100200509-201008

main53811-52250iNCP10#..G200509-201008

53802FENDER SUB-ASSY, FRONT LH

main53812-52220iNCP10#,SCP100200509-201008

main53812-52250iNCP10#..G200509-201008

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52110iNCP10#,SCP100200509-200712

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52130iNCP10#,SCP100200509-200712

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-52040iNCP10#,SCP100200509-200712

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-52050iNCP10#,SCP100200509-200712

53882FSEAL, FRONT FENDER

main53882-16030iNCP10#,SCP100200509-201008

55739GSTOPPER, HOOD

main55738-52060iNCP10#,SCP100200509-200712

5381352030STAY,AIR CLEANER PROTECTOR

main53813-52030

5381452020PACKING, SKIRT PANEL

main53814-52020

5381552030PLATE, MUDGUARD RUBBER SET, FRONT

main53815-52030

9011906137

main90119-06137

9046708136

main90467-08136

14 parts on this diagram · 2 diagrams in section
