REAR BUMPER & BUMPER STAY

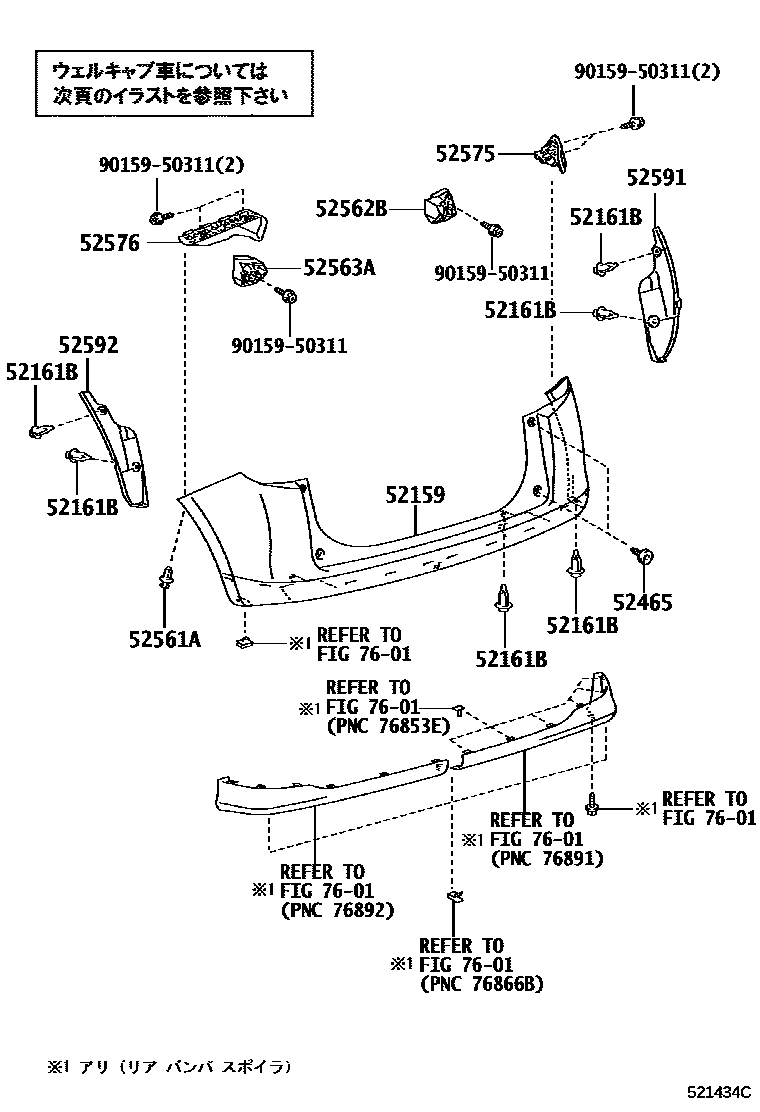

Parts diagram
52159COVER, REAR BUMPER
main52159-52600-A0i200509-200712
WHITE PEARL CS.,064
sub52159-52956
main52159-52600-A1i200509-200712
WHITE,068
sub52159-52956
main52159-52600-A2i200712-201008
SUPER WHITE 2,040
sub52159-52956
main52159-52600-A3i200712-201008
WHITE PEARL CS.,070
sub52159-52956
main52159-52600-B0i200509-201008
SILVER M.M.,1E7
sub52159-52956
main52159-52600-B1i200509-201008
GRAY ME.,1G2
sub52159-52956
main52159-52600-C0i200509-201008
BLACK MC.,209
sub52159-52956
main52159-52600-D0i200509-200712
SUPER RED 5,3P0
sub52159-52956
main52159-52600-D1i200712-201008
RED M.M.,3R3
sub52159-52956
main52159-52600-G0i200509-200712
LT.GREEN ME.,6U5
sub52159-52956
main52159-52600-H0i200601-200604
sub52159-52956
main52159-52600-J0i200509-201008
BLUE ME.,8T4
sub52159-52956
main52159-52600-J1i200608-200703
sub52159-52956
main52159-52600-J2i200712-201008
BLUE ME.,8T7
sub52159-52956
main52159-52600-K0i200901-201008
DEEP AMETHYST M.M.,9AH
sub52159-52956
main52159-52610-A0i200509-200712
sub52159-52963
main52159-52610-A3i200712-201008
sub52159-52963
main52159-52610-B0i200509-201008
sub52159-52963
main52159-52610-B1i200509-201008
sub52159-52963
main52159-52610-C0i200509-201008
sub52159-52963
main52159-52610-D0i200509-200712
sub52159-52963
main52159-52610-D1i200712-201008
sub52159-52963
main52159-52610-J0i200509-200712
sub52159-52963
main52159-52610-J1i200712-201008
sub52159-52963
52161BPIECE, REAR BUMPER
main52161-16010i200712
main52161-16010i200509-200712
main52161-16010i200511-200712
main52161-16010i200511-200712
main52161-16010i200712
main52161-16010i200712
52465CUSHION, REAR BUMPER, NO.1
main52461-52020i200509-200712
52561ACLIP(FOR REAR BUMPER RETAINER)
main90467-05090-B1i200511-200712
sub90467-05090
main90467-05090-B1i200509-200712
sub90467-05090
main90467-05090-B1i200509-200712
sub90467-05090
main90467-05090-B1i200509-201008
DK.GRAY
sub90467-05090
main90467-05090-B1i200511-200712
sub90467-05090
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-52040i200509-200712
main52562-52040i200511-200712
main52562-52040i200511-200712
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-52010i200509-200712
main52563-52010i200511-200712
main52563-52010i200511-200712
52575RETAINER, REAR BUMPER SIDE, RH
main52575-52130i200509-200712
main52575-52130i200511-200712
main52575-52130i200511-200712
52576RETAINER, REAR BUMPER SIDE, LH
main52576-52110i200509-200712
main52576-52110i200511-200712
main52576-52110i200511-200712
52591SEAL, REAR BUMPER SIDE, RH
main52591-52220i200511-200712
main52591-52220i200511-200712
main52591-52220i200509-200712
52592SEAL, REAR BUMPER SIDE, LH
main52592-52210i200511-200712
main52592-52210i200511-200712
main52592-52210i200509-200712
7601
9015950311
main90159-50311

12 parts on this diagram · 2 diagrams in section
