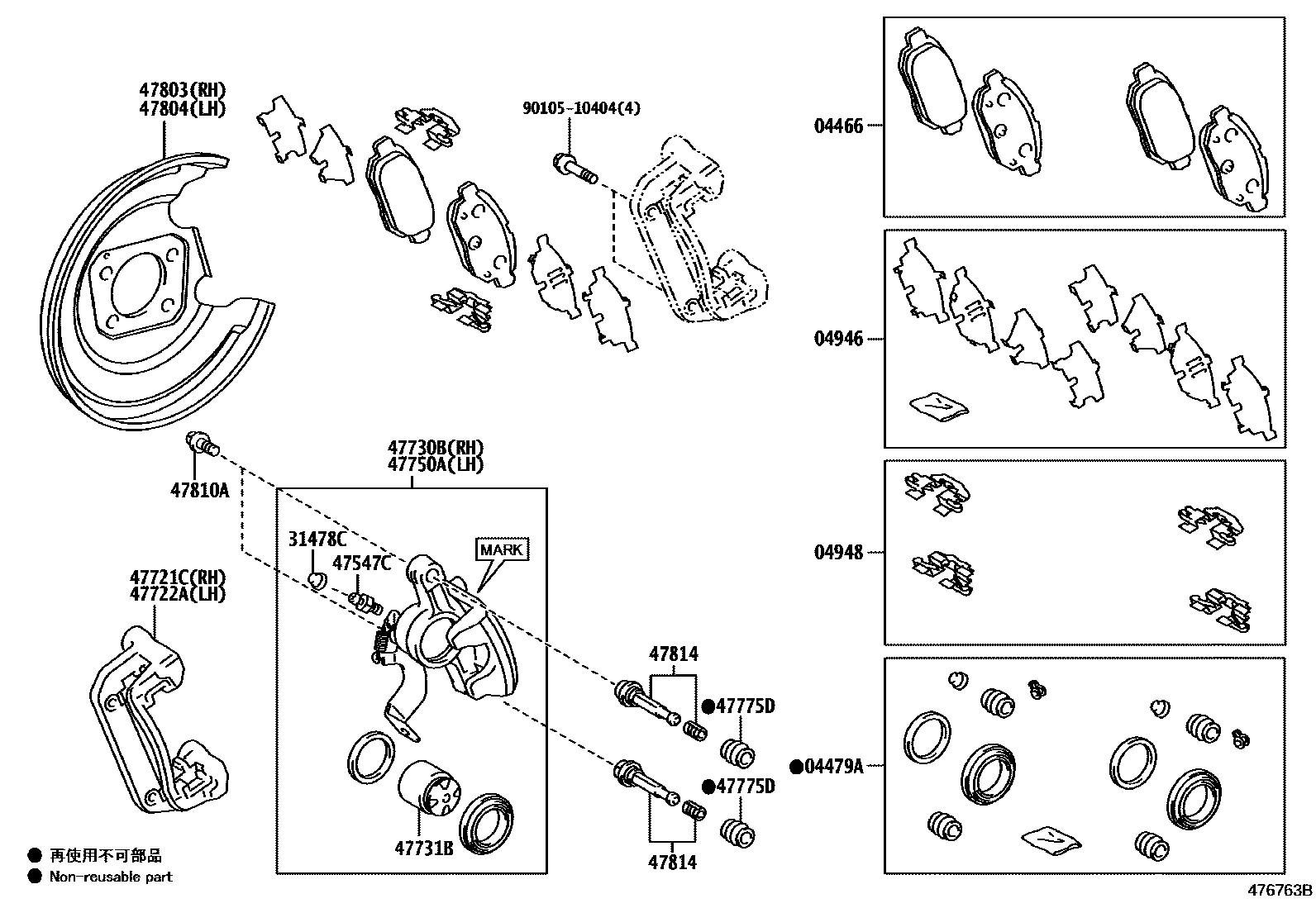

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52120iNCP100200509-200710

sub04466-52121

main04466-52140iNCP100200710-200712

sub04466-52141

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52130iNCP100200509-200609

main04479-52170iNCP100200612-200712

main04479-52190iNCP100200609-200612

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNCP100200612-200712

main04946-52081iNCP100200509-200612

04948FITTING KIT, DISC BRAKE, REAR

main04948-52030iNCP100200509-200612

main04948-52040iNCP100200612-200712

sub04948-12060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iNCP100200712

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iNCP100200712

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iNCP100200612-200710

main47821-12151iNCP100200712

main47821-52051iNCP100200509-200612

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iNCP100200612-200710

main47821-12151iNCP100200712

main47821-52051iNCP100200509-200612

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52090iNCP100200509-200712

main47830-52161iNCP100200810

47731BPISTON, REAR DISC BRAKE

main47831-52090×2iNCP100200509-200712

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52090iNCP100200509-200712

main47850-52161iNCP100200810

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iNCP100200712

main47875-52050×4iNCP100200509-200612

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52010iNCP100200509-200710

main47803-52030iNCP100200710-200712

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52010iNCP100200509-200710

main47804-52030iNCP100200712

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iNCP100200509-200712

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150×4iNCP100200612-200712

main47835-52051×4iNCP100200509-200612

9010510404

main90105-10404

17 parts on this diagram · 1 diagram in section
