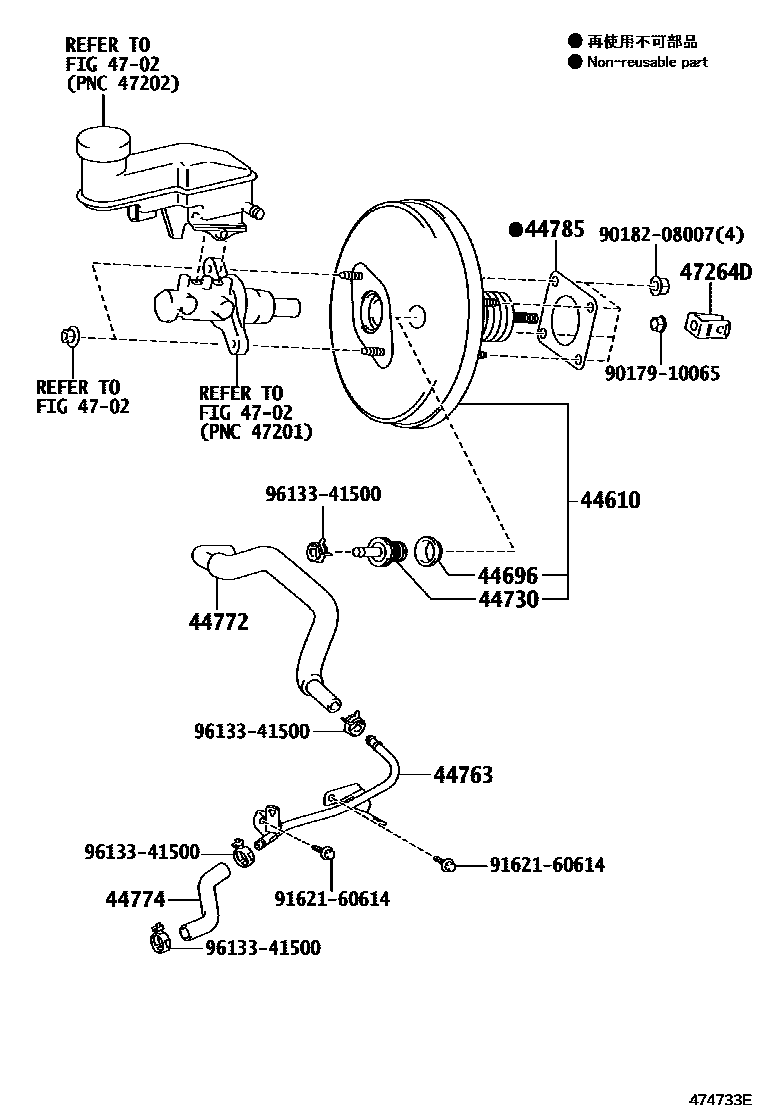

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-52480iNCP10#,SCP100200509-200712

main44610-52500iNCP100200509-200712

44696GROMMET, CHECK VALVE

main90480-24015iNCP10#,SCP100200509-200712

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iNCP10#,SCP100200712

44763TUBE, BOOSTER VACUUM

main44763-52030iNCP100200509-200712

main44763-52080iNCP105200509-200712

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52050iNCP105200509-200712

main44772-52060iNCP100200509-200712

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52070iNCP100200712

main95446-09130iNCP105200712

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP10#,SCP100200509-200712

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iNCP10#,SCP100200509-200712

9017910065

main90179-10065

9018208007

main90182-08007

9162160614

main91621-60614

9613341500

main96133-41500

13 parts on this diagram · 3 diagrams in section
