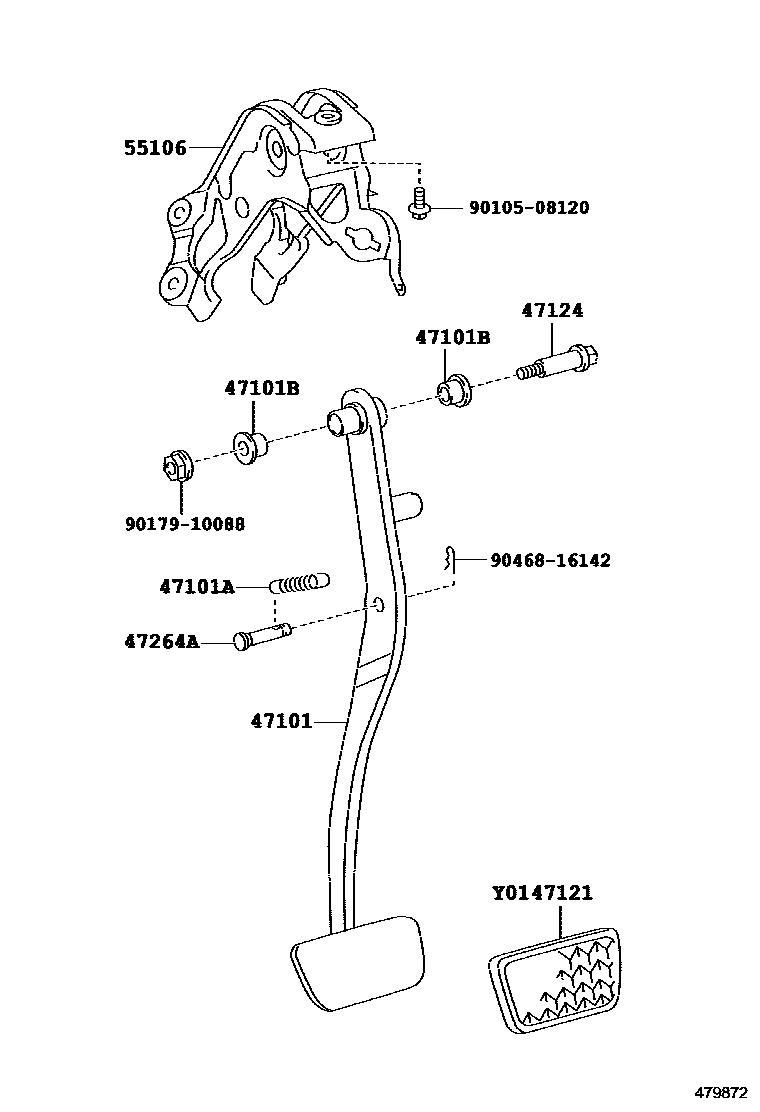

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52240iNCP10#,SCP100200509-200712

sub47101-52241

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP10#,SCP100200509-200712

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNCP10#,SCP100200509-200712

47121PAD, BRAKE PEDAL

main47121-52010iNCP10#,SCP100200509-200712

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP10#,SCP100200509-200712

47264APIN(FOR PUSH ROD)

main90249-08051iNCP10#,SCP100200509-200712

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iNCP10#,SCP100200509-200712

sub55106-52H01

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

10 parts on this diagram · 1 diagram in section
