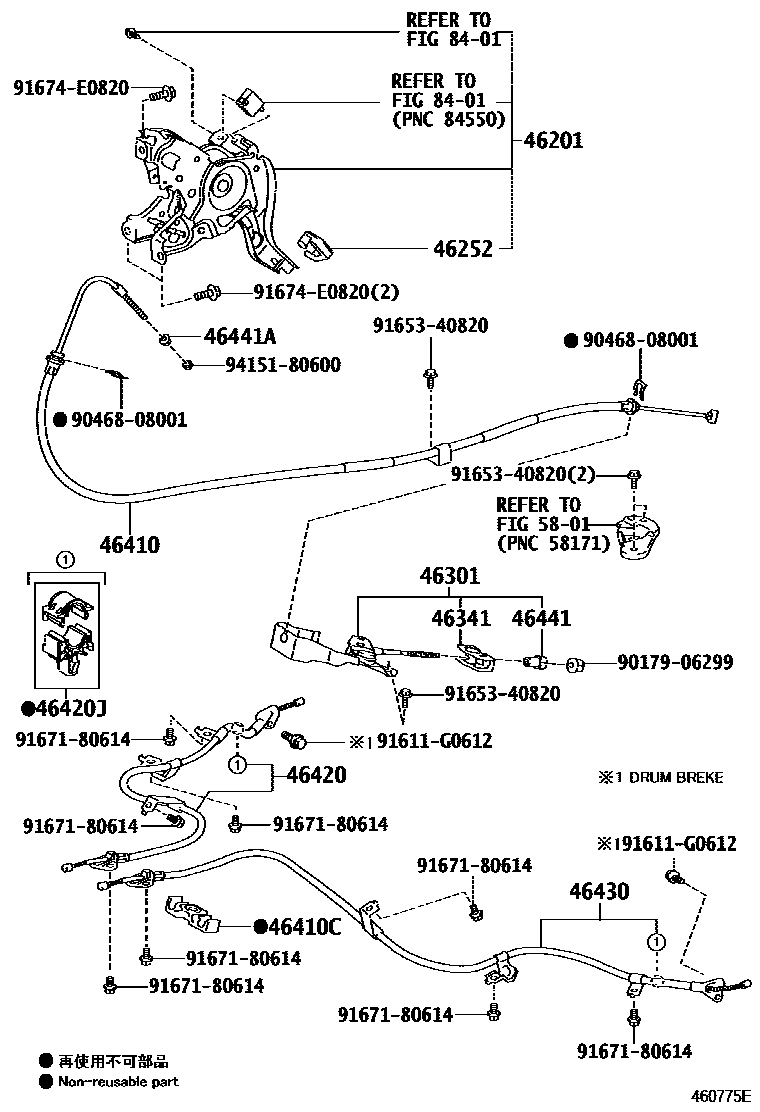

PARKING BRAKE & CABLE

0001 1 0002 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52110iNCP10#,SCP100200509-200712

46252PAD, PARKING PEDAL

main46252-52020iNCP10#,SCP100200509-200712

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-52020iNCP10#,SCP100200509-201008

main46320-52030iNCP100200509-201008

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP10#,SCP100200509-200712

main46341-52030iNCP100200509-200712

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52040iNCP100,SCP100200509-200712

main46410-52050iNCP105200509-200712

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iNCP100,SCP100200509-200712

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52180iNCP100,SCP100200509-201008

main46420-52190iNCP100200509-201008

main46420-52200iNCP105200509-201008

sub46420-52350

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52010iNCP10#,SCP100200509-200706

main46402-52030iNCP10#,SCP100200707-200712

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52180iNCP100,SCP100200509-201008

main46430-52190iNCP100200509-201008

main46430-52200iNCP105200509-201008

sub46430-52340

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP10#,SCP100200509-200712

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNCP10#,SCP100200509-200712

5801

8401

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

91674E0820

main91674-E0820

9415180600

main94151-80600

20 parts on this diagram · 2 diagrams in section
