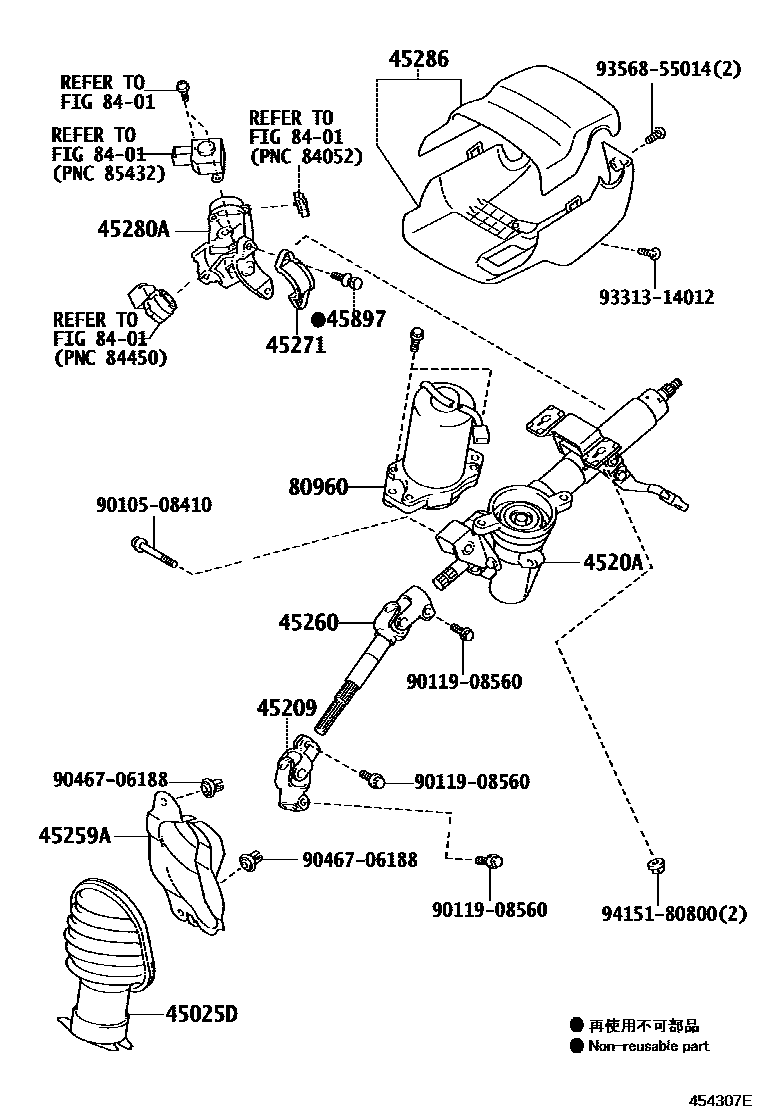

STEERING COLUMN & SHAFT

0001 1 0002 1��(������ ����)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP100,SCP100200509-200712

sub45025-52170

main45025-52160iNCP105200509-200712

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52070iNCP10#,SCP100200509-200712

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52020iNCP105,SCP100..X200712-201008

main4520A-52040iNCP100200509-200712

main4520A-52050iNCP105,SCP100..X200509-200712

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNCP10#,SCP100200509-200712

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52220iNCP10#,SCP100200509-200510

sub45260-52221

sub45209-52070

main45260-52221iNCP10#,SCP100200511-200712

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP10#,SCP100200509-200712

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iNCP10#,SCP100200509-201008

45286COVER, STEERING COLUMN

main45286-52931-B0iNCP105,SCP100..X200509-200712

DK.GRAY,TRIM10,11

main45286-52931-B0iNCP10#,SCP100200712-201008

DK.GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iNCP10#,SCP100200509-200712

80960MOTOR ASSY, POWER STEERING

main80960-52040iNCP10#,SCP100200509-201008

8401

9010508410

main90105-08410

9011908560

main90119-08560

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
