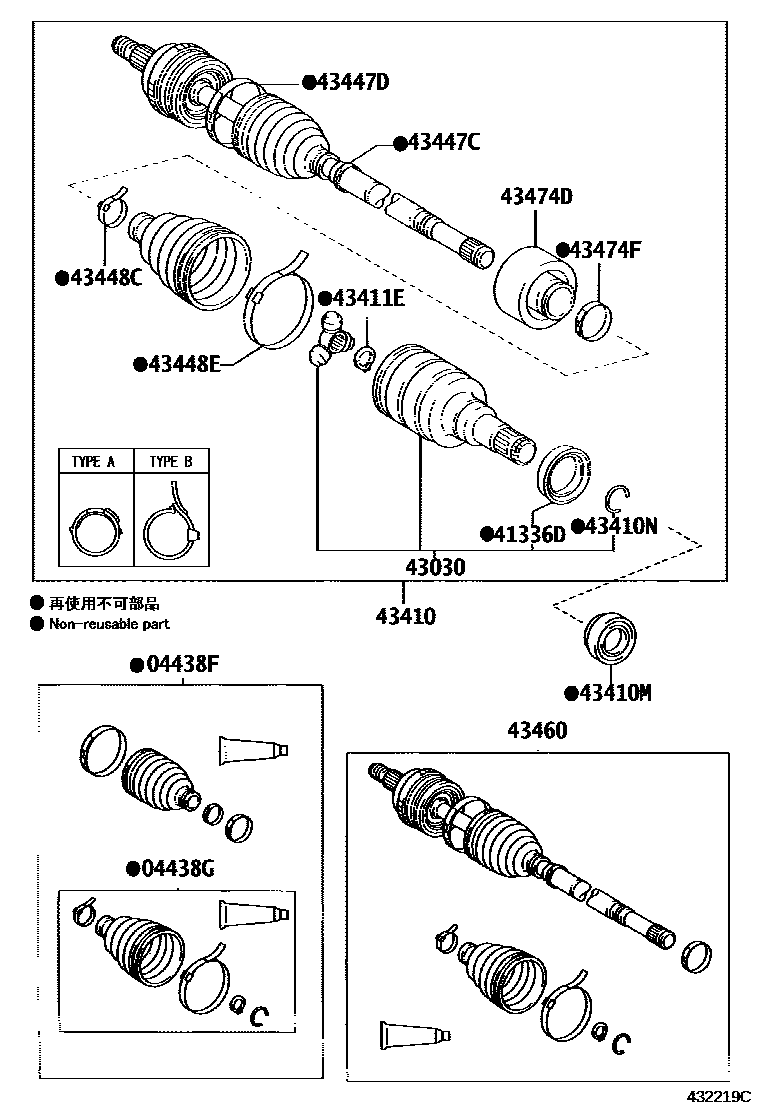

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1��� 0004 1��� 0005 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12530iNCP100¥10,800200712-200909

sub04427-52671¥10,800

main04427-52170iSCP100¥12,000200509-200712

sub04427-52171¥10,000

main04427-52400iNCP100¥10,800200509-200603

sub04427-52500¥10,800

main04427-52500iNCP100¥10,800200604-200712

sub04427-52890¥10,800

main04427-52531iNCP105¥10,800200909-200910

sub04427-52870¥10,800

main04427-52540iNCP105¥10,800200509-200712

sub04427-52542¥10,800

main04427-52671iNCP100¥10,800200909-200910

sub04427-52890¥10,800

main04427-52680iNCP105¥10,800200712-200909

sub04427-52531¥10,800

main04427-52690iSCP100¥10,800200712

sub04427-52691¥9,000

main04427-52870iNCP105¥10,800200911-201003

sub04427-52871¥10,800

main04427-52871iNCP105¥10,800201003

sub04427-52872¥10,800

main04427-52890iNCP100¥10,800200911-201002

sub04427-52891¥9,000

main04427-52891iNCP100¥9,000201003

sub04427-52897¥9,000

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52140iSCP100¥5,500200509-200712

main04437-52190iNCP100¥6,700200509-200909

sub04437-52191¥5,500

main04437-52191iNCP100¥5,500200909

main04437-52441iNCP105¥6,700200909

main04438-52230iNCP105¥6,700200509-200909

sub04437-12400¥5,500

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP100,SCP100¥130200509-200712

main41336-52020iNCP105¥250200509-200712

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-52050iNCP105¥32,700200509-200712

main43403-10011iNCP100¥19,500200509-200712

sub43403-0W031¥16,200

main43403-16020iSCP100¥19,400200509-200712

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52190iSCP100¥82,800200509-201003

sub43410-52191¥82,800

main43410-52191iSCP100¥82,800201004-201008

main43410-52210iNCP100¥68,900200509-201008

sub43410-52211¥52,100

main43410-52220iNCP105¥82,800200509-201008

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNCP100,SCP100¥270200509-201008

main90316-28003iNCP105¥450200509-201008

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iNCP105¥110200509-200712

main90521-26004iNCP100,SCP100¥100200509-200712

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-16020iSCP100¥60200509-200712

main90520-22001iNCP100¥110200509-200712

sub90520-22029¥90

main90520-22005iNCP105¥100200509-200712

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16170iSCP100¥360200712

sub42345-52240¥280

main42345-16170iSCP100¥360200509-200712

sub42345-52240¥280

main42345-52240iSCP100¥280200809

main42345-52260iNCP105¥220200509-200809

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52180iSCP100¥480200509-200712

sub42345-52230¥430

main42345-52180iSCP100¥480200712

sub42345-52230¥430

main42345-52230iSCP100¥430200809

main42345-52250iNCP100¥330200509-200809

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16140iSCP100¥250200509-200712

main90949-01078iNCP10#¥80200509-200712

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iNCP105¥300200509-200712

main42345-16150iSCP100¥330200509-200712

main90949-01146iNCP100¥350200509-200712

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59325iSCP100¥56,300200509-201004

sub43460-59326¥56,300

main43460-59326iSCP100¥56,300201004

main43460-59415iNCP100¥55,800200509-200909

sub43460-59416¥55,800

main43460-59416iNCP100¥55,800200909

sub43460-59666¥49,900

main43460-59425iNCP105¥46,300200509-200909

sub43460-59426¥46,300

main43460-59426iNCP105¥46,300200909

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCP100¥4,640200509-200712

main43474-52050iNCP105¥4,210200509-200712

sub43474-52120¥4,210

main43474-52060iSCP100¥3,940200509-200712

sub43474-52100¥3,280

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNCP10#,SCP100¥700200509-200712

15 parts on this diagram · 5 diagrams in section
