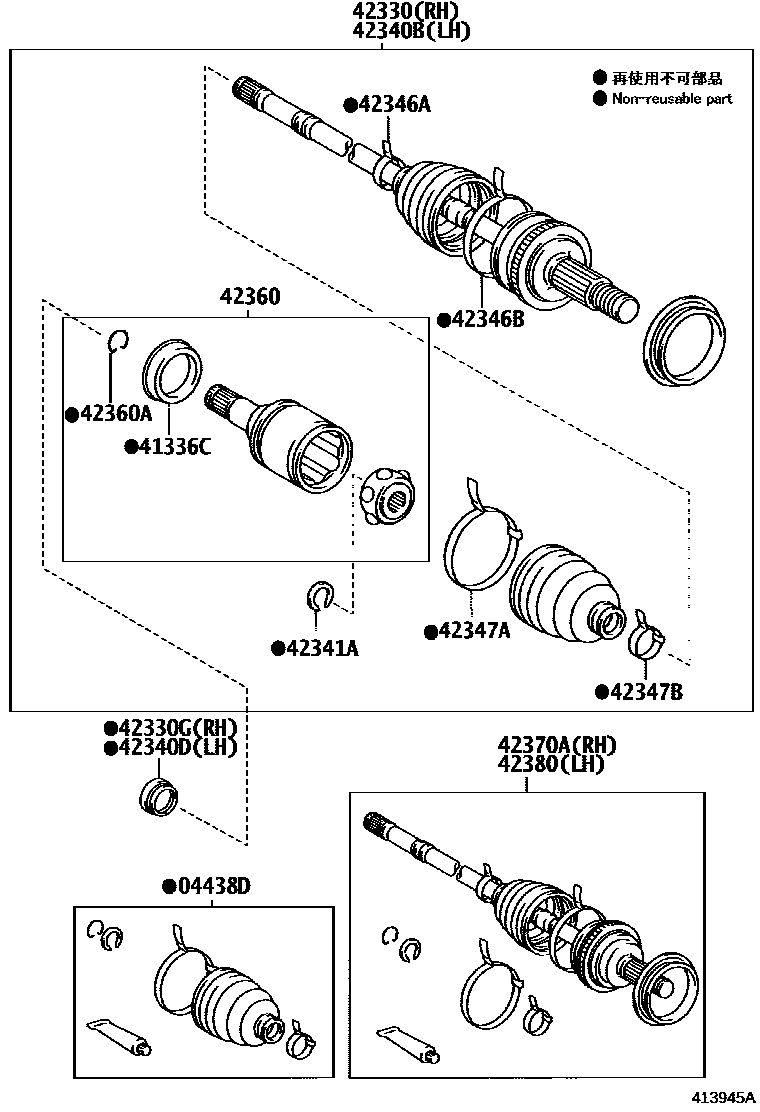

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04439-52020iNCP105¥6,700200509-200902

sub04439-52050¥6,700

main04439-52050iNCP105¥6,700200902

sub04439-52051¥5,500

41336CCOVER, DUST(FOR REAR DRIVE SHAFT)

main41336-28050iNCP105¥200200509-200712

42330SHAFT ASSY, REAR DRIVE, RH

main42340-52010iNCP105¥61,800200509-200712

sub42340-52011¥61,800

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-37004iNCP105¥350200509-201008

sub90311-37007¥350

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-52010iNCP105¥61,800200509-200712

sub42340-52011¥61,800

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-37004iNCP105¥350200509-201008

sub90311-37007¥350

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-21020iNCP105¥170200509-200712

sub43425-48040¥40

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-52200iNCP105¥360200509-200712

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-52190iNCP105¥460200509-200712

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-12120iNCP105¥220200509-200712

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-12130iNCP105¥160200509-200712

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-52010iNCP105¥9,100200509-200712

42360ARING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)

main90520-19018iNCP105¥70200509-200712

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-59125iNCP105¥50,200200509-200712

sub42370-59126¥50,200

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42370-59125iNCP105¥50,200200509-200712

sub42370-59126¥50,200

15 parts on this diagram · 3 diagrams in section
