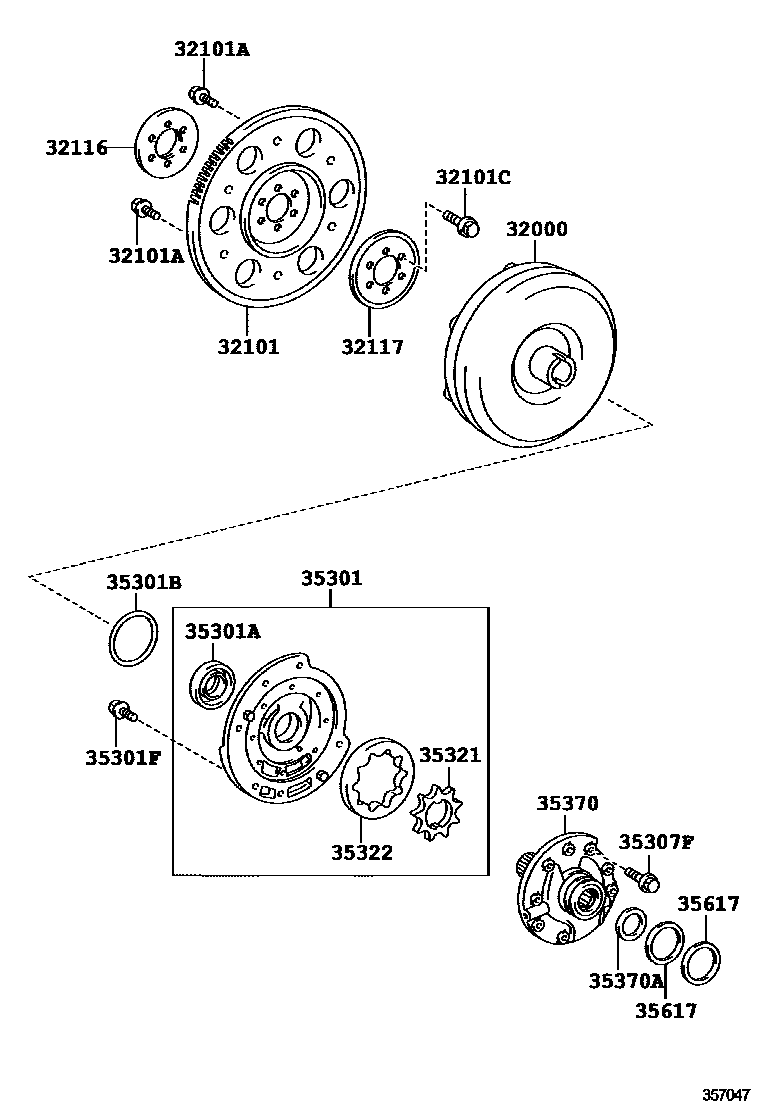

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-52040iNCP105200509-200612

main32000-52041iNCP105200612-200712

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCP105200509-200712

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNCP105200712-200810

main90109-08113iNCP105200811

main90119-08269×5iNCP105200509-200712

main90119-08498×5iNCP105200811

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iNCP105200509-200712

main90105-A0022×6iNCP105200712-201003

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCP105200509-200712

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCP105200509-200712

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040iNCP105200509-200712

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCP105200509-200712

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99124iNCP105200509-200712

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301×7iNCP105200509-200712

35307FBOLT (FOR STATOR SHAFT)

main90148-60027×10iNCP105200712

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52060iNCP105200712

main35321-52070iNCP105200712

main35321-52080iNCP105200712

main35321-52090iNCP105200509-200712

main35321-52100iNCP105200509-200712

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52060iNCP105200509-200712

main35322-52070iNCP105200712

main35322-52080iNCP105200712

main35322-52090iNCP105200509-200712

main35322-52100iNCP105200509-200712

35370SHAFT ASSY, STATOR

main35370-52030iNCP105200509-200601

main35370-52070iNCP105200601-200712

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCP105200509-200712

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010×2iNCP105200509-200612

main35613-52020×2iNCP105200612-200712

16 parts on this diagram · 1 diagram in section
