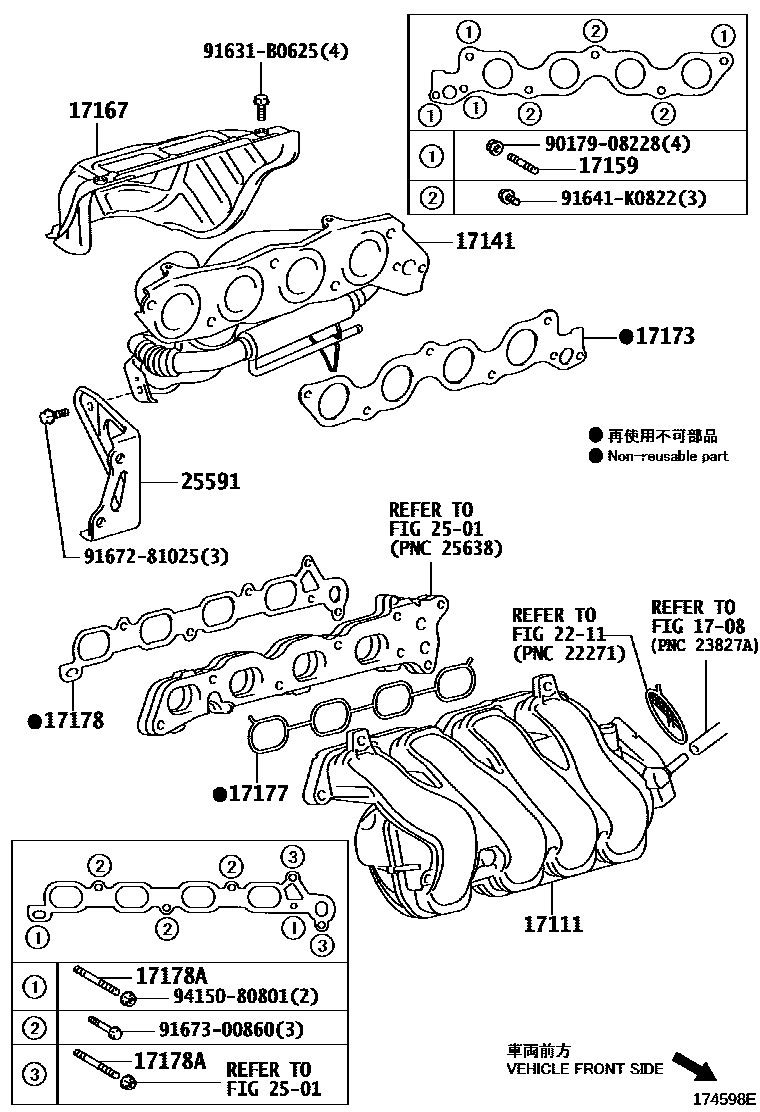

MANIFOLD

0001 1 0002 1 0003 1

1708

17111MANIFOLD, INTAKE

main17101-21070i1NZFE..NCP100200712

sub17101-21071

sub90339-03017

main17101-21080i1NZFE..NCP105200509-200712

main17101-23030i2SZFE..SCP100200509-200712

17141MANIFOLD, EXHAUST

main17104-21030i1NZFE..NCP100200509-200712

main17140-21030i1NZFE..NCP105200712

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08387×2i2SZFE..SCP100200712

main90116-08395×2i2SZFE..SCP100200509-200712

main90126-08026×2i1NZFE..NCP105200509-200712

main90126-08037×4i1NZFE..NCP105200509-200712

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NCP100200509-200712

main17167-21120i1NZFE..NCP105200509-200703

main17167-21160i1NZFE..NCP105200703-200712

main17167-23030i2SZFE..SCP100200712

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFE..NCP105200509-200712

main17173-21030i1NZFE..NCP100200509-200712

main17173-23010i2SZFE..SCP100200509-200712

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21020i1NZFE..NCP105200509-200712

main17177-21030i1NZFE..NCP100200712

main17177-23010i2SZFE..SCP100200509-200712

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-21010i1NZFE..NCP100200509-200712

main17178-23020i2SZFE..SCP100200509-200712

17178ASTUD, HEX LOBULAR(INTAKE MANIFOLD TO HEAD GASKET)

main90126-08049×4i1NZFE..NCP100200712

2211

2501

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE..NCP100200509-200712

9017908228

main90179-08228

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167300860

main91673-00860

9415080801

main94150-80801

18 parts on this diagram · 3 diagrams in section
