WATER PUMP

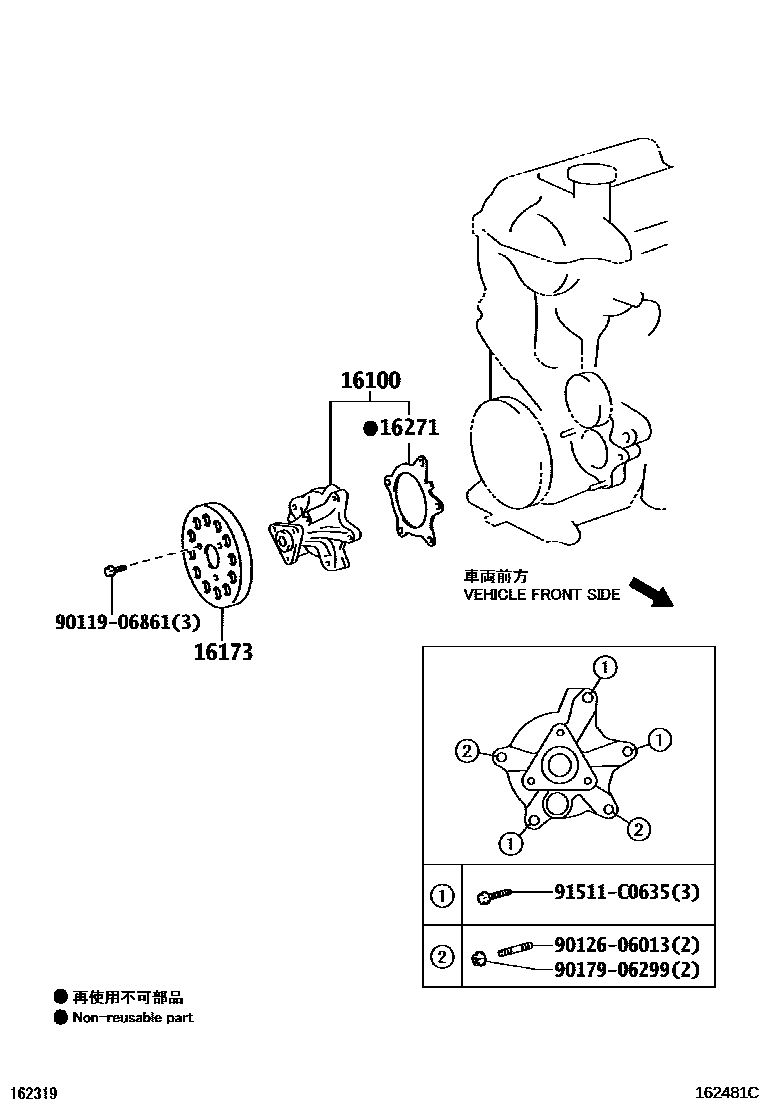

Parts diagram
16100PUMP ASSY, ENGINE WATER
main16100-29116i200509-200704
sub16100-29117
main16100-29117i200705-200712
main16100-29156i200509-200712
sub16100-29157
main16100-29206i200509-200907
sub16100-29156
16173PULLEY, WATER PUMP
main16173-21020i200509-200712
sub16173-21021
main16173-23040i200509-200712
16271GASKET, WATER PUMP
main16271-21020i200509-200712
sub16271-21021
main16271-23020i200509-200805
sub16271-23030
main16271-23030i200805
9011906861
main90119-06861
9012606013
main90126-06013
9017906299
main90179-06299
91511C0635
main91511-C0635

7 parts on this diagram · 2 diagrams in section
