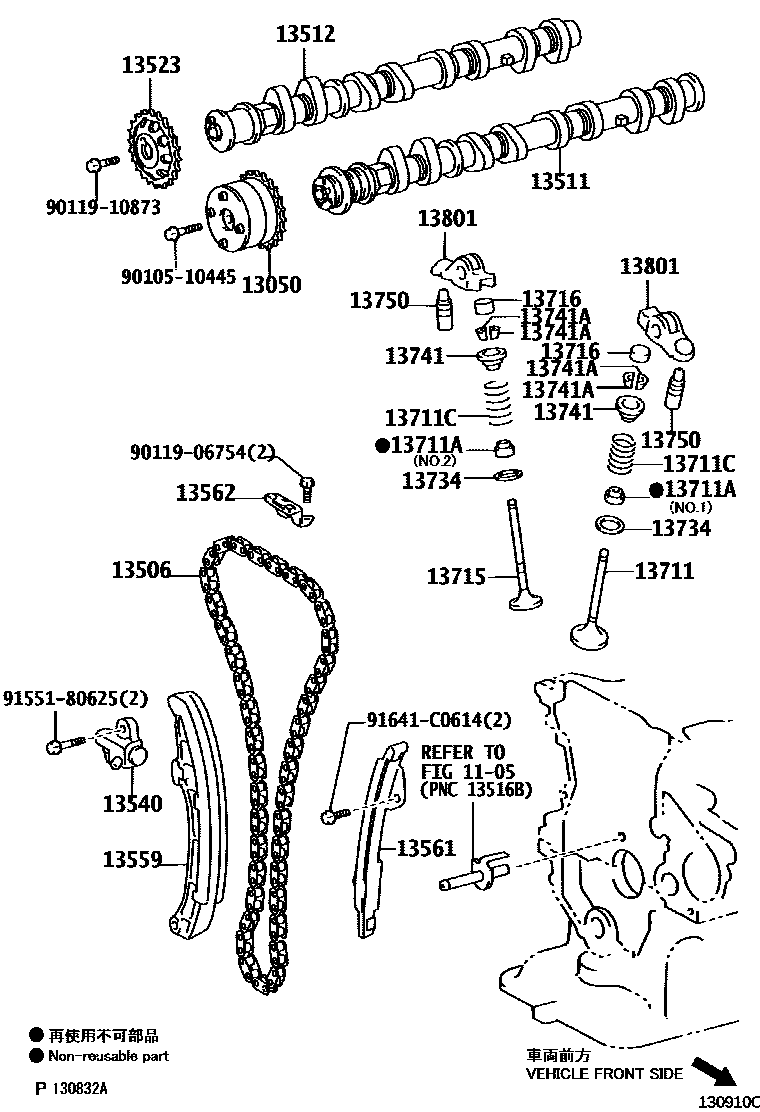

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-21040i1NZFE..NCP105200509-200602

main13050-21041i1NZFE..NCP105200602-200712

main13050-21060i1NZFE..NCP100200712

sub13050-21061

13506CHAIN SUB-ASSY

main13506-21020i1NZFE..NCP105200712

sub13506-21050

sub13506-40010

main13506-21060i1NZFE..NCP100200712

sub13506-21061

main13506-23030i2SZFE..SCP100200509-200712

13511CAMSHAFT

main13501-21030i1NZFE..NCP105200712

main13501-21051i1NZFE..NCP100200712

sub13501-21052

main13501-23040i2SZFE..SCP100200509-200712

main13501-23041i2SZFE..SCP100201001

13512CAMSHAFT, NO.2

main13502-21031i1NZFE..NCP105200712

main13502-21041i1NZFE..NCP100200509-200712

sub13502-21042

main13502-23020i2SZFE..SCP100200509-200712

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i1NZFE..NCP10#200712

main13523-23040i2SZFE..SCP100200509-200712

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21020i1NZFE..NCP10#200509-200712

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZFE..NCP10#200509-200712

sub13559-21030

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21010i1NZFE..NCP105200509-200712

sub13561-21040

main13561-21020i1NZFE..NCP100200509-200712

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-21010i1NZFE..NCP100200509-200712

main13562-23010i2SZFE..SCP100200509-200712

13711VALVE, INTAKE

main13711-21010×8i1NZFE..NCP105200509-200712

main13711-21040×8i1NZFE..NCP100200509-200712

main13711-23050×8i2SZFE..SCP100200509-200712

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02092×8i1NZFE..NCP105200712

sub90913-02128

main90913-02093×8i1NZFE..NCP105200509-200712

main90913-02101×8i1NZFE..NCP100200509-200712

main90913-02112×8i1NZFE..NCP100200509-200712

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-29052×16i2SZFE..SCP100200712

main90501-32053×16i1NZFE..NCP100200712

main90905-01049×16i1NZFE..NCP105200712

sub90501-27040

main90905-01088×16i2SZFE..SCP100200509-200712

13715VALVE, EXHAUST

main13715-21010×8i1NZFE..NCP105200509-200712

main13715-21040×8i1NZFE..NCP100200509-200712

main13715-23040×8i2SZFE..SCP100200509-200712

13716CAP, VALVE STEM

main13716-75020×16i1NZFE..NCP100200509-200712

13734SEAT, VALVE SPRING

main13734-62020×16i1NZFE..NCP100200509-200712

main13734-74010×16i1NZFE..NCP105200509-200712

13741RETAINER, VALVE SPRING

main13741-20021×16i1NZFE..NCP100200712

main13741-22021×16i1NZFE..NCP105200509-200712

main13741-23041×16i2SZFE..SCP100200509-200712

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i1NZFE..NCP100200509-200712

main90913-03031×32i1NZFE..NCP105200712

main90913-03034×32i2SZFE..SCP100200712

13750ADJUSTER ASSY, VALVE LASH

main13750-0W030×16i1NZFE..NCP100200509-200712

sub13750-31030

sub13750-75020

main13750-21010×16i1NZFE..NCP100201006

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011×16i1NZFE..NCP100200509-200712

main13801-47010×16i1NZFE..NCP100201007

sub13801-36020

9010510445

main90105-10445

9011906754

main90119-06754

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614

25 parts on this diagram · 3 diagrams in section
