CRANKSHAFT & PISTON

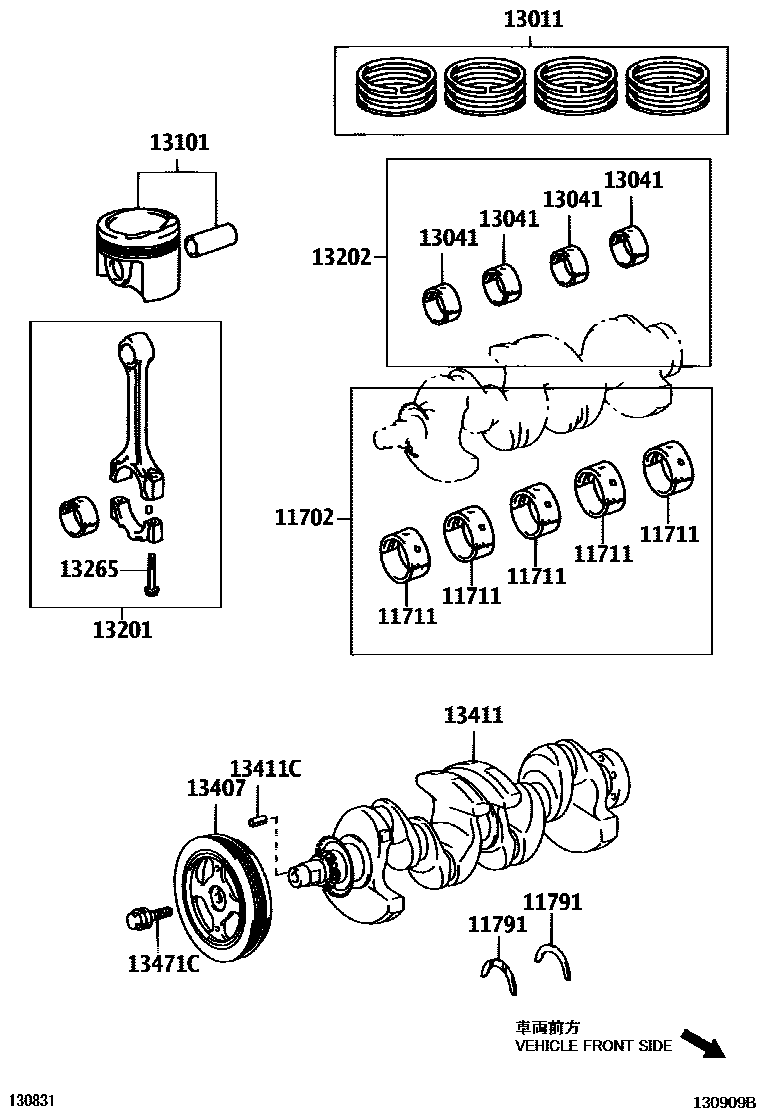

Parts diagram
11702BEARING SET, CRANKSHAFT
main11704-21031i200509-200712
sub11704-21032
main11704-23051i200509-200602
sub11704-23060
main11704-23060i200602-200604
sub11704-23061
main11704-23061i200605-200712
11711BEARING, CRANKSHAFT
main11701-21031-01i200509-200712
sub11701-21032
main11701-21031-02i200509-200712
sub11701-21032
main11701-21031-03i200509-200712
sub11701-21032
main11701-21031-04i200509-200712
sub11701-21032
main11701-23051-02i200509-200602
sub11701-23060
main11701-23051-03i200509-200602
sub11701-23060
main11701-23051-04i200509-200602
sub11701-23060
main11701-23051-05i200509-200602
sub11701-23060
main11701-23060-02i200602-200605
sub11701-23061
main11701-23060-03i200602-200605
sub11701-23061
main11701-23060-04i200602-200605
sub11701-23061
main11701-23060-05i200602-200605
sub11701-23061
main11701-23061-02i200605-200712
main11701-23061-03i200605-200712
main11701-23061-04i200605-200712
main11701-23061-05i200605-200712
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-22020i200509-201008
main11791-23020i200509-200602
sub11791-23030
main11791-23030i200602-200712
main11792-22020i200509-201008
main11792-23020i200509-200602
sub11792-23030
main11792-23030i200602-200712
main11793-22020i200509-201008
main11793-23020i200509-200602
sub11793-23030
main11793-23030i200602-200712
13011RING SET, PISTON
main13011-21041i200509-200712
sub13011-21120
main13011-21090i200509-200806
sub13011-21091
main13011-21091i200806
main13011-23070i200509-200602
sub13011-23071
main13011-23071i200602-201003
sub13011-23072
main13011-23072i201003-201010
sub13011-23073
13041BEARING, CONNECTING ROD
main13041-21022-01i200509-200712
sub13041-21023
main13041-21022-02i200509-200712
sub13041-21023
main13041-21022-03i200509-200712
sub13041-21023
main13041-23031i200509-200712
13101PISTON SUB-ASSY, W/PIN
main13101-21070i200509-200712
sub13101-21160
main13101-21120i200509-200712
main13101-23030i200509-201002
sub13101-23031
main13101-23031i201002
13201ROD SUB-ASSY, CONNECTING
main13201-23030i200509-200712
main13201-29735i200509-200712
sub13201-29736
13202BEARING SET, CONNECTING ROD
main13204-21022i200509-200712
sub13204-21023
main13204-23031i200509-200712
13265BOLT, CONNECTING ROD
main13265-21020i200509-200712
main13265-23010i200509-200712
13407DAMPER SUB-ASSY, CRANKSHAFT
main13407-21031i200509-200712
sub13407-21032
13411CRANKSHAFT
main13401-21020i200509-200712
main13411-23020i200509-200712
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
main90254-03025i200509-200712
sub90250-03095
13471PULLEY, CRANKSHAFT
main13470-23030i200509-200712
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12308i200509-200810
sub90105-12382
main90105-12382i200810
main90119-12345i200509-200712

14 parts on this diagram · 2 diagrams in section
